Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following components from the vehicle:
    1. 1.1. The center body mount bolt (1)
    2. 1.2. The lock washer
    3. 1.3. The washer
  2. Remove the center lower body-cushion assemblies (4).
  3. Remove the following components from the assist step:
    1. 3.1. The center bolt (2)
    2. 3.2. The lock washer
    3. 3.3. The washer

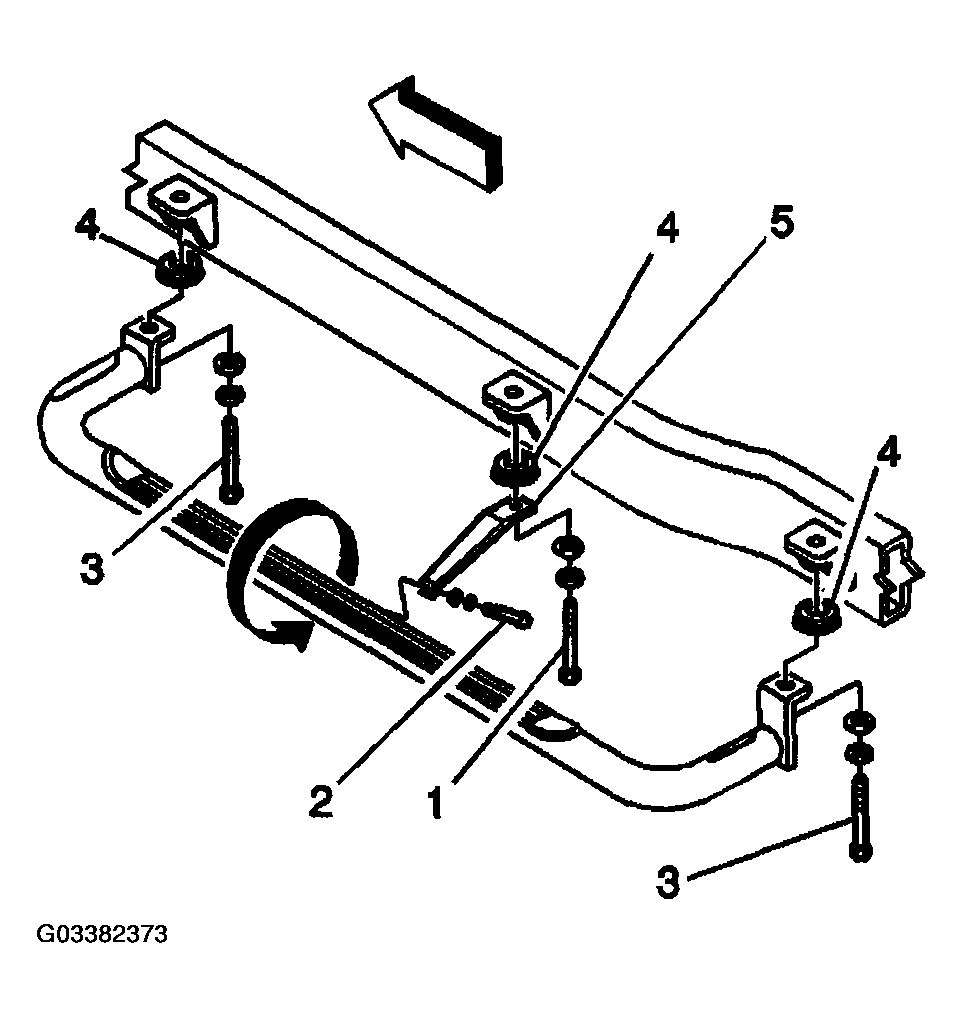

      Fig 1: Removing Center Lower Body-Cushion Assemblies
      G03382373Courtesy of GENERAL MOTORS CORP.
  4. Remove the assist step center bracket (5).
  5. With an assistant, remove the following front components, and rear components:
    1. 5.1. The body mount bolts (1)
    2. 5.2. The lock washers (2)
    3. 5.3. The washers (3)
  6. With an assistant, remove the assist step assembly from the vehicle.
  7. Remove the lower body-mount cushion assemblies (4), front and rear, from the vehicle.

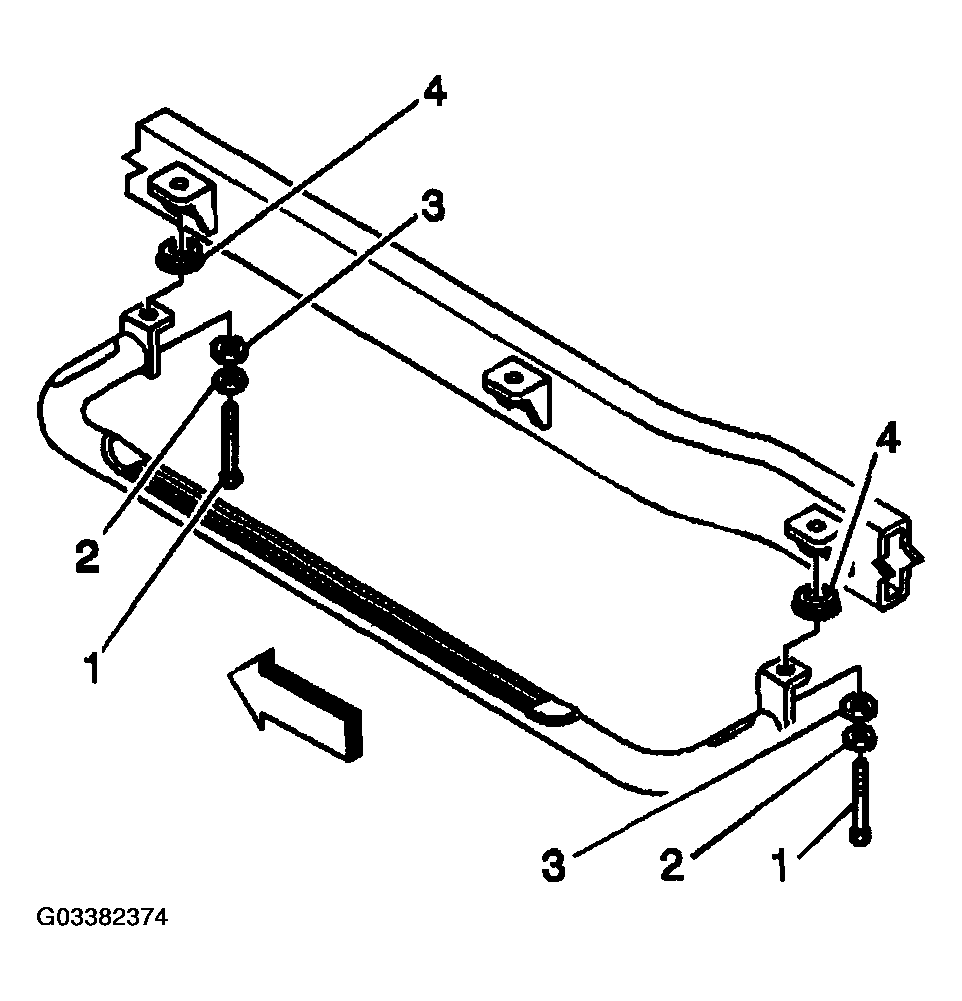

    Fig 2: Removing Lower Body-Mount Cushion Assemblies
    G03382374Courtesy of GENERAL MOTORS CORP.
  8. Remove the following components from the front assist step brackets, and from the rear assist step brackets:
    1. 8.1. The bolts (1)
    2. 8.2. The lock washers (2)
    3. 8.3. The washers (3)
  9. Remove the front brackets, and the rear brackets (4) from the assist step.
  10. Remove the front gaskets, and the rear gaskets (5) from the assist step.
    Fig 3: Removing Front Brackets And Rear Brackets
    G03382375Courtesy of GENERAL MOTORS CORP.
