Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Locate the relay. Refer to MASTER ELECTRICAL COMPONENT LIST  to locate the relay in the vehicle.
  2. Remove any fasteners which hold the relay in place.
  3. Remove any connector position assurance (CPA) devices or secondary locks.
    IMPORTANT: Use care when removing a relay in a wiring harness when the relay is secured by fasteners or tape.
  4. Separate the relay (1) from the wire harness connector (2).

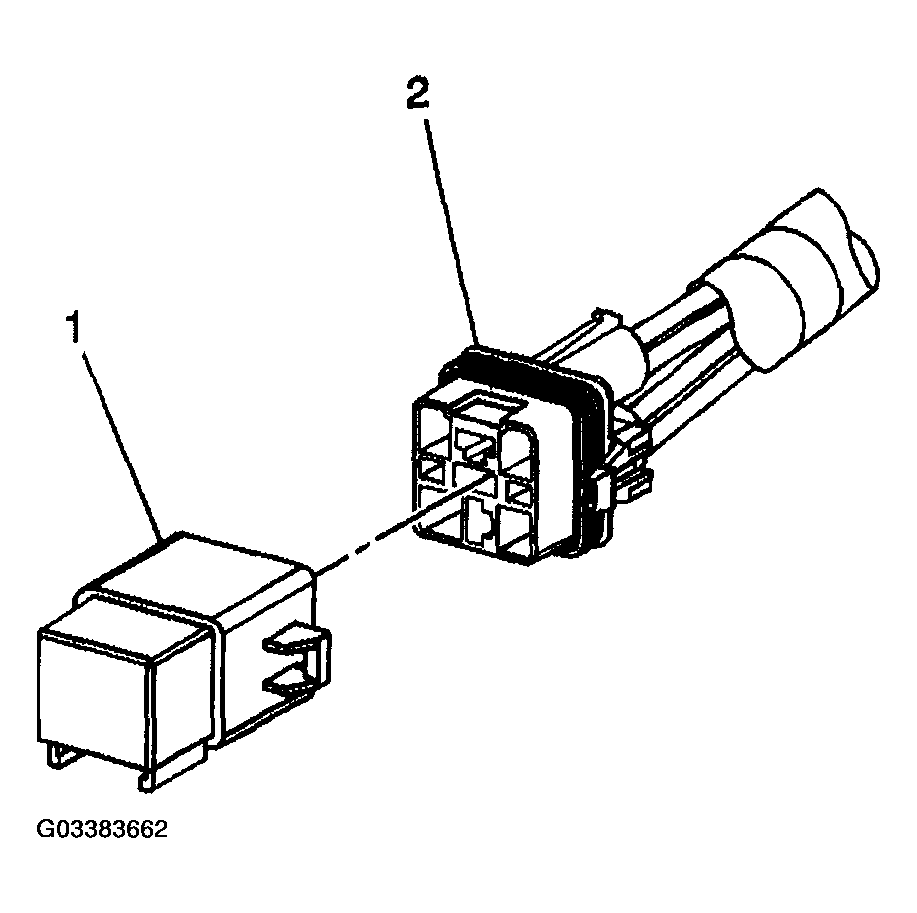

    Fig 1: Separating Relay From Wire Harness Connector
    G03383662Courtesy of GENERAL MOTORS CORP.
