Ignition Switch, C1

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

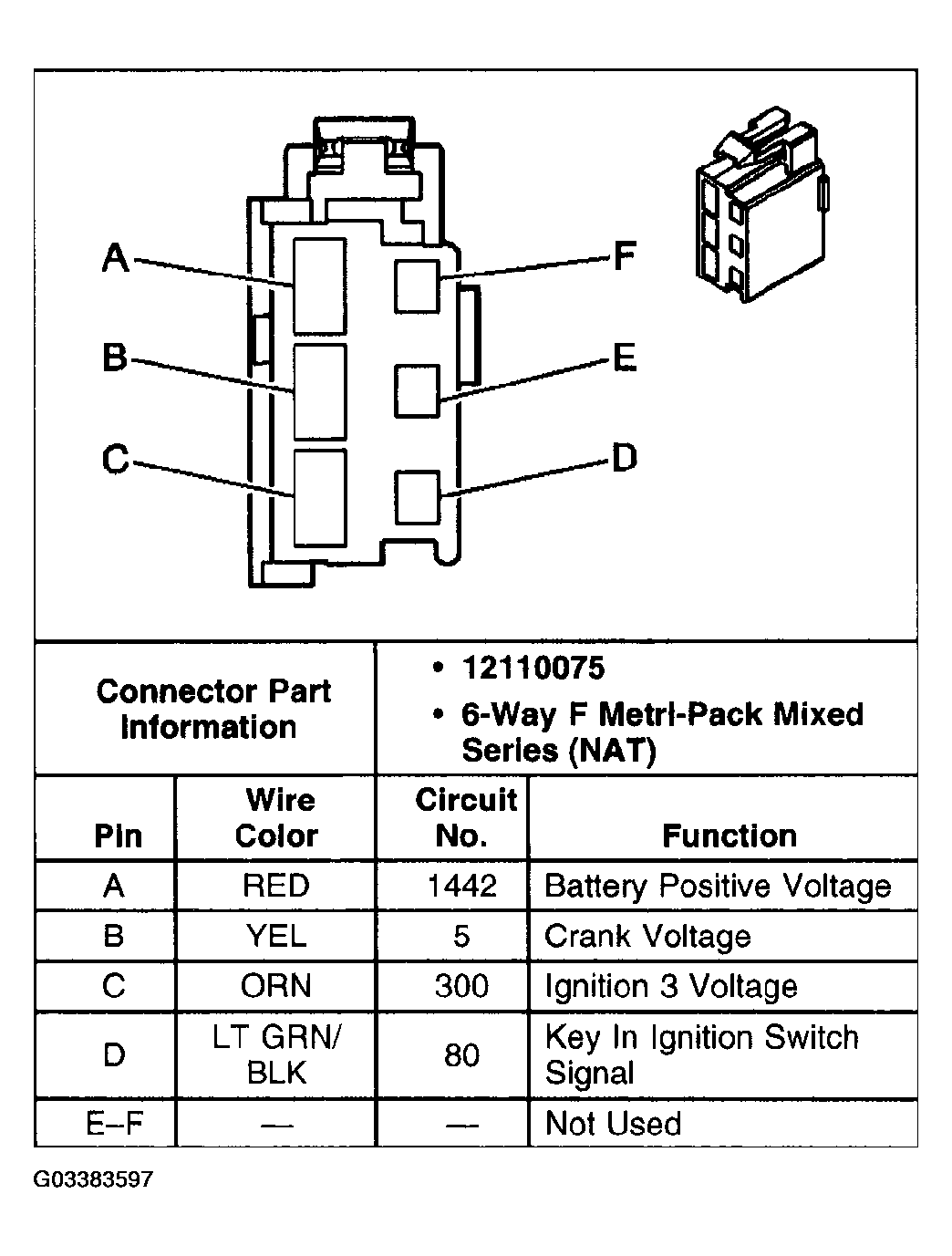

Fig 1: Identifying Ignition Switch, C1 Connector Pins
G03383597Courtesy of GENERAL MOTORS CORP.
