C301 Instrument Panel Harness to Drivers Seat Harness

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

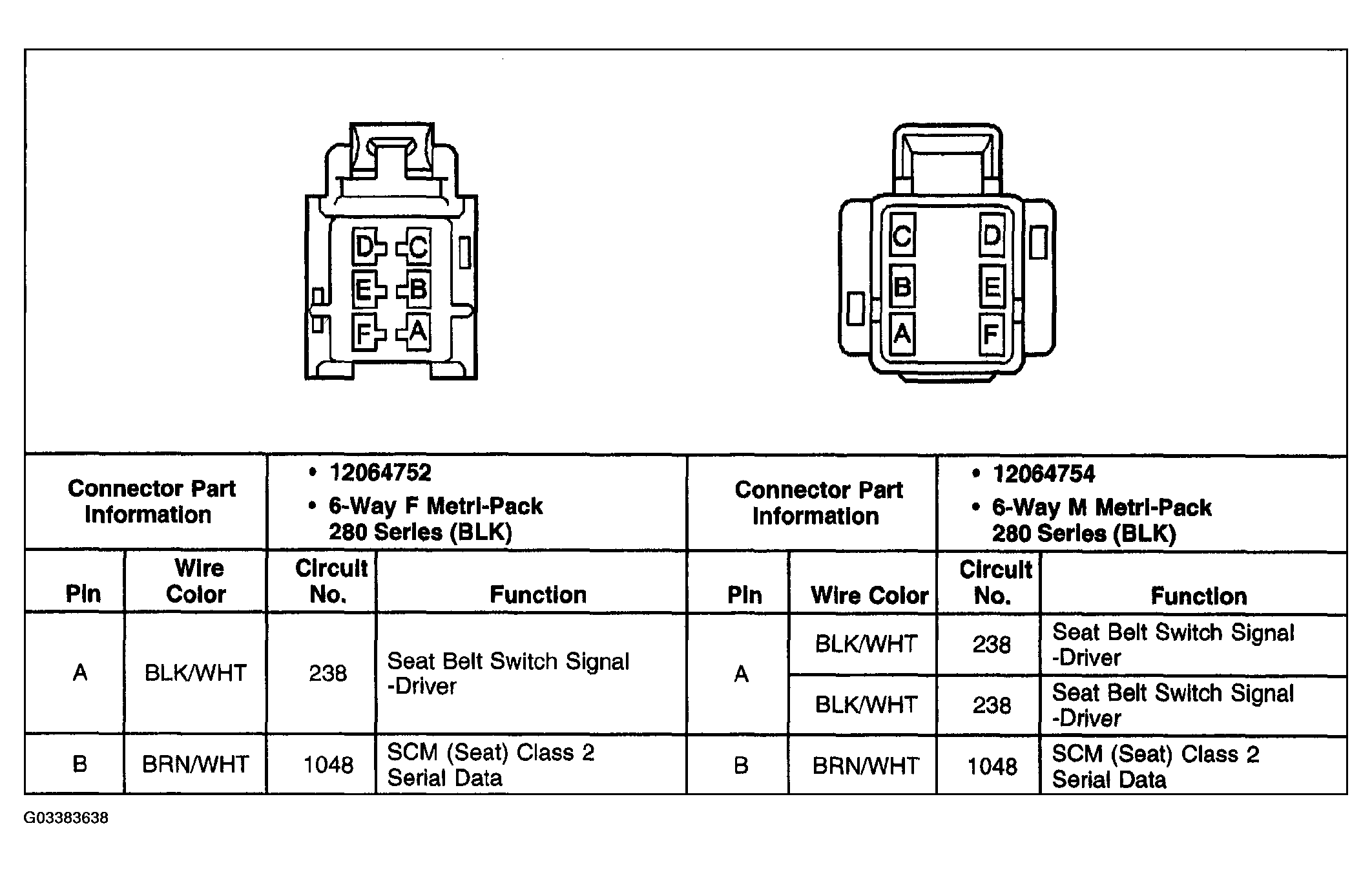

Fig 1: Identifying C301 Instrument Panel Harness To Drivers Seat Harness Connector Terminals (1 Of 2)
G03383638Courtesy of GENERAL MOTORS CORP.

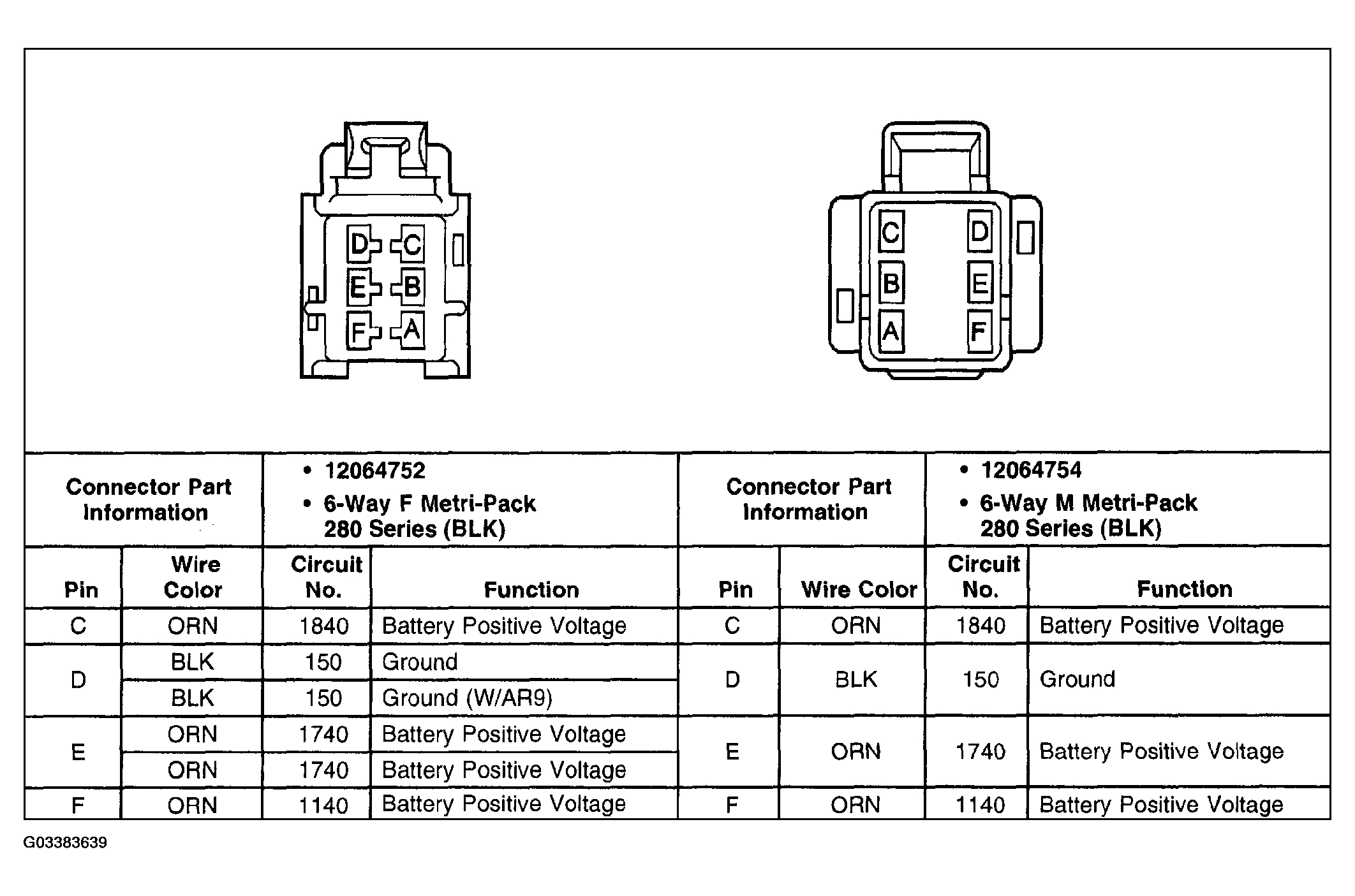

Fig 2: Identifying C301 Instrument Panel Harness To Drivers Seat Harness Connector Terminals (2 Of 2)
G03383639Courtesy of GENERAL MOTORS CORP.
