C206 Instrument Panel Harness to Blunt Cut

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

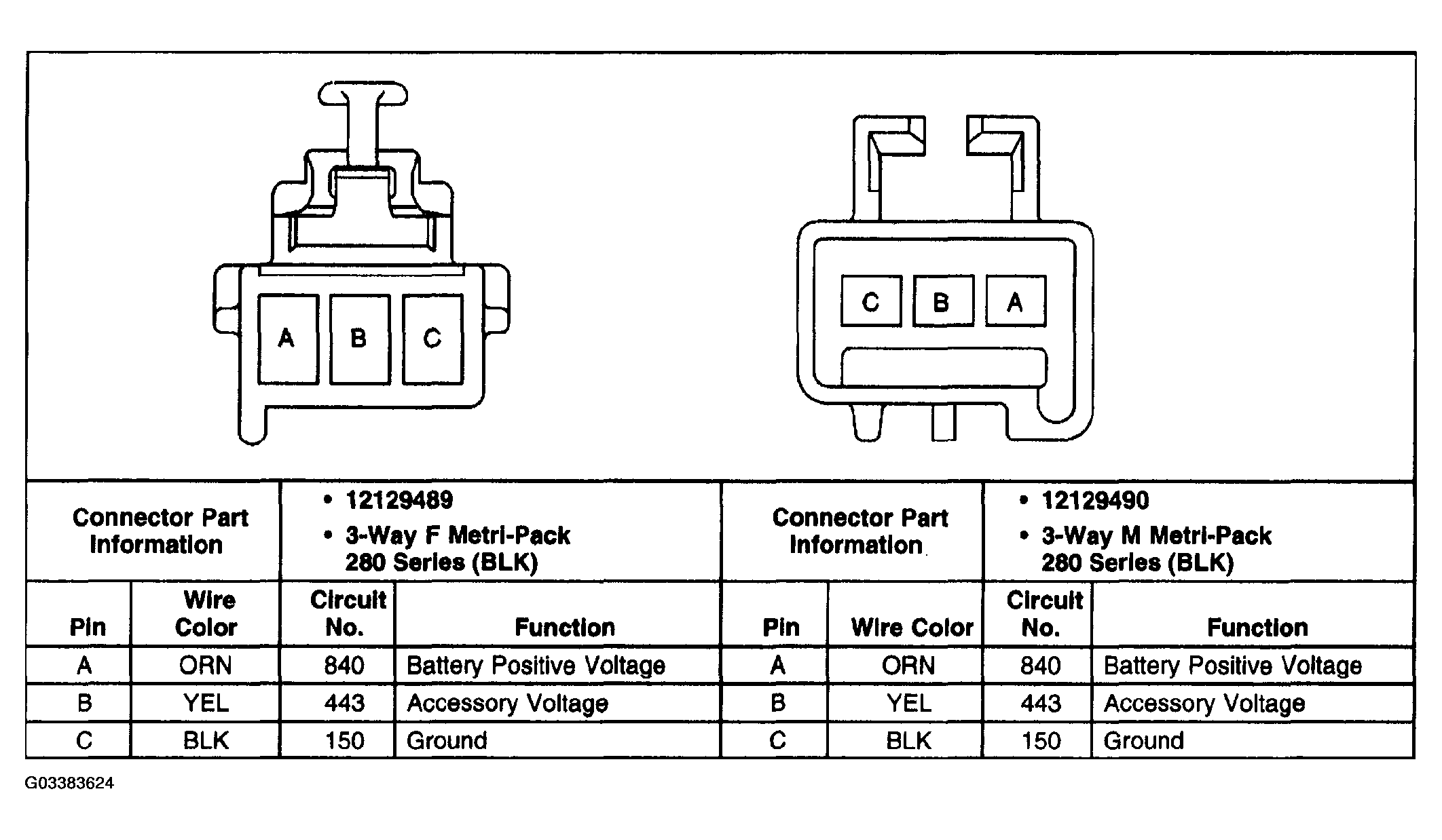

Fig 1: Identifying C206 Instrument Panel Harness To Blunt Cut Connector Terminals
G03383624Courtesy of GENERAL MOTORS CORP.
