C204 Instrument Panel Harness to Front Body Harness

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

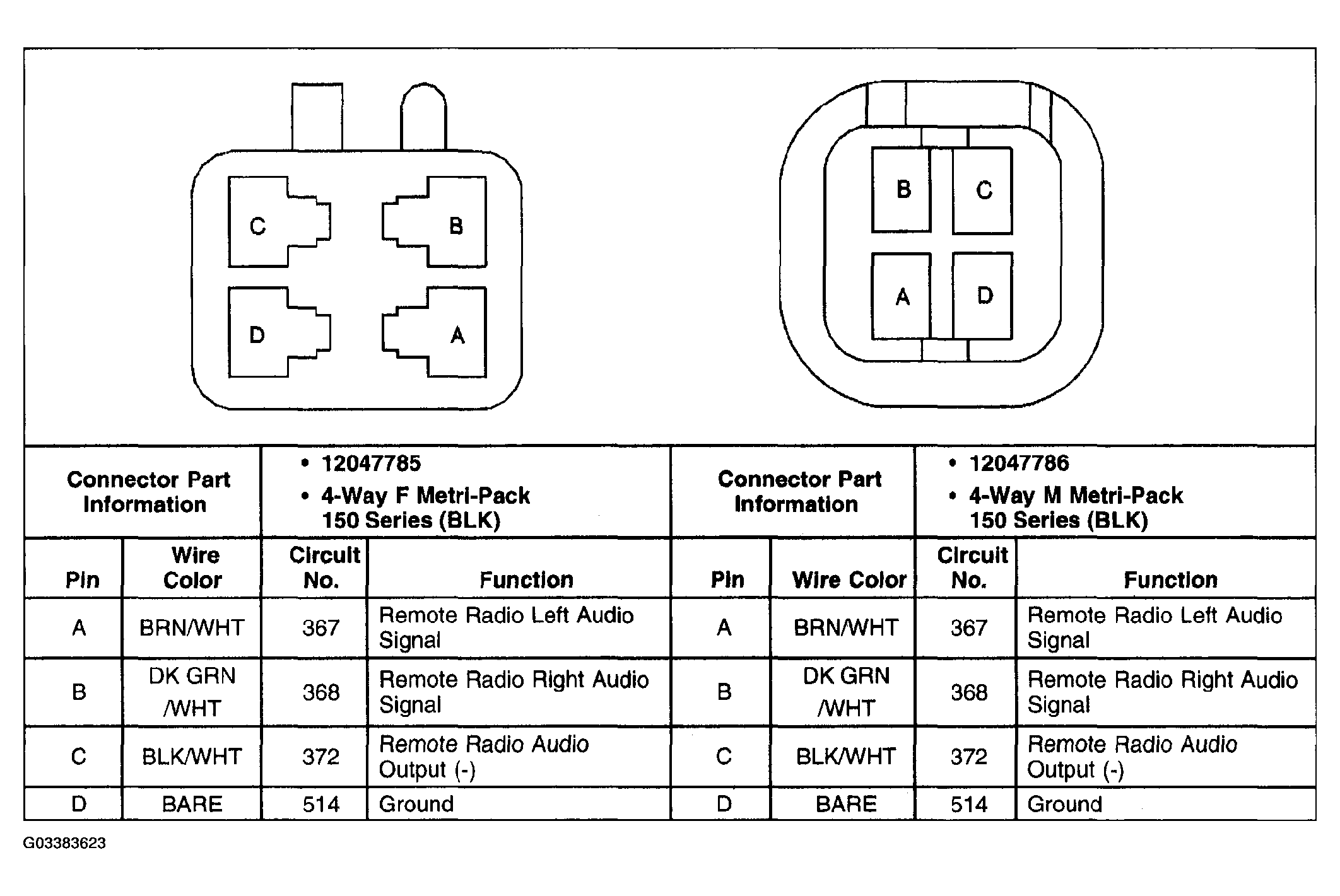

Fig 1: Identifying C204 Instrument Panel Harness To Front Body Harness Connector Terminals
G03383623Courtesy of GENERAL MOTORS CORP.
