C110 Right Ignition Control Module Jumper Harness to Engine Harness
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

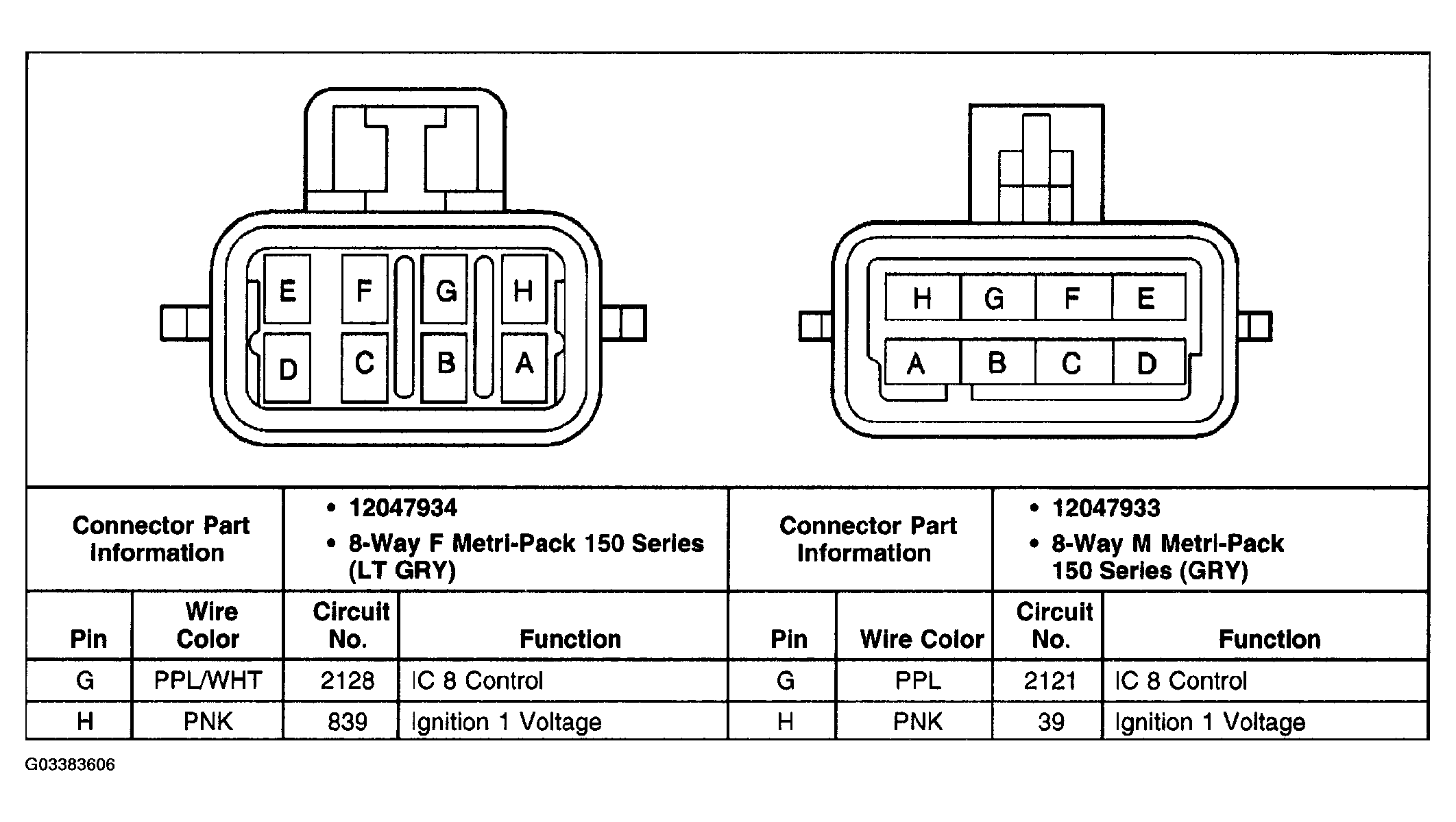

Fig 1: Identifying C110 Right Ignition Control Module Jumper Harness To Engine Harness Connector Terminals (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying C110 Right Ignition Control Module Jumper Harness To Engine Harness Connector Terminals (2 Of 2)
