C109 Left Ignition Control Module Jumper Harness to Engine Harness

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

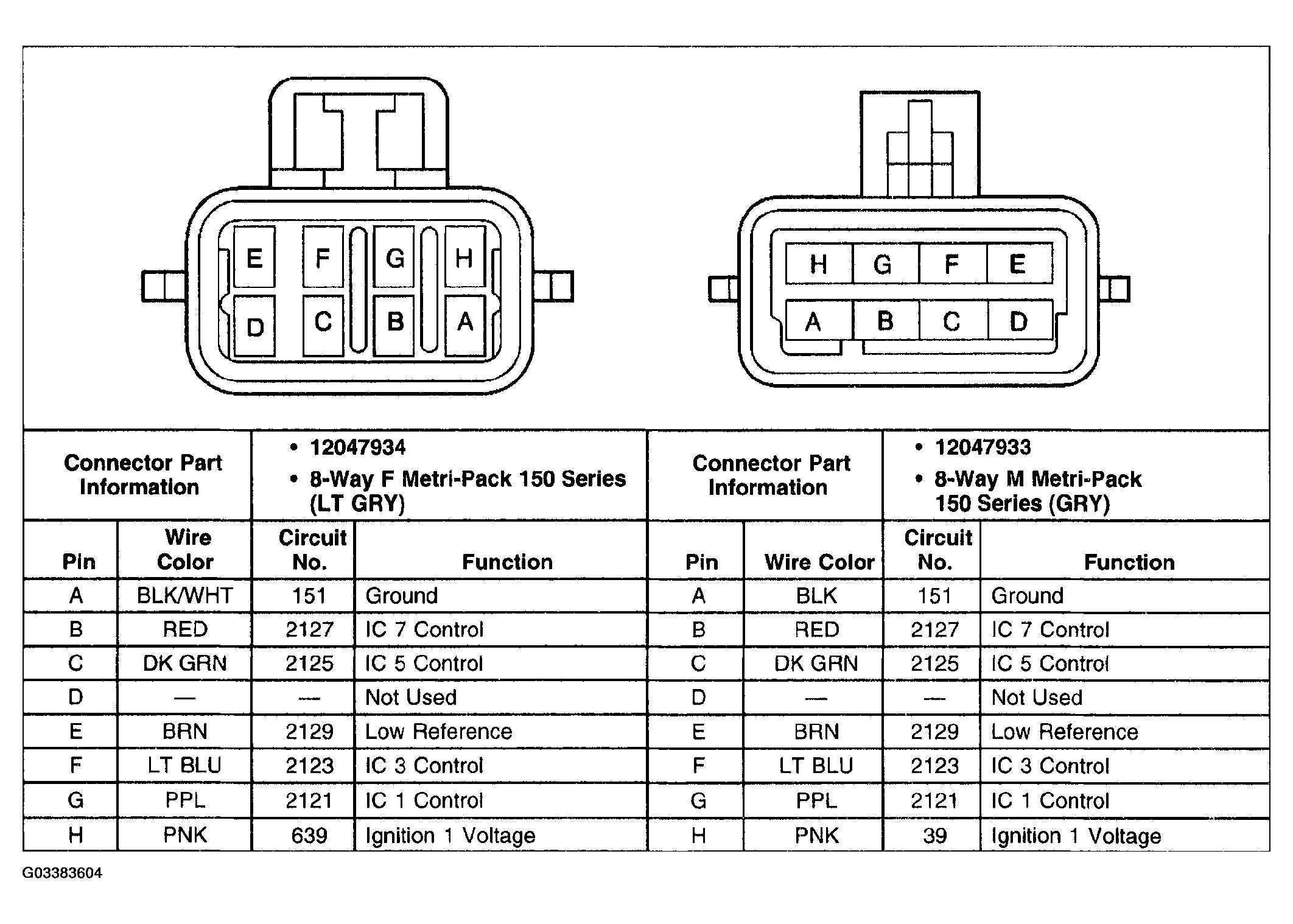

Fig 1: Identifying C109 Left Ignition Control Module Jumper Harness To Engine Harness Connector Terminals
G03383604Courtesy of GENERAL MOTORS CORP.
