Dimensions - Frame (2500 Suburban/Yukon XL/Avalanche 4WD)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Avalanche, 2003 Cadillac Escalade EXT, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

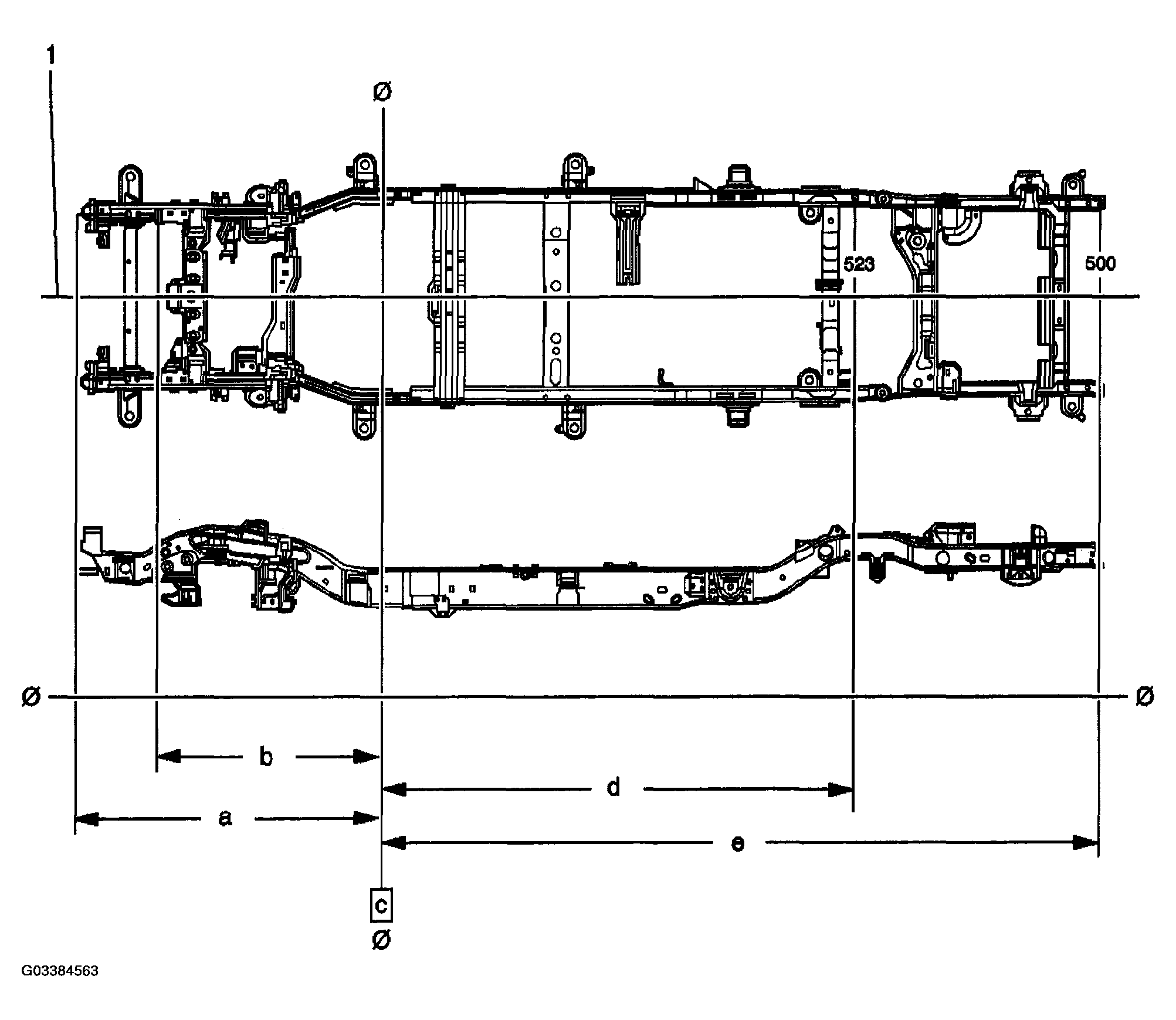

DIMENSIONS - FRAME (2500 SUBURBAN/YUKON XL/AVALANCHE 4WD)
| Description | Location | Length | Width | Height |
|---|---|---|---|---|
| 32 mm hole | a | 1327 mm | 411 mm | 471 mm |
| 23.5 x 13.5 mm slot | b | 1276 mm | 411 mm | 466 mm |
| 17 mm hole | c | 0 mm | 523 mm | 370 mm |
| 28 x 19 mm slot | d | 2457 mm | 523 mm | 610 mm |
| 19.5 mm hole | e | 3733 mm | 500 mm | 574 mm |
| All dimensions are measured in millimeters, from a zero line, center line, and a common datum. All dimensions are symmetrical, unless otherwise specified. | ||||

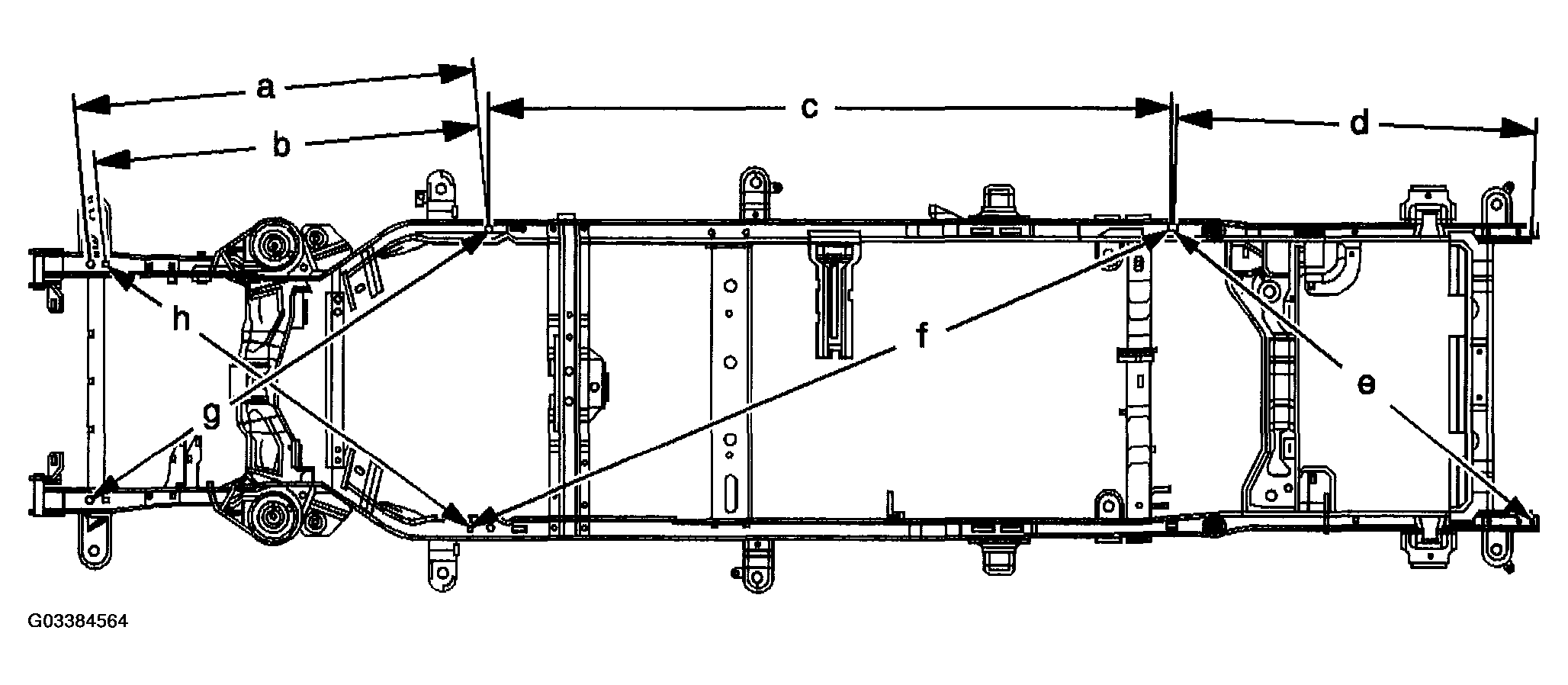

Point-to-point measurements are for reference only. Use these measurements for diagnosis or for validating. Point-to-point measurements do not afford the accuracy that 3-Dimensional measuring systems have. Point-to-point measurements are duplicated with tram bar pointers set at equal lengths. All holes, slots and fasteners are measured to the center.
DIMENSIONS - FRAME (2500 SUBURBAN/YUKON XL/AVALANCHE 4WD)
| Location | Point to Point |
|---|---|
| a | 1335 mm |
| b | 1284 mm |
| c | 2468 mm |
| d | 1277 mm |
| e | 1636 mm |
| f | 2680 mm |
| g | 1626 mm |
| h | 1583 mm |
