Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Avalanche, 2003 Cadillac Escalade EXT, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the trailer wiring harness.

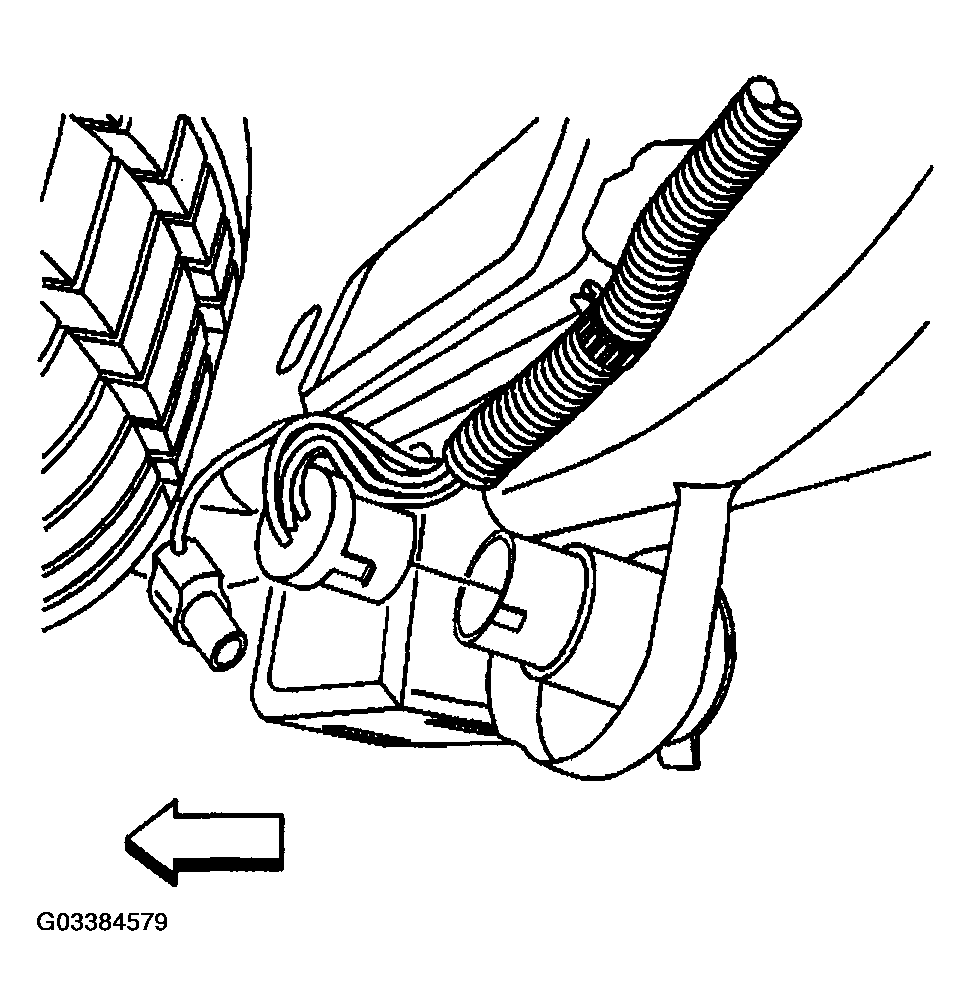

    Fig 1: Disconnecting Trailer Wiring Harness
    G03384579Courtesy of GENERAL MOTORS CORP.
  2. Remove the hitch platform bolts from the frame rails and the rear bumper.
  3. Remove the hitch platform from the vehicle.

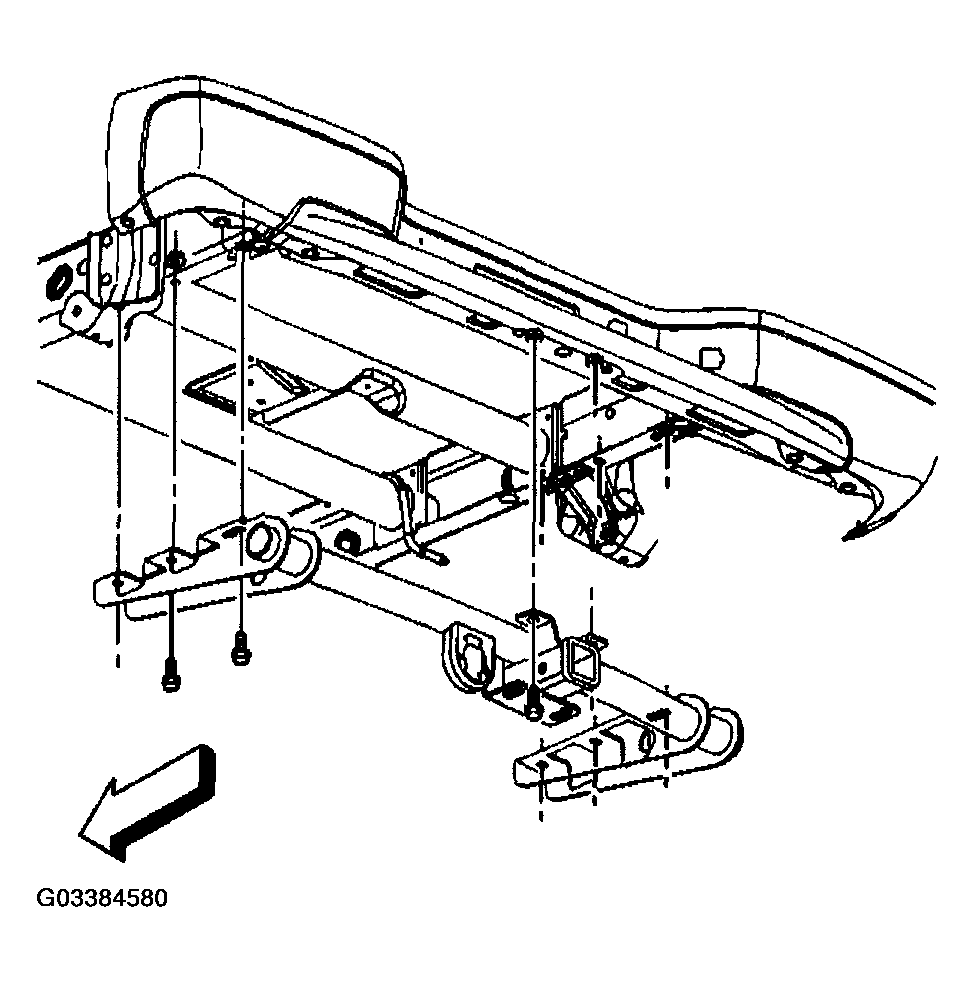

    Fig 2: Removing Hitch Platform From Vehicle
    G03384580Courtesy of GENERAL MOTORS CORP.
