Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Avalanche, 2003 Cadillac Escalade EXT, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper. Refer to BUMPER REPLACEMENT - FRONT (OLD STYLE)
  2. Remove the tow hook bolts from the frame rail.
  3. Remove the tow hook from the vehicle.

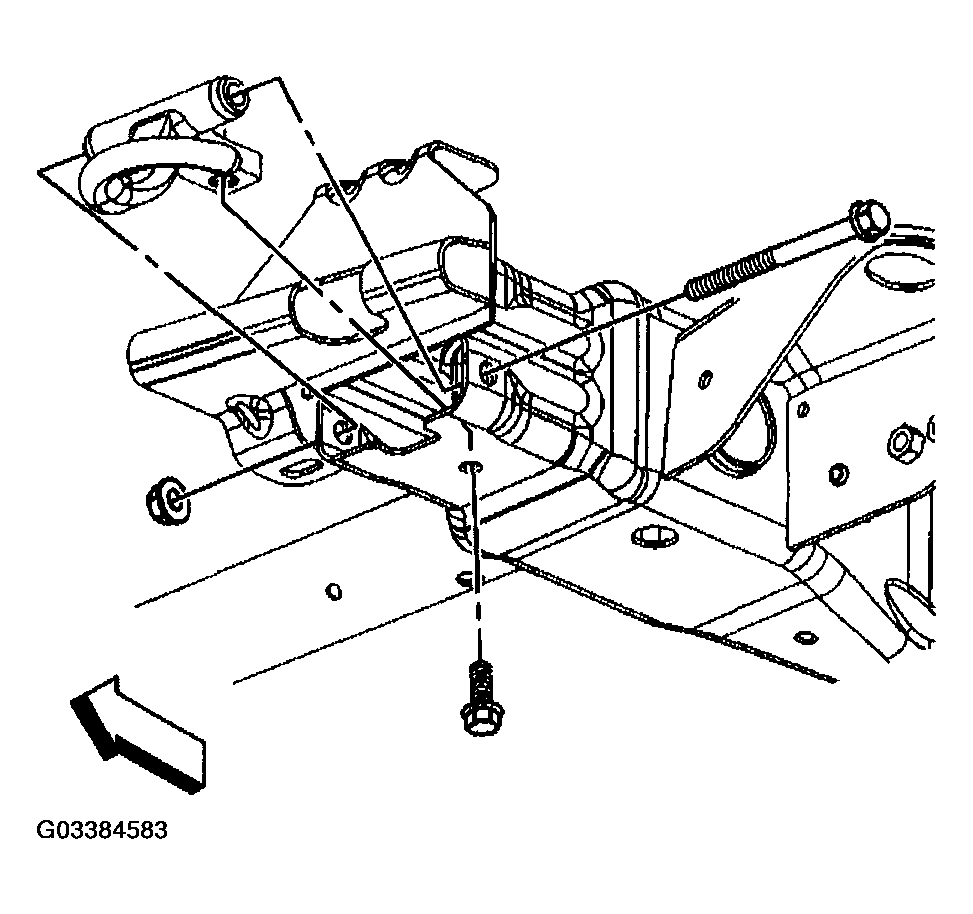

    Fig 1: Removing Tow Hook Bolts From Frame Rail
    G03384583Courtesy of GENERAL MOTORS CORP.
