Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Avalanche, 2003 Cadillac Escalade EXT, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES .
  1. Remove the battery ground (negative) cable.
  2. Remove the frame bolt (2) from the frame crossmember nut.

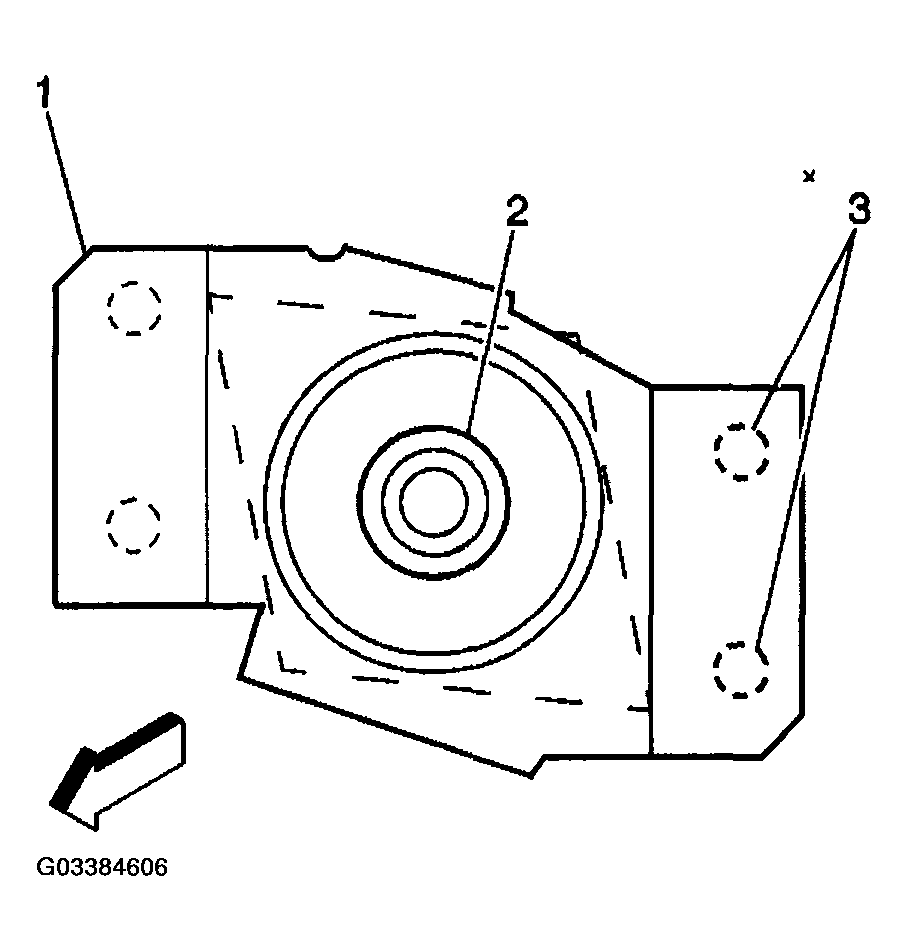

    Fig 1: Removing Frame Bolt From Frame Crossmember Nut
    G03384606Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The frame crossmember nut retainer will be reused if not damaged from the stripped out bolt.
  3. Break away the spot welds (1) on one side of the frame crossmember nut retainer with an air chisel.
  4. Lift one side of the frame crossmember nut retainer (enough to remove the frame crossmember nut).
  5. Remove the frame crossmember nut.

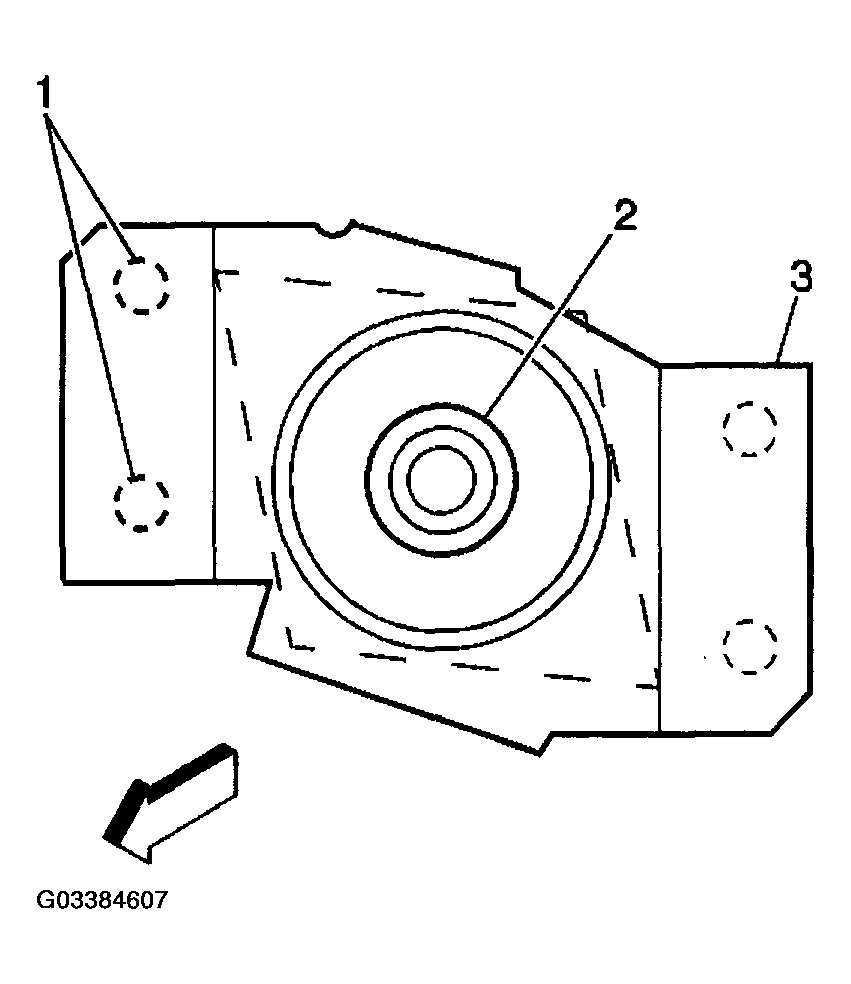

    Fig 2: Removing Frame Crossmember Nut
    G03384607Courtesy of GENERAL MOTORS CORP.
