Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. From under the vehicle, position the turbocharger exhaust pipe to rear of the engine Do not install the pipe to the turbocharger.

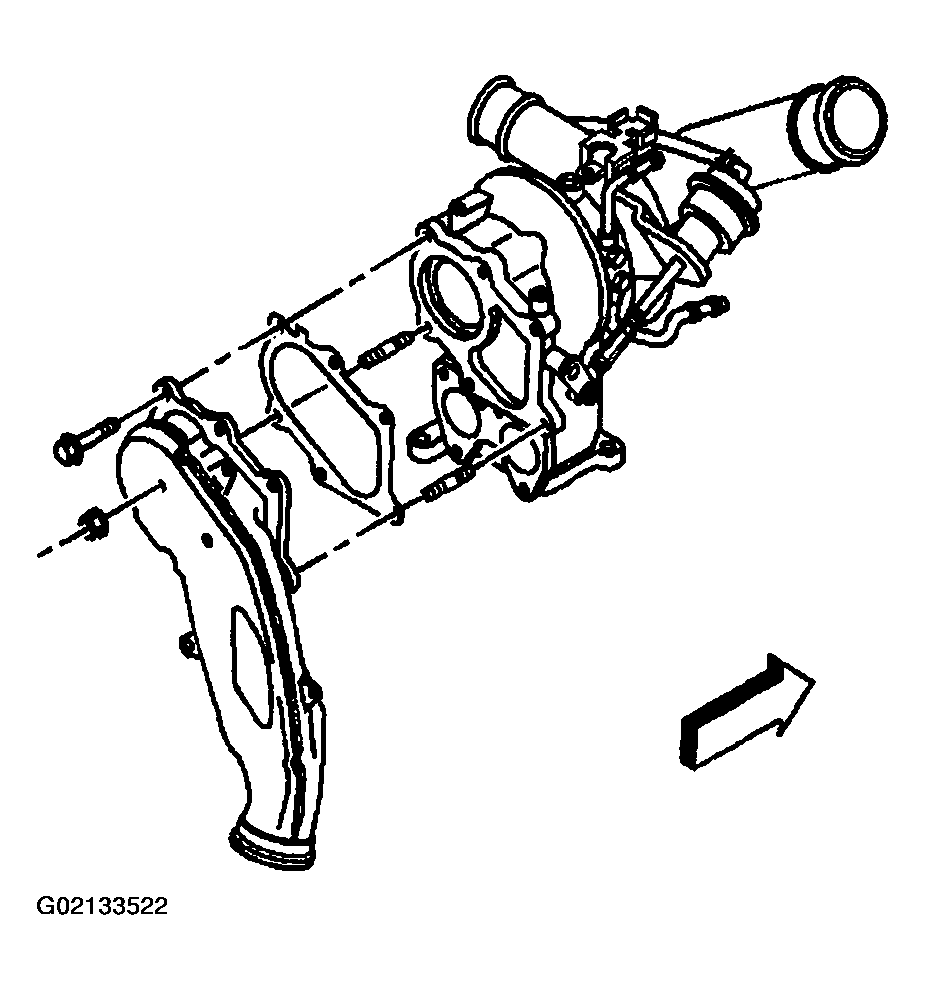

    Fig 1: Positioning Turbocharger Exhaust Pipe (6.6L)
    G02133522Courtesy of GENERAL MOTORS CORP.
  2. Install the right exhaust pipe with NEW gasket to the turbocharger. Align the tabs on the gasket to face inward.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the exhaust pipe to turbocharger bolts (2).

    Tighten

    Tighten the bolts to 53 N.m (39 lb ft).

    Fig 2: Installing Exhaust Pipe, Gasket & Bolts (6.6L)
    G02133523Courtesy of GENERAL MOTORS CORP.
  4. Install the turbocharger exhaust pipe with a NEW gasket to the turbocharger.
  5. Install the turbocharger exhaust pipe bolts/nuts.

    Tighten

    Tighten the bolts/nuts to 53 N.m (39 lb ft).

    Fig 3: Installing Turbocharger Exhaust Pipe Bolt & Nut (6.6L)
    G02133524Courtesy of GENERAL MOTORS CORP.
  6. Install the turbocharger exhaust pipe heat shield.
  7. Install the upper turbocharger exhaust pipe heat shield bolts (1, 3).

    Tighten

    Tighten the bolts to 8 N.m (71 lb in).

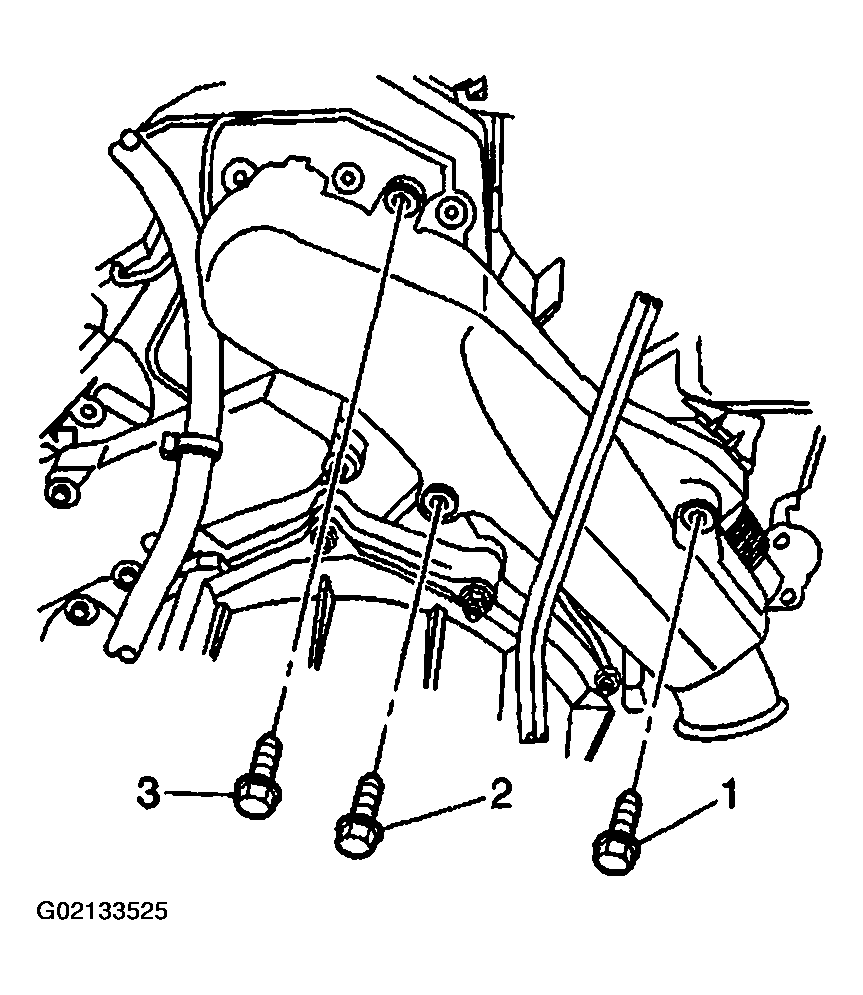

    Fig 4: Installing Upper Turbocharger Exhaust Pipe Heat Shield Bolts (6.6L)
    G02133525Courtesy of GENERAL MOTORS CORP.
  8. Install the turbocharger heat shield.
  9. Install the turbocharger heat shield bolts.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

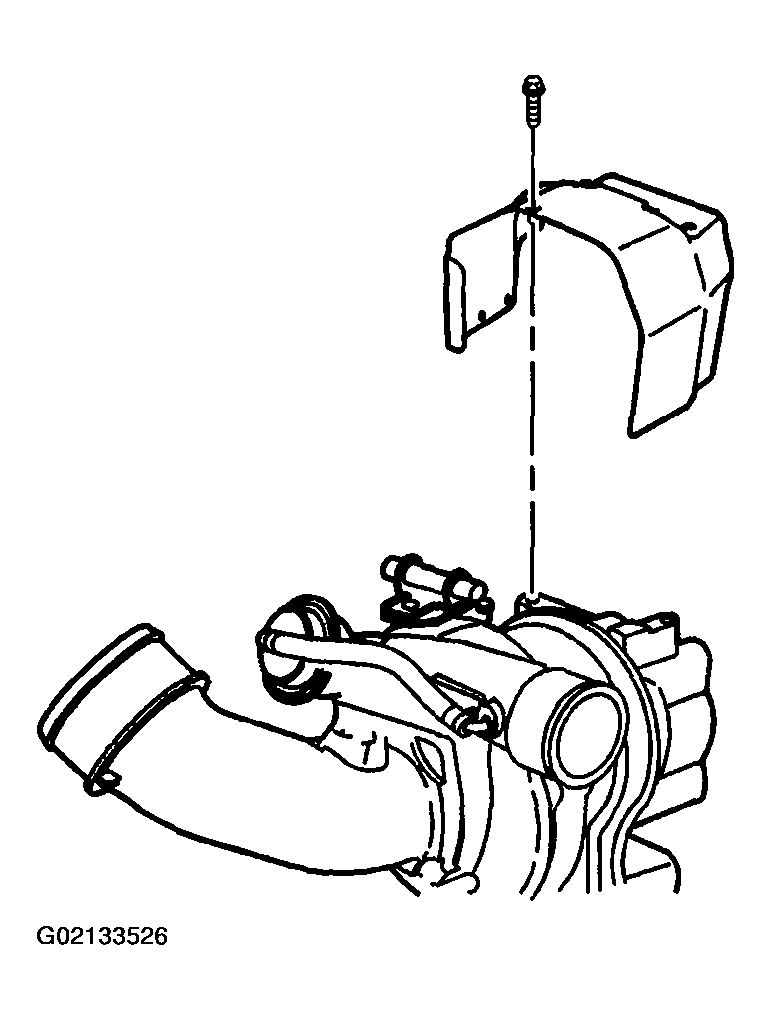

    Fig 5: Installing Turbocharger Heat Shield & Bolts (6.6L)
    G02133526Courtesy of GENERAL MOTORS CORP.
  10. Raise the vehicle.
  11. Install the lower turbocharger exhaust pipe heat shield bolt (2).

    Tighten

    Tighten the bolt to 8 N.m (71 lb in).

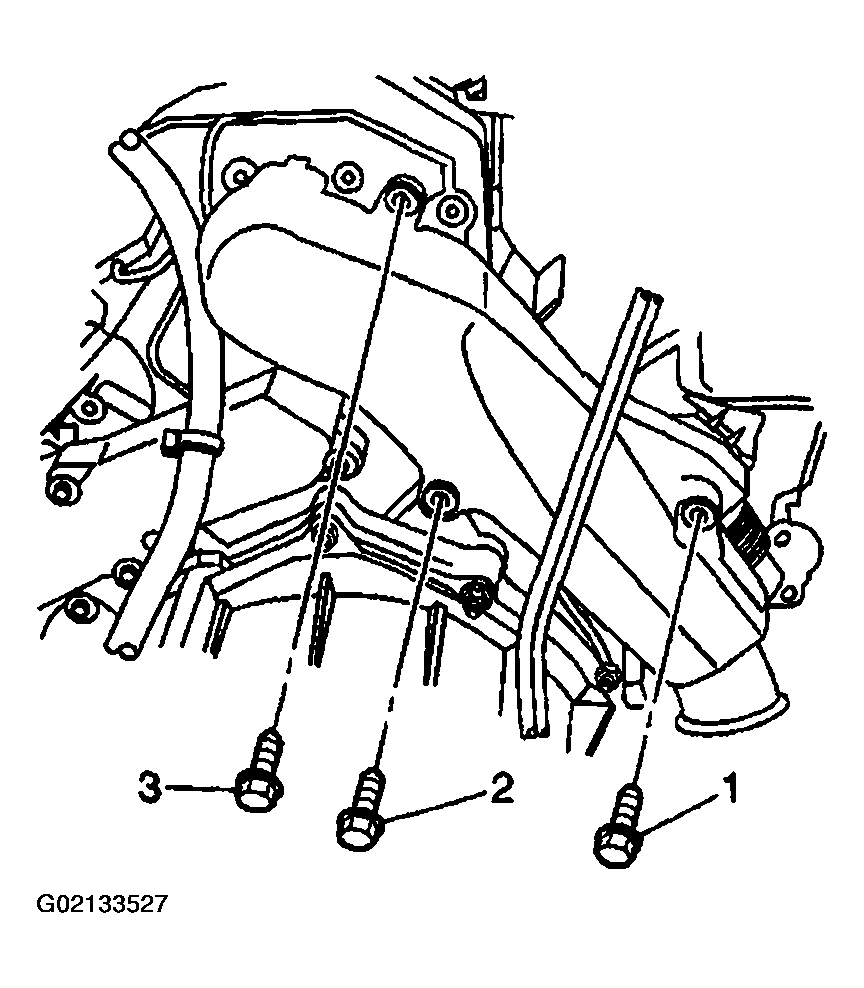

    Fig 6: Installing Lower Turbocharger Exhaust Pipe Heat Shield Bolt (6.6L)
    G02133527Courtesy of GENERAL MOTORS CORP.
  12. If equipped with an automatic transmission, install the transmission fluid fill tube to bell housing nuts.

    Tighten

    Tighten the nuts 18 N.m (13 lb ft).

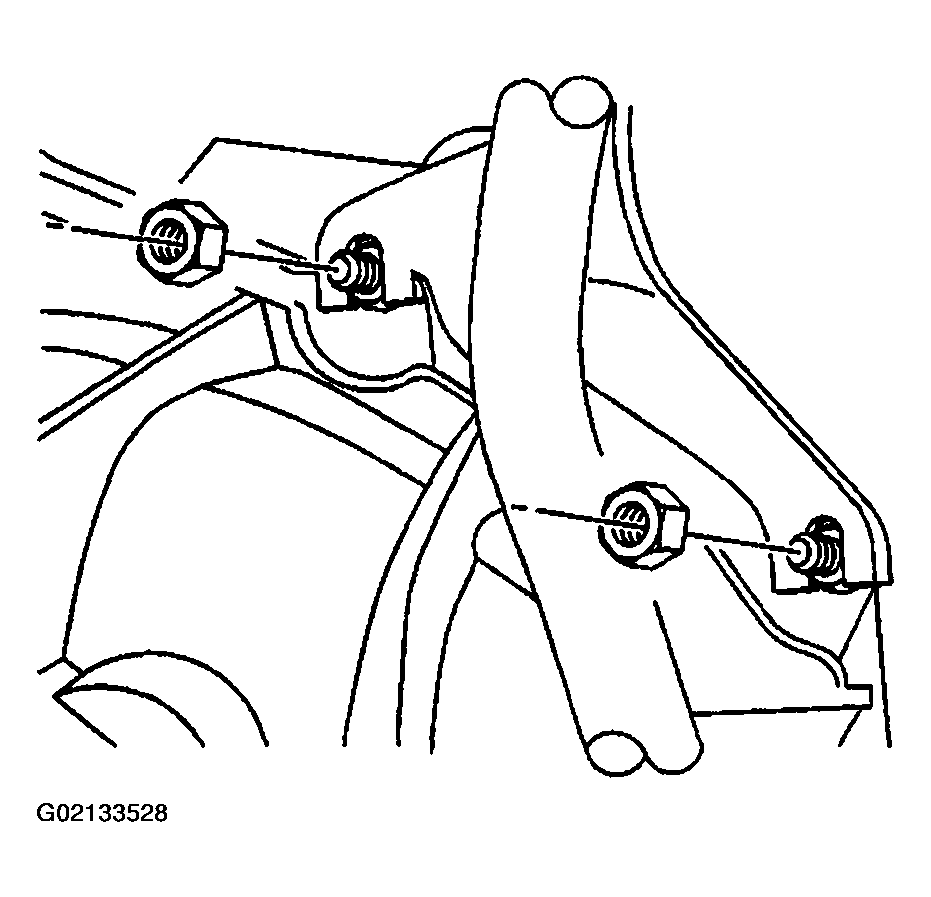

    Fig 7: Installing Transmission Fluid Fill Tube To Bell Housing Nuts (6.6L)
    G02133528Courtesy of GENERAL MOTORS CORP.
  13. Install the right exhaust pipe to the exhaust manifold with a NEW gasket. Align the tab on the gasket to face outward as shown.
  14. Install the right exhaust pipe to exhaust manifold bolts (1).

    Tighten

    Tighten the bolts to 53 N.m (39 lb ft).

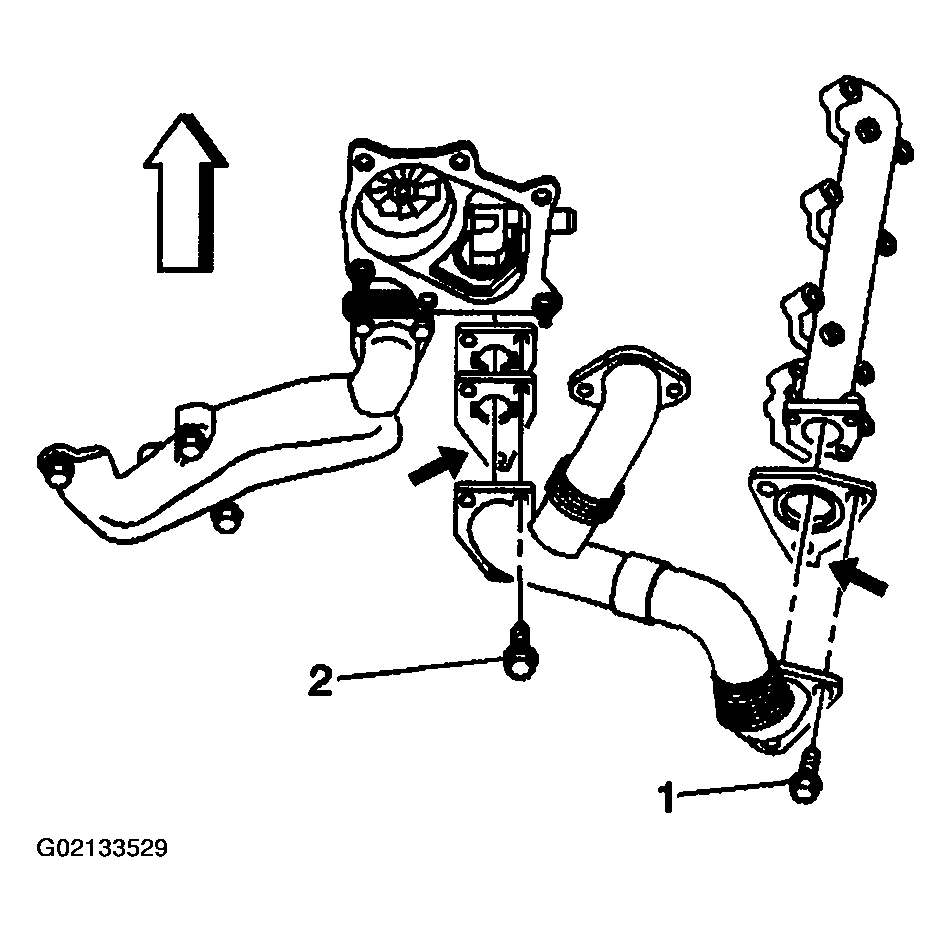

    Fig 8: Installing Right Exhaust Pipe, Gasket & Bolts (6.6L)
    G02133529Courtesy of GENERAL MOTORS CORP.
  15. Install the exhaust manifold pipe hanger in the insulator.

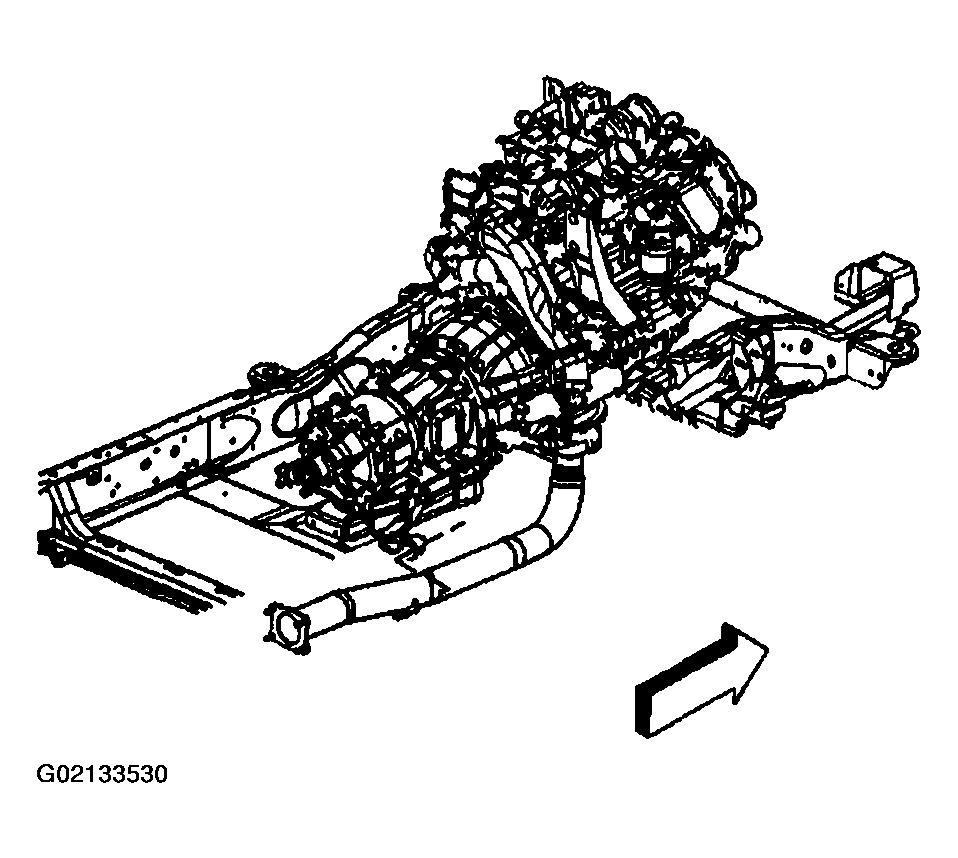

    Fig 9: Installing Exhaust Manifold Pipe Hanger (6.6L)
    G02133530Courtesy of GENERAL MOTORS CORP.
  16. Install the exhaust muffler to the exhaust manifold pipe.
  17. Install the exhaust muffler nuts until snug.
    Fig 10: Installing Exhaust Muffler & Nuts (6.6L)
    G02133531Courtesy of GENERAL MOTORS CORP.
  18. Slide the exhaust pipe clamp down and around the pipe connection.
  19. Tighten the exhaust pipe clamp.

    Tighten

    • Tighten the clamp to 40 N.m (30 lb ft).
    • Tighten the nuts to 40 N.m (30 lb ft).
  20. Lower the vehicle.

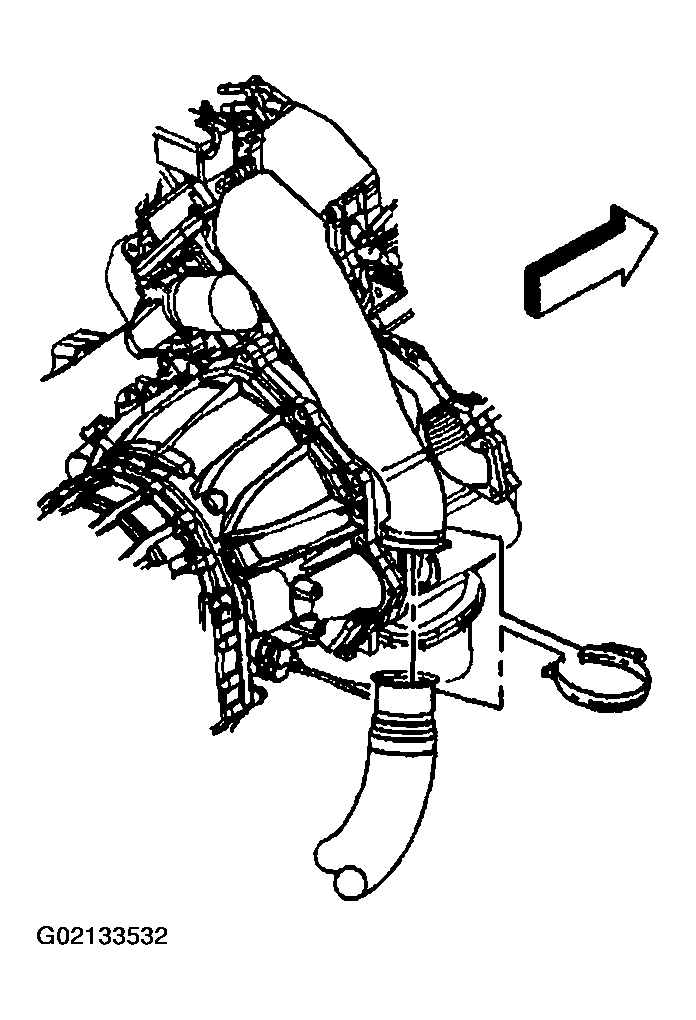

    Fig 11: Tightening Exhaust Pipe Clamp (6.6L)
    G02133532Courtesy of GENERAL MOTORS CORP.
  21. Install the upper intake manifold sight shield.
  22. Install the upper intake manifold cover to the outlet duct.
  23. Tighten the outlet duct clamp at the upper intake manifold cover.

    Tighten

    Tighten the clamp to 6 N.m (53 lb in).

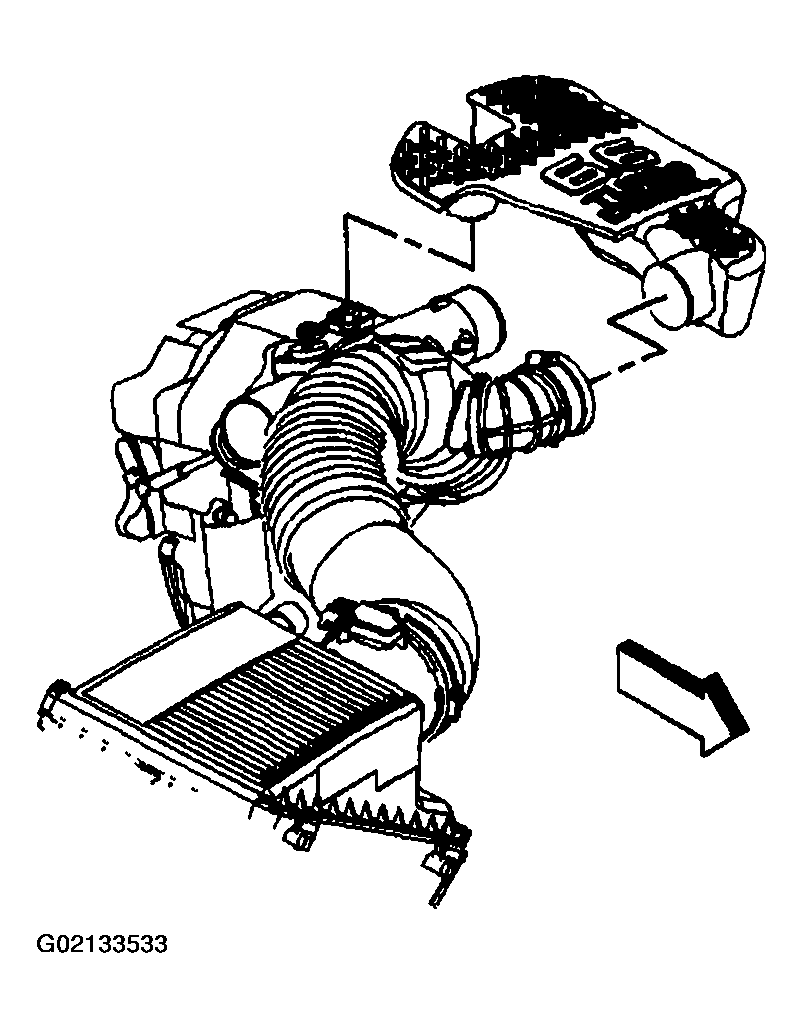

    Fig 12: Installing Upper Intake Manifold Cover (6.6L)
    G02133533Courtesy of GENERAL MOTORS CORP.
  24. Position the hood in the normal operating position by moving the hood hinge bolts from service position (2) to normal operating position (1).

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  25. Inspect for exhaust leaks.

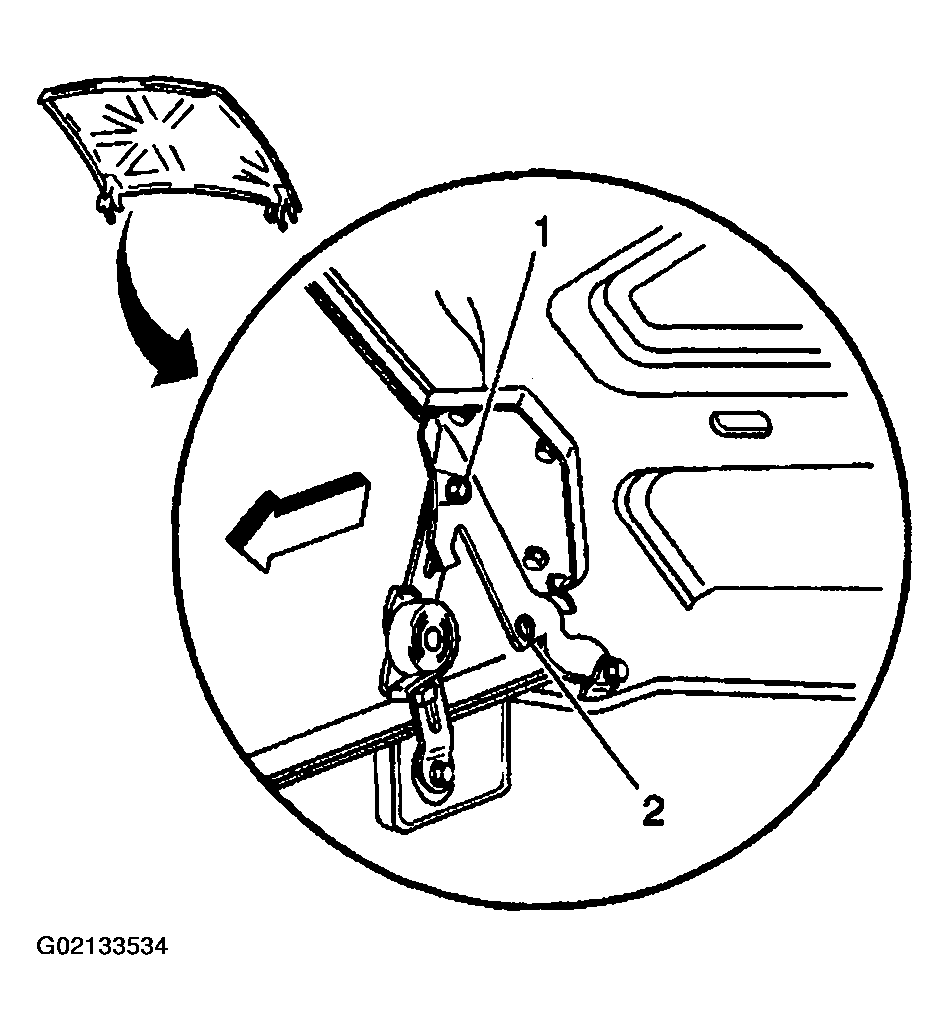

    Fig 13: Moving Hood Hinge Bolts From Service Position (6.6L)
    G02133534Courtesy of GENERAL MOTORS CORP.
