Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

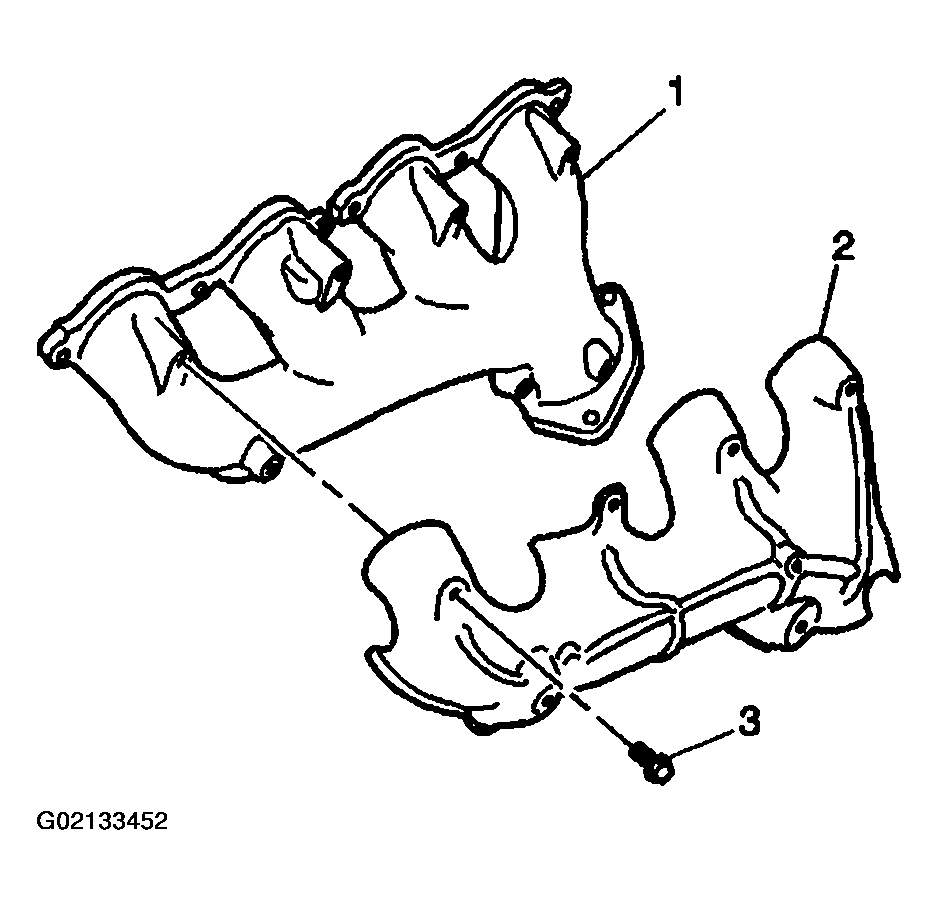

- Install the heat shield (2), and bolts (3) to the exhaust manifold (1), if necessary.
Tighten
Tighten the bolts to 9 N.m (80 lb in).
Important:
- Tighten the exhaust manifold bolts as specified in the service procedure. Improperly installed and/or leaking exhaust manifold gaskets may affect vehicle emissions and/or On-Board Diagnostics (OBD) II system performance.
- The cylinder head exhaust manifold bolt hole threads must be clean and free of debris or threadlocking material.
Important: Do not apply sealant to the first three threads of the bolt.
- Apply a 5mm (0.2 in) wide band of threadlock GM P/N 12345493 (Canadian P/N 10953488), or equivalent to the threads of the exhaust manifold bolts.

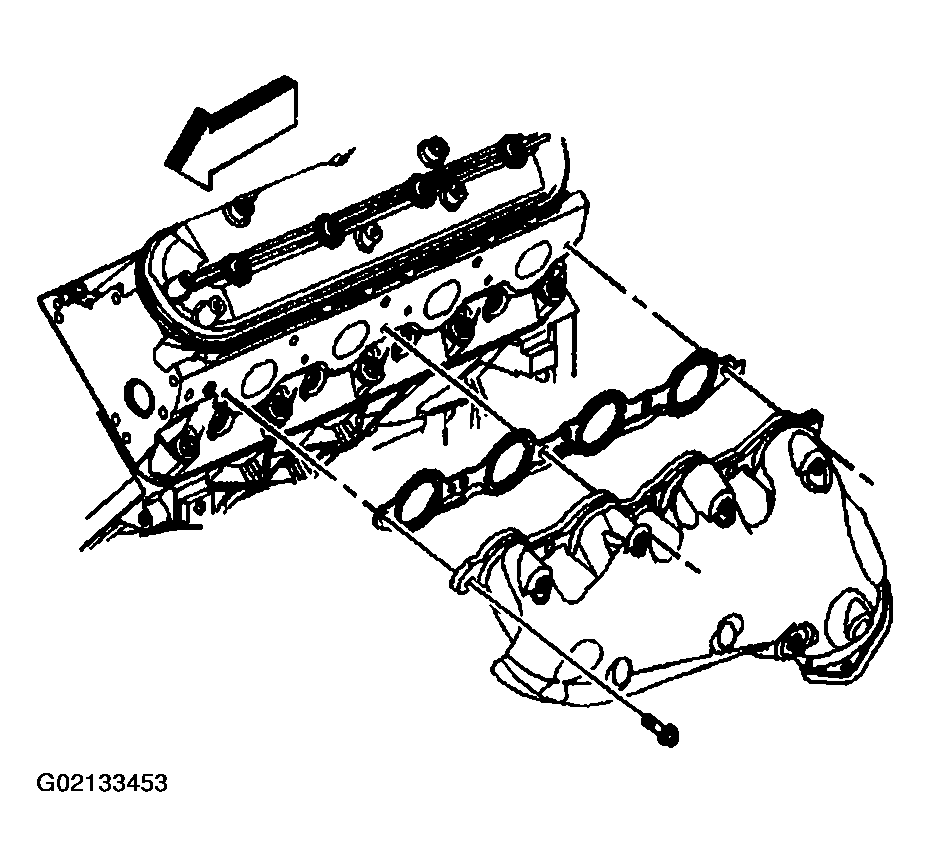

- Install the exhaust manifold, NEW gasket and bolts.
Tighten
- 3.1. Tighten the bolts a first pass to 15 N.m (11 lb ft). Tighten the bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside bolts.
- 3.2. Tighten the bolts a final pass to 25 N.m (18 lb ft). Tighten the bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside bolts.
- Using a flat punch, bend over the exposed edge of the exhaust manifold gasket at the rear of the left cylinder head.
- Install the spark plugs. Refer to SPARK PLUG .
- Raise the vehicle.

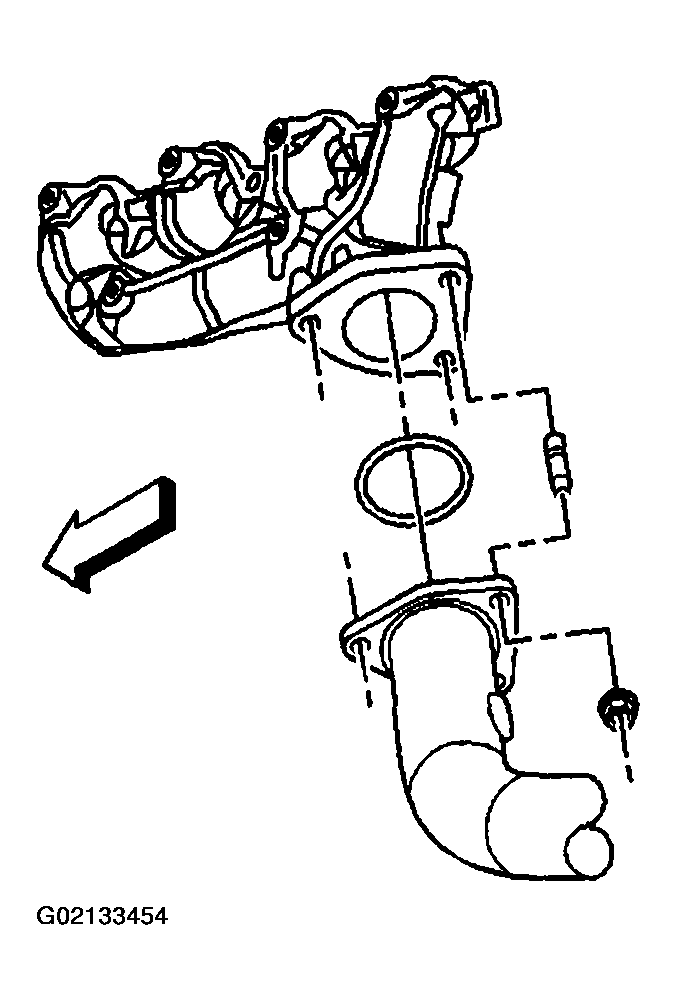

- Install the exhaust manifold pipe nuts.
Tighten
Tighten the nuts to 50 N.m (37 lb ft).
- Lower the vehicle.
