Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust muffler. Refer to Muffler Replacement (4.3L, 4.8L, and 5.3L Engines)  or Muffler Replacement (6.0L, 6.6L, and 8.1L Engines) .
  2. Remove the spare tire hoist. Refer to TIRE HOIST AND SHAFT REPLACEMENT in Tires and Wheels.
  3. If equipped with a 6 1/2 ft box, remove the exhaust heat shield bolts.
  4. Remove the exhaust heat shield.

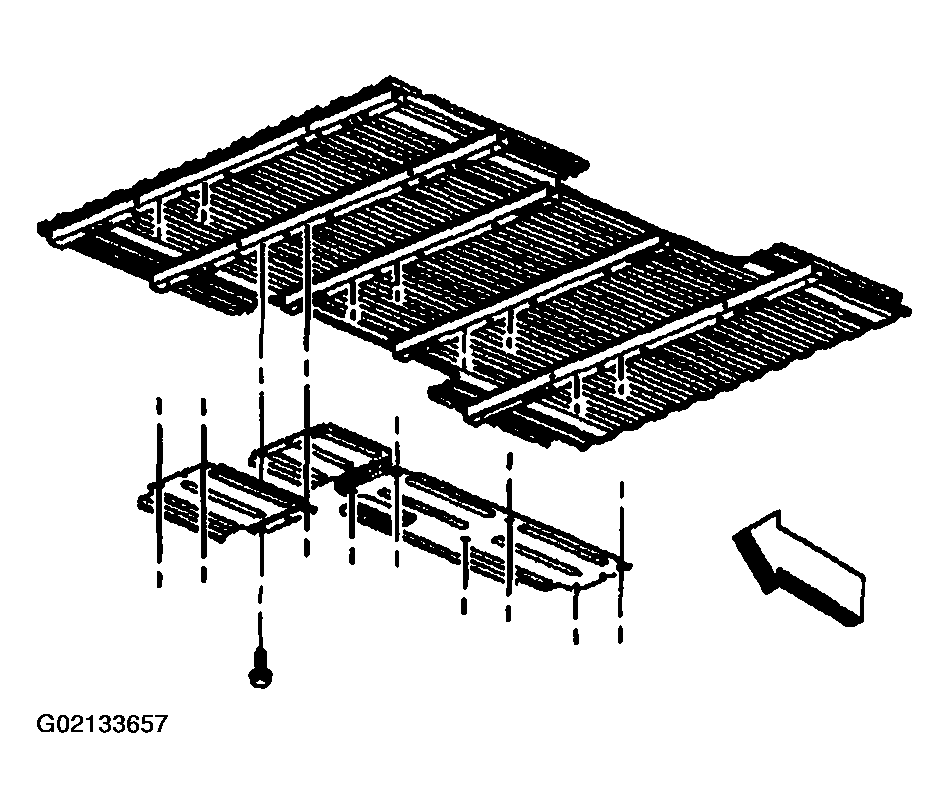

    Fig 1: Removing Exhaust Heat Shield & Bolts (6 1/2 Ft Box)
    G02133657Courtesy of GENERAL MOTORS CORP.
  5. If equipped with a 8 ft box, remove the exhaust heat shield bolts.
  6. Remove the exhaust heat shield.

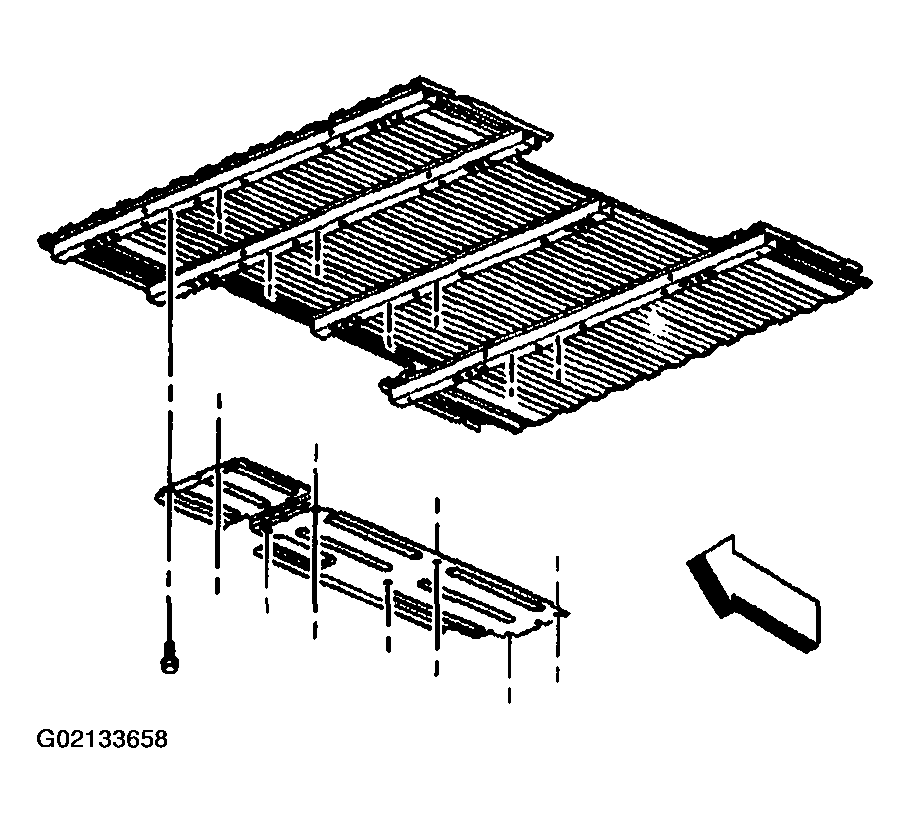

    Fig 2: Removing Exhaust Heat Shield & Bolts (8 Ft Box)
    G02133658Courtesy of GENERAL MOTORS CORP.
