Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the exhaust heat shield nuts.
  3. Remove the exhaust heat shield (1, 3) from the dash panel studs.
  4. If removing the heat shield (3), remove the shield out thru the passenger side wheelwell.

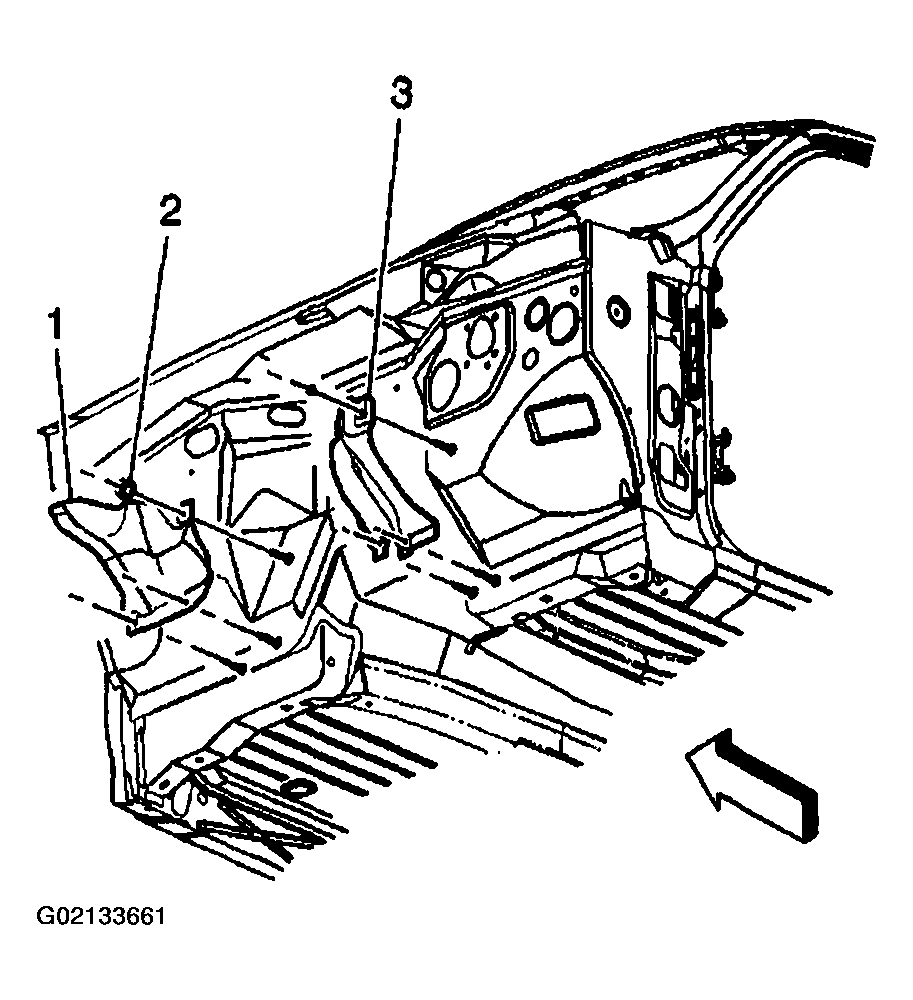

    Fig 1: Removing Exhaust Heat Shield From Dash Panel Studs
    G02133661Courtesy of GENERAL MOTORS CORP.
