Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. If installing the heat shield (3), install the shield thru the passenger side wheelwell.
  2. Install the exhaust heat shield (1, 3) to the dash panel studs.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the exhaust heat shield nuts.

    Tighten

    Tighten the nuts to 9 N.m (80 lb in).

  4. Lower the vehicle.

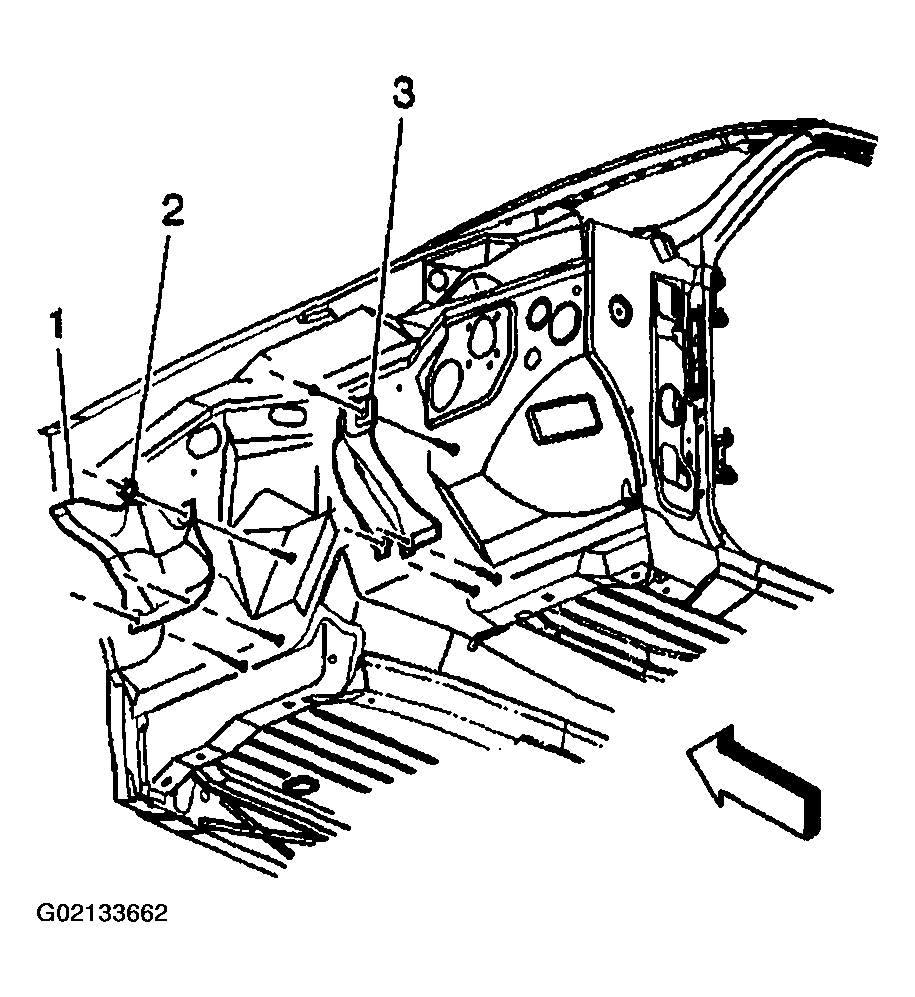

    Fig 1: Installing Exhaust Heat Shield To Dash Panel Studs
    G02133662Courtesy of GENERAL MOTORS CORP.
