Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the throttle body heater outlet hose.
  2. Use the J 38185  in order to install the hose clamps.
  3. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  4. Install the air cleaner duct.

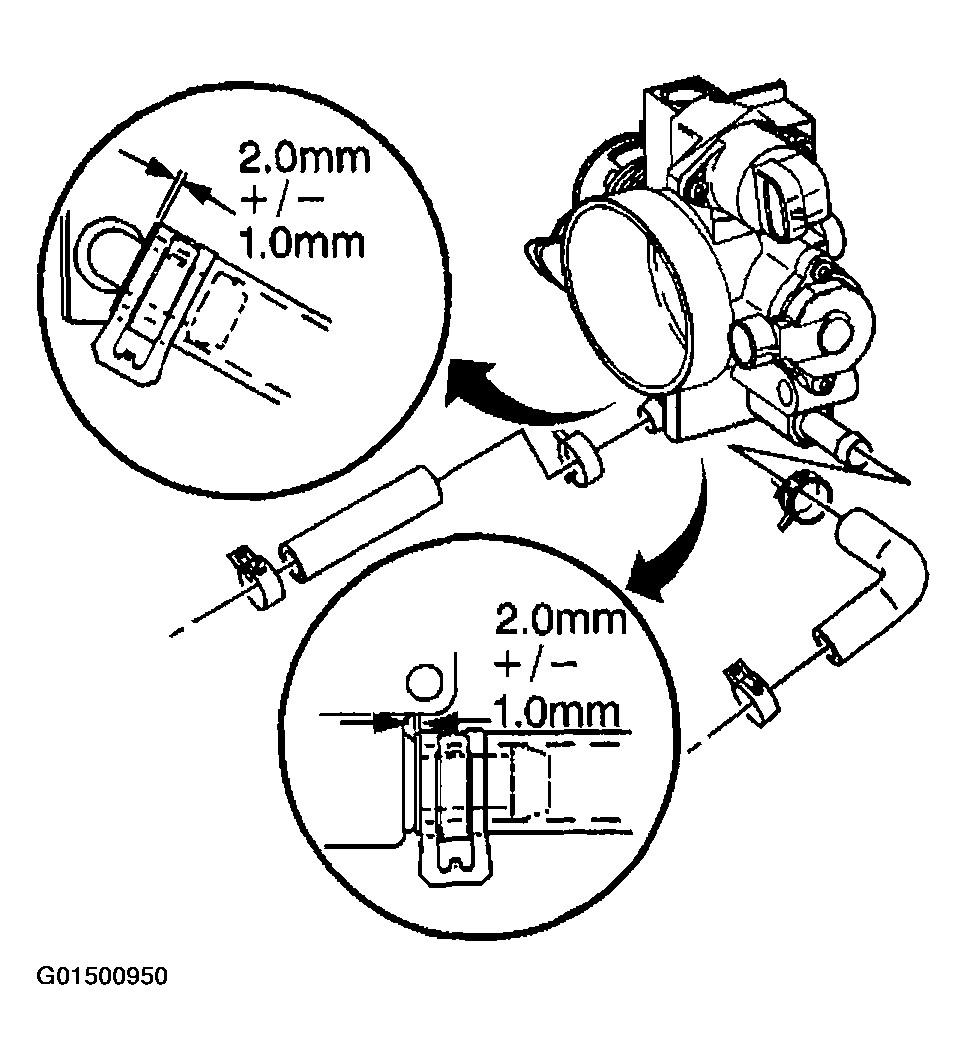

Fig 1: Installing Air Cleaner Duct And Throttle Body Heater Outlet Hose
G01500950Courtesy of GENERAL MOTORS CORP.
