Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the throttle body heater inlet hose.
  2. Use the J 38185  in order to install the hose clamps.
  3. Install the throttle cable bracket.
  4. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  5. Install the air cleaner duct.

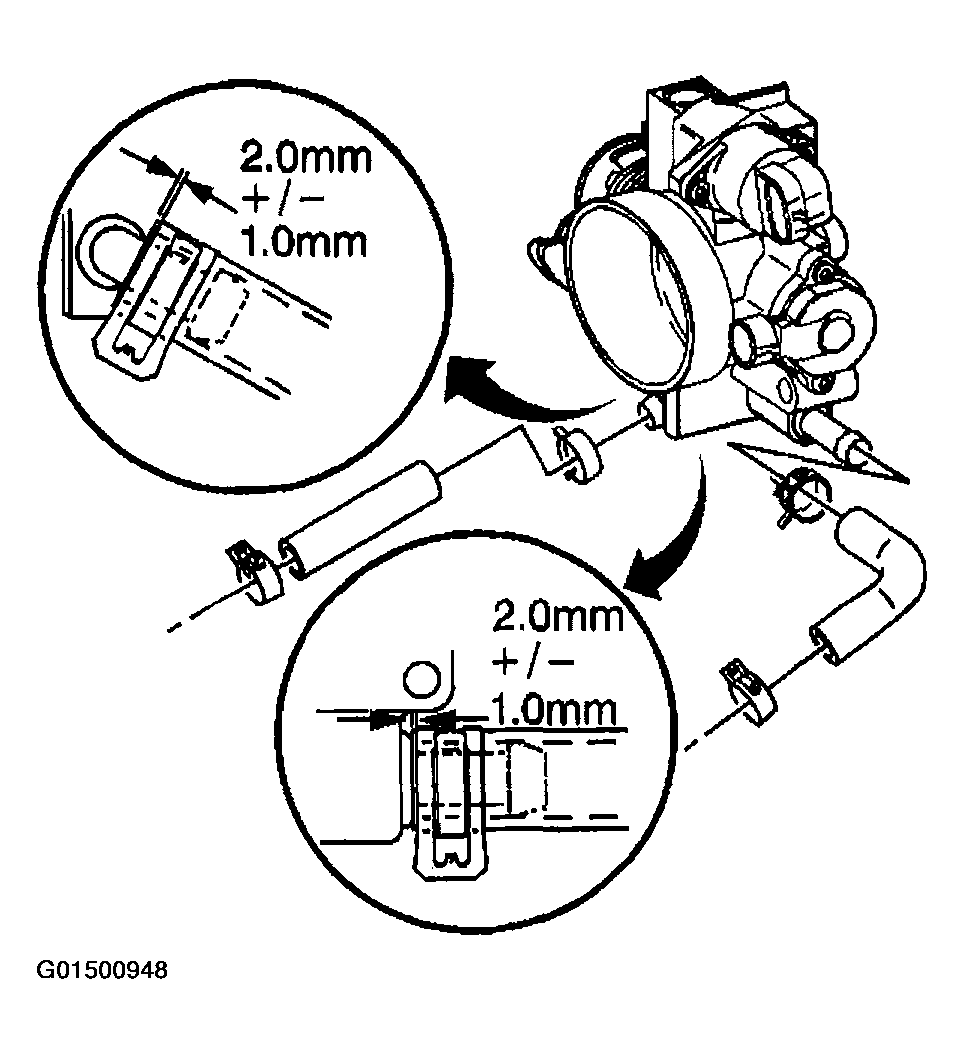

Fig 1: Installing Air Cleaner Duct And Throttle Body Heater Inlet Hose
G01500948Courtesy of GENERAL MOTORS CORP.
