Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
- Install the cooling fans with the cooling fan shroud.

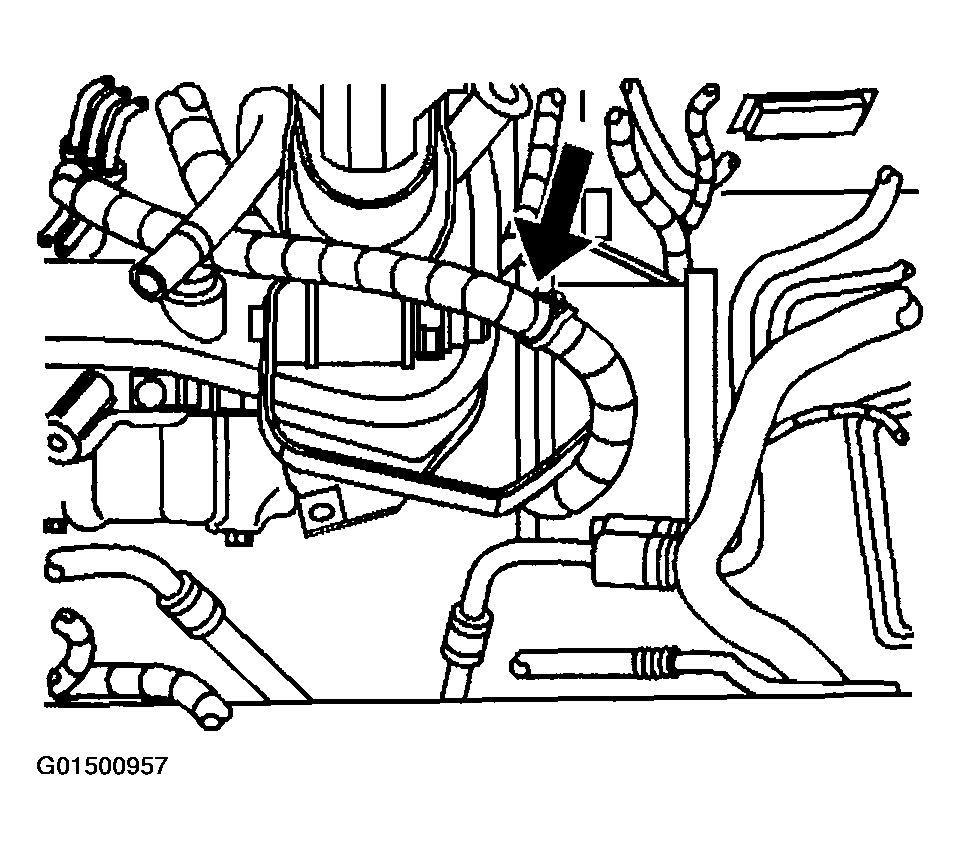

- Reposition the engine wiring harness.
- Connect the engine wiring harness retainers at the engine harness bracket.
- Raise the vehicle.
- Connect the TOC lines to the fan module retainer clip.
- Lower the vehicle.
- Connect the upper TOC line to the radiator. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING
in Automatic Transaxle - 4T65-E.
Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices. - Install the cooling fan shroud bolts.
Tighten
Tighten the bolts to 6 N.m (53 lb. in).

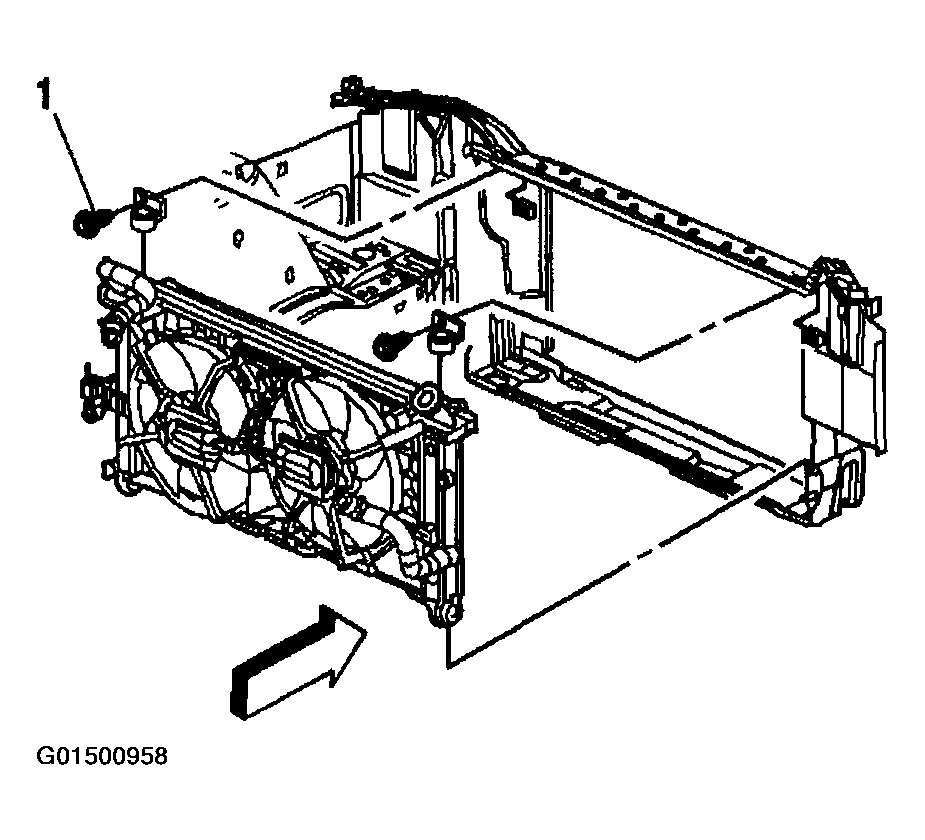

- Install the radiator upper mounts.
- Install the radiator upper mount bolts (1).
Tighten
Tighten the bolts to 10 N.m (88 lb. in).
- Install the coolant overflow hose to the radiator.
- Reposition the hose clamp to secure the coolant overflow hose using the J 38185.
- Install the upper radiator hose. Refer to RADIATOR HOSE REPLACEMENT - INLET .

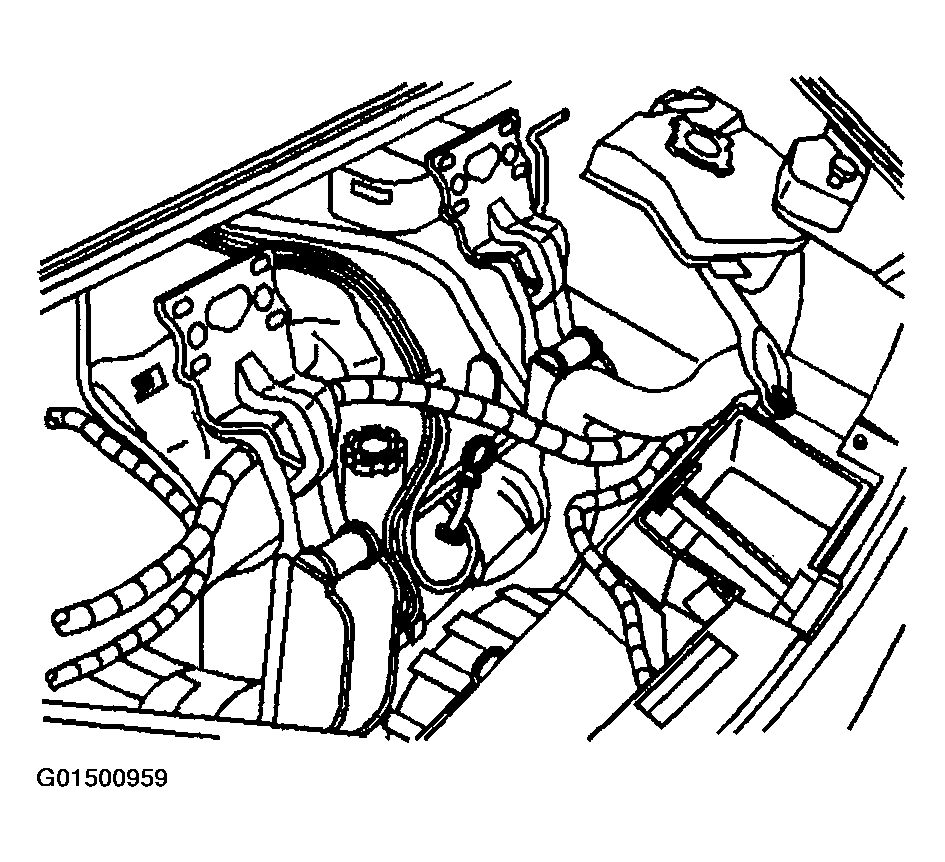

- Position the engine mount struts brackets flush with the upper radiator support.
- Install the engine mount strut bracket brace bolts to the upper radiator support.
Tighten
Tighten bolts to 28 N.m (21 lb ft).
- Tighten the engine mount strut nuts.
Tighten
Tighten the nuts to 48 N.m (35 lb ft).
- Install right side diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL - RIGHT in Body Front End.

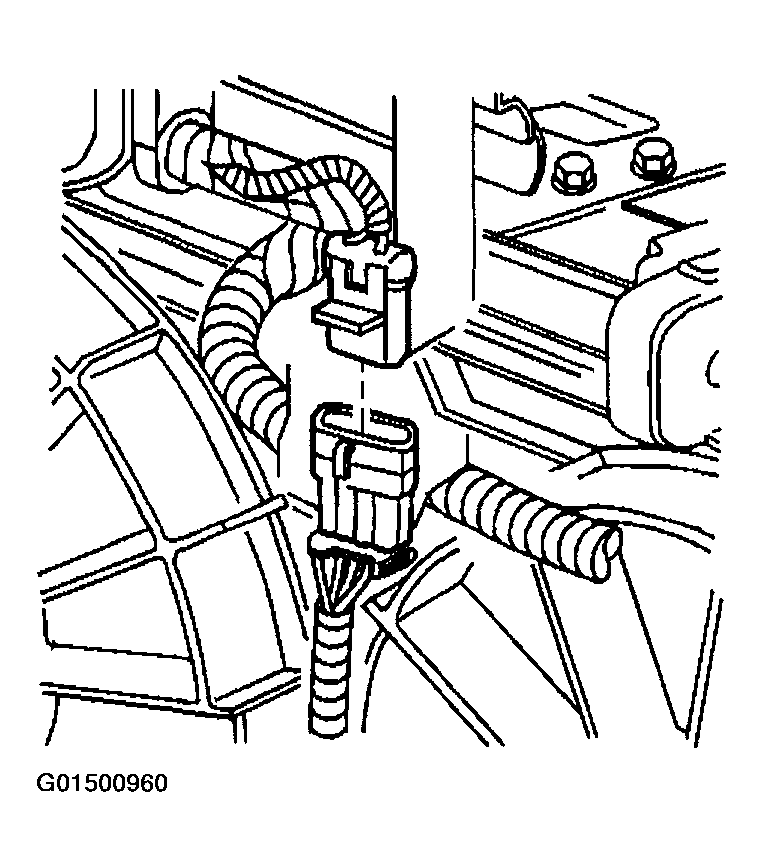

- Install the cooling fan harness electrical connector.
- Install the air cleaner and duct assembly.
