Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the cooling fan motor.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws to the cooling fan motor.
Tighten

Tighten the screws to 6 N.m (53 lb. in).

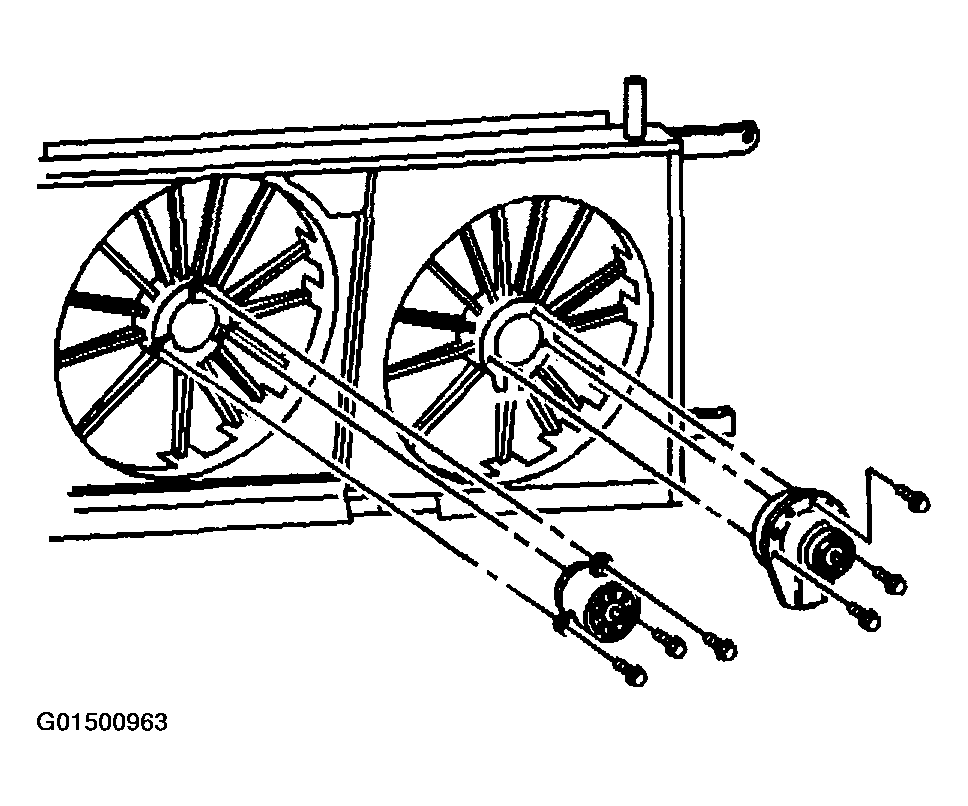

Fig 1: Installing Screws And Cooling Fan Motor
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the cooling fan motor.
Install the cooling fan to the shroud.
Important: Turn the cooling fan nut counterclockwise to tighten.
Install the cooling fan nut.
Tighten

Tighten the nut to 6 N.m (53 lb. in).
Install the cooling fan and shroud assembly. Refer to COOLING FAN REPLACEMENT - ELECTRIC .

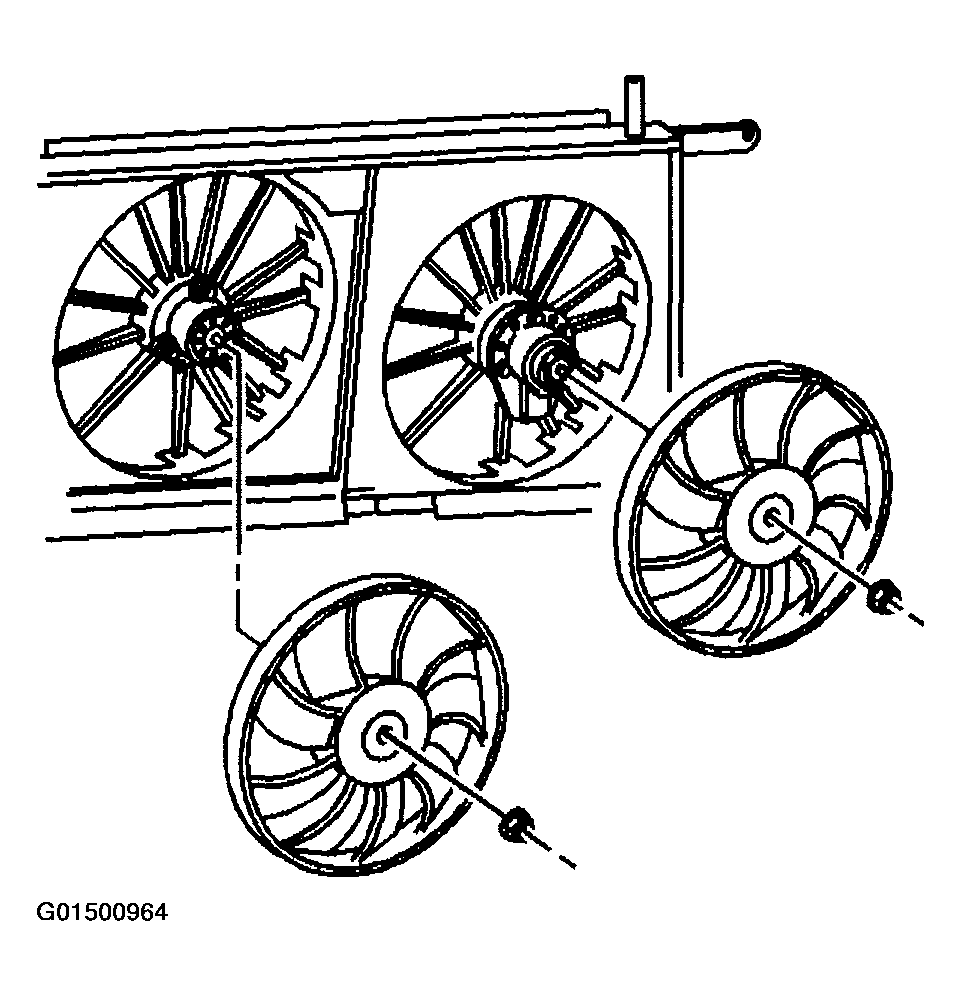

Fig 2: Installing Cooling Fan And Shroud Assembly

Courtesy of GENERAL MOTORS CORP.

Install the thermostat.

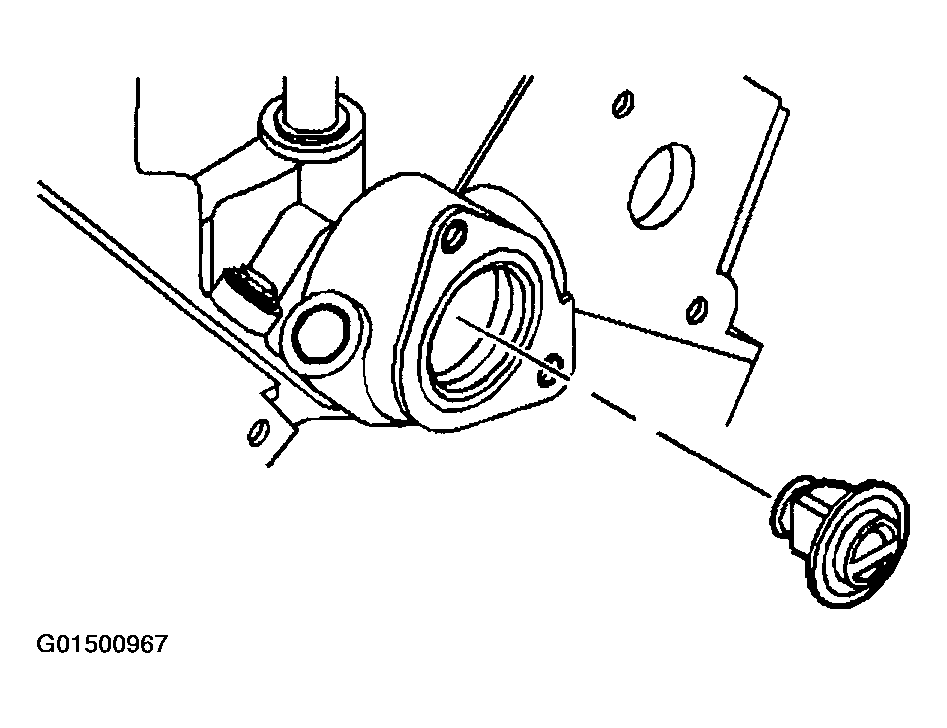

Fig 1: Installing Thermostat
Courtesy of GENERAL MOTORS CORP.

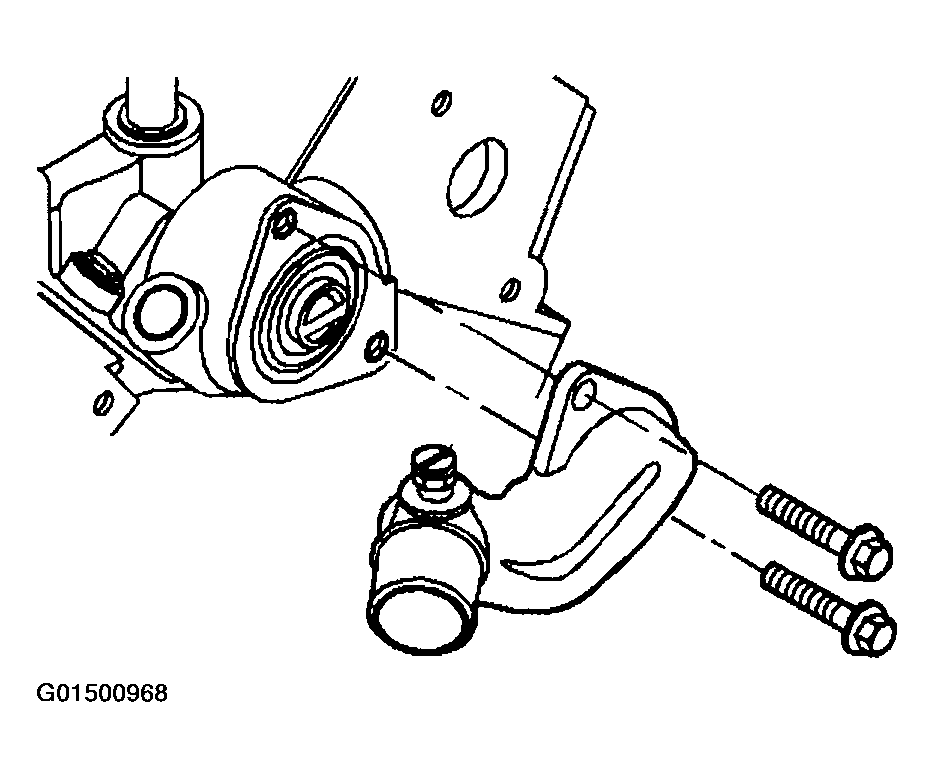

Install the thermostat housing and gasket.

Fig 2: Installing Thermostat Housing And Bolt
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the thermostat housing bolts.
Tighten

Tighten the bolts to 25 N.m (18 lb ft).
Install the radiator hose to the thermostat housing.
Install the crossover exhaust pipe. Refer to EXHAUST CROSSOVER PIPE REPLACEMENT in Engine Exhaust.
Install the air cleaner and duct assembly. Refer to in Engine Controls - 3.4L.
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

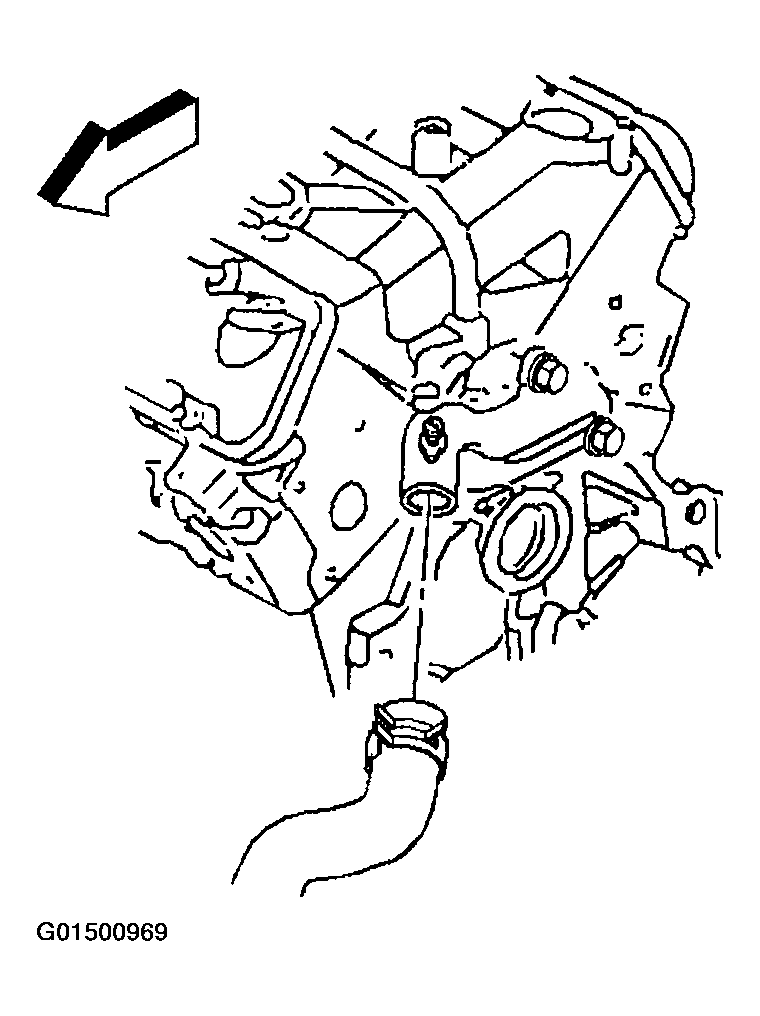

Fig 3: Installing Radiator Hose To Thermostat Housing

Courtesy of GENERAL MOTORS CORP.
