Underdrive Clutch Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

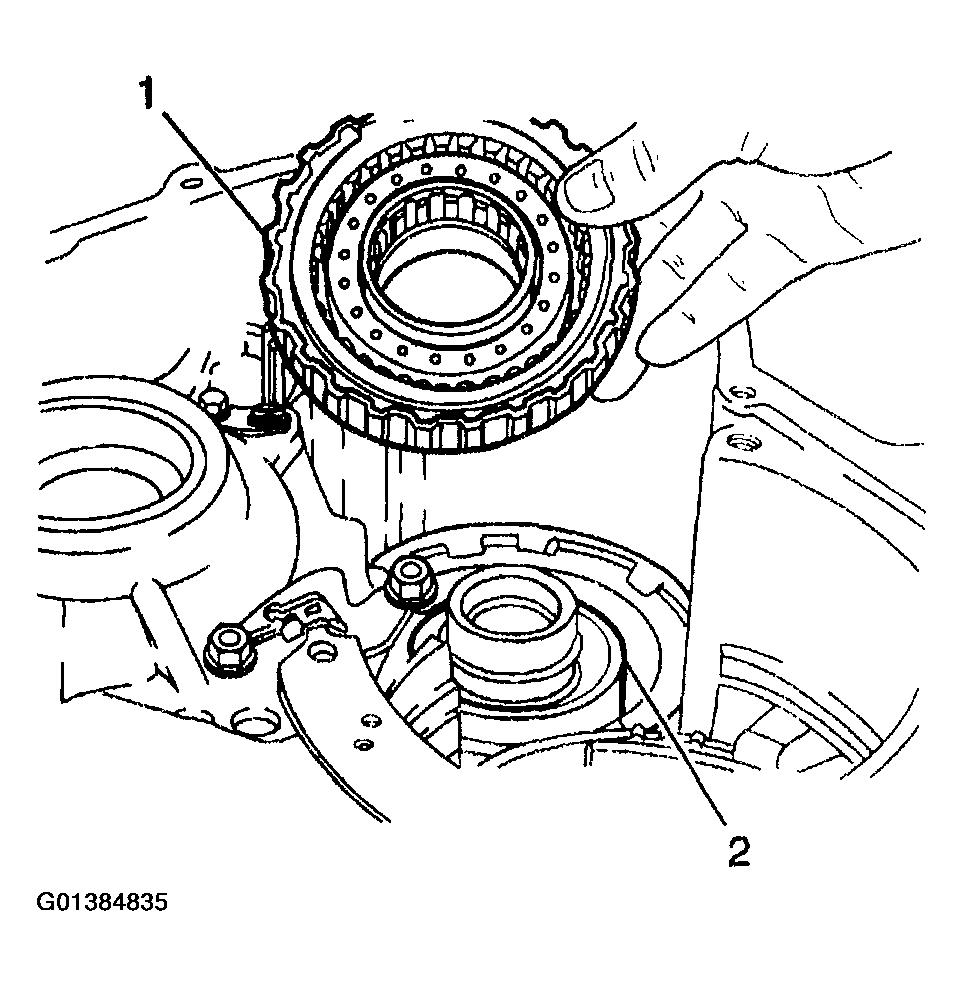

Remove the underdrive clutch assembly (1) from the underdrive one-way clutch and the underdrive brake assembly (2).

Fig 1: Removing Underdrive Clutch Assembly
Courtesy of GENERAL MOTORS CORP.

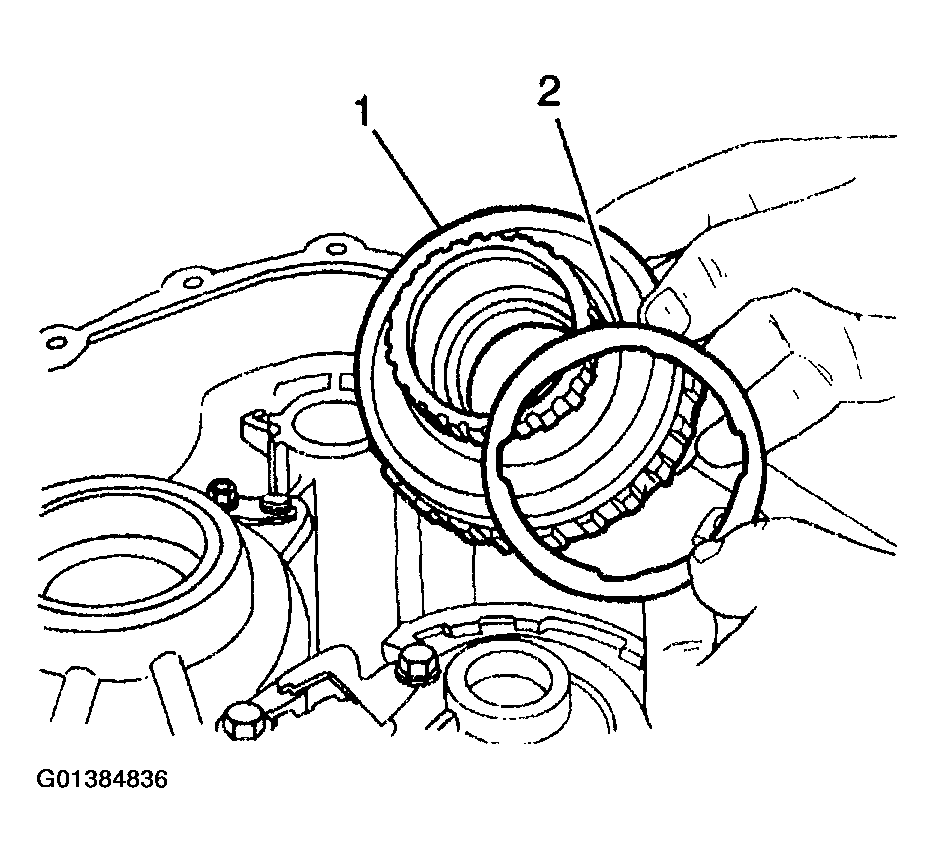

Remove the underdrive clutch thrust washer (2) from the rear of the underdrive clutch drum (1).

Fig 2: Removing Underdrive Clutch Thrust Washer
Courtesy of GENERAL MOTORS CORP.

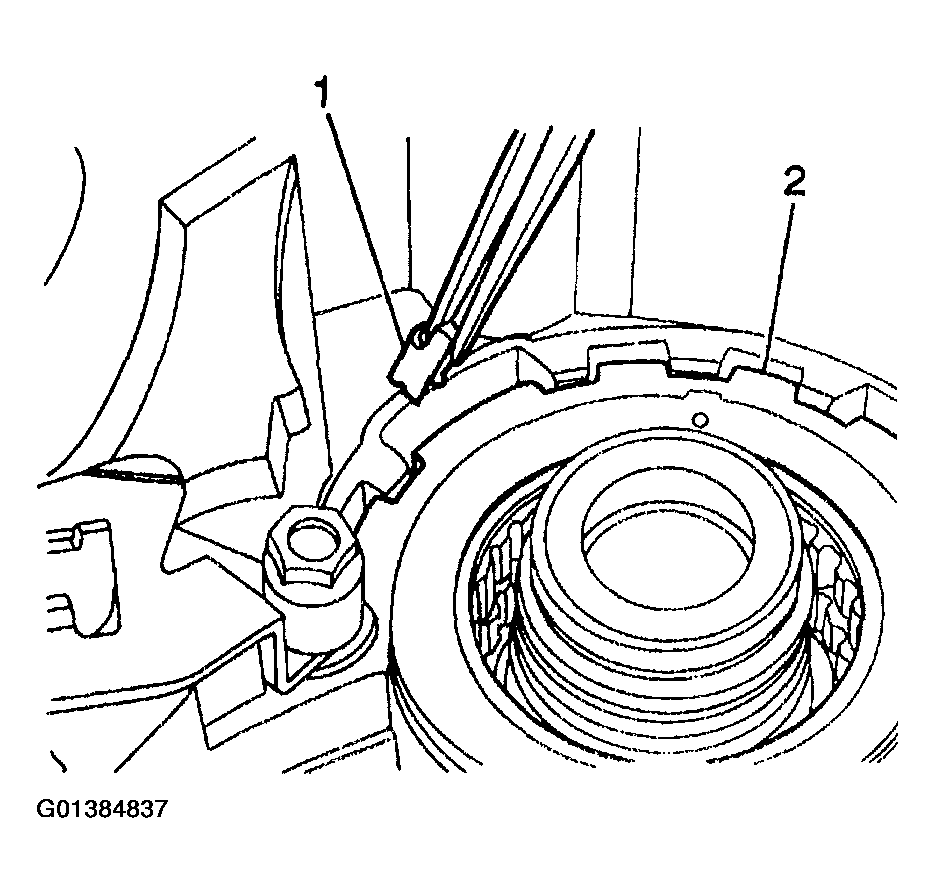

Remove the underdrive one-way clutch anti-rattle clip (1) from the transaxle case.

Fig 3: Removing Underdrive One-Way Clutch Anti-Rattle Clip
Courtesy of GENERAL MOTORS CORP.

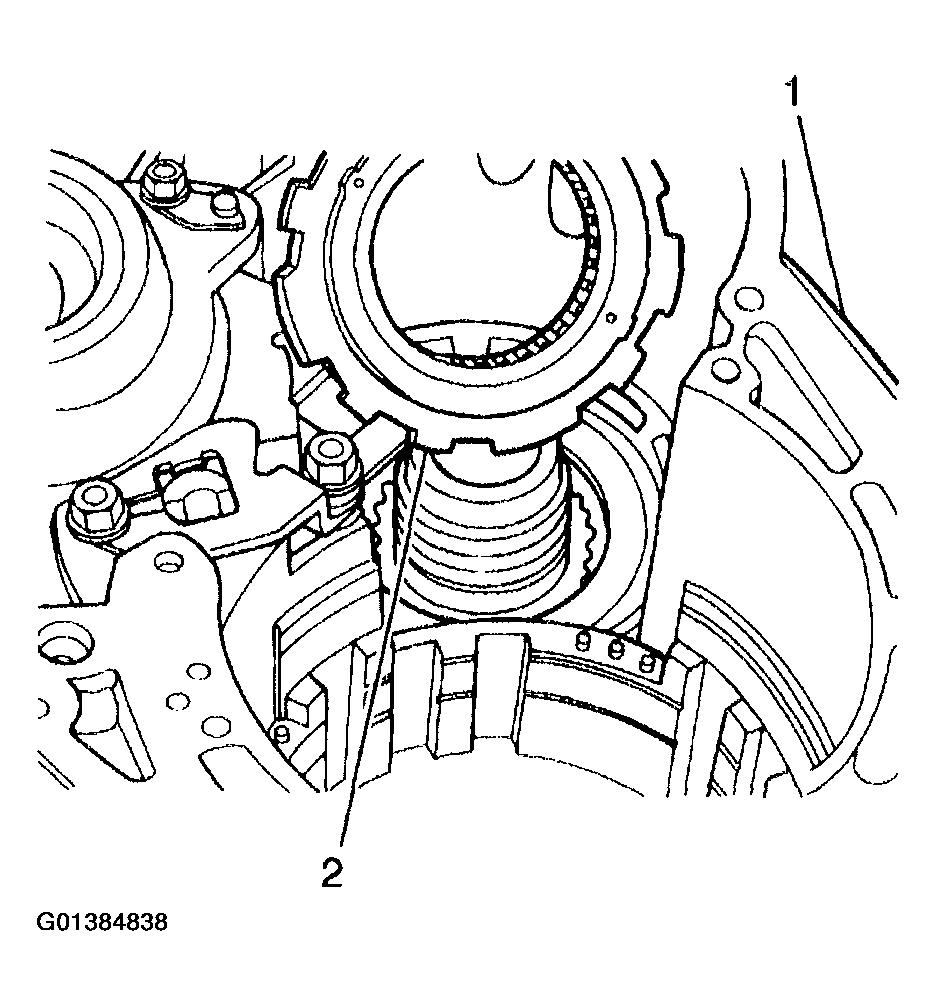

Remove the underdrive one-way clutch (2) from the transaxle case (1).

Fig 4: Removing Underdrive One-Way Clutch
Courtesy of GENERAL MOTORS CORP.
