Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intermediate shaft seal ring (1) from the intermediate shaft.
    Fig 1: Removing Intermediate Shaft Seal Ring
    G01384910Courtesy of GENERAL MOTORS CORP.
  2. Remove the following components from the rear planetary ring gear flange on the intermediate shaft:
    • The rear planetary ring gear snap ring (2)
    • The rear planetary ring gear
  3. Clean all the intermediate shaft and countershaft drive gear components and dry thoroughly.

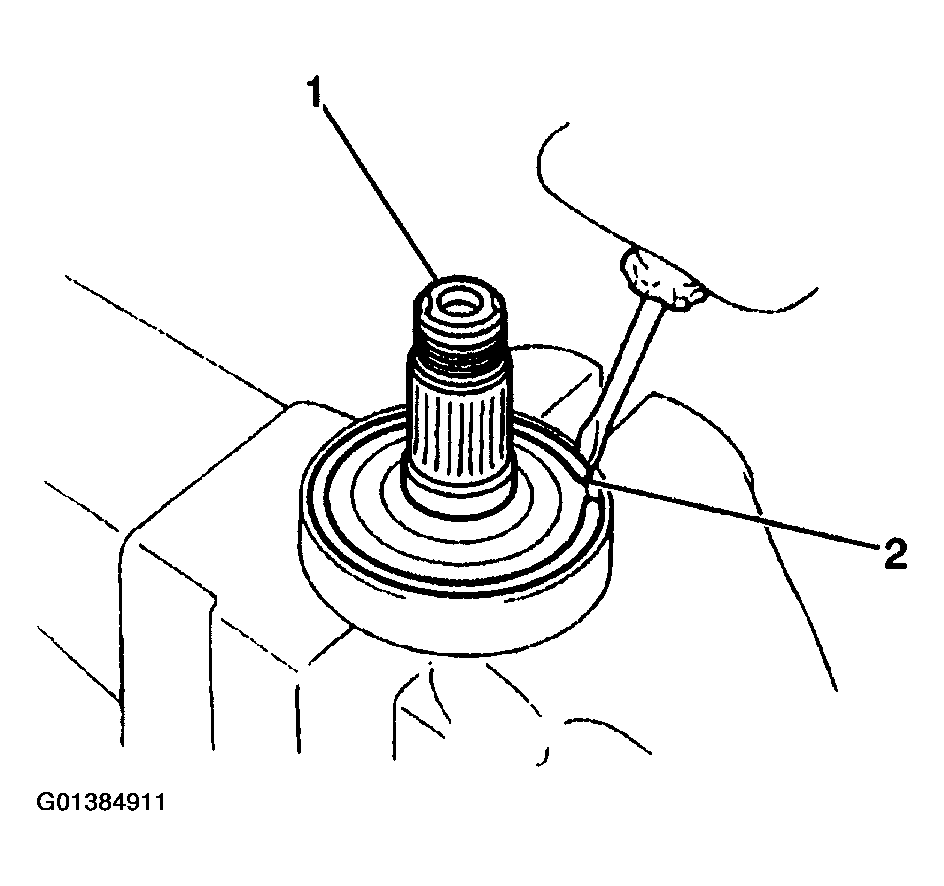

    Fig 2: Removing Rear Planetary Ring Gear Snap Ring
    G01384911Courtesy of GENERAL MOTORS CORP.
  4. Inspect the following components for excessive wear or damage and replace as necessary:
    • The intermediate shaft
    • The rear planetary ring gear flange
    • The countershaft drive gear
  5. Inspect the countershaft drive gear inner and outer bearings for excessive wear or damage. Replace the countershaft drive gear inner bearing and the countershaft drive gear as necessary.
