Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

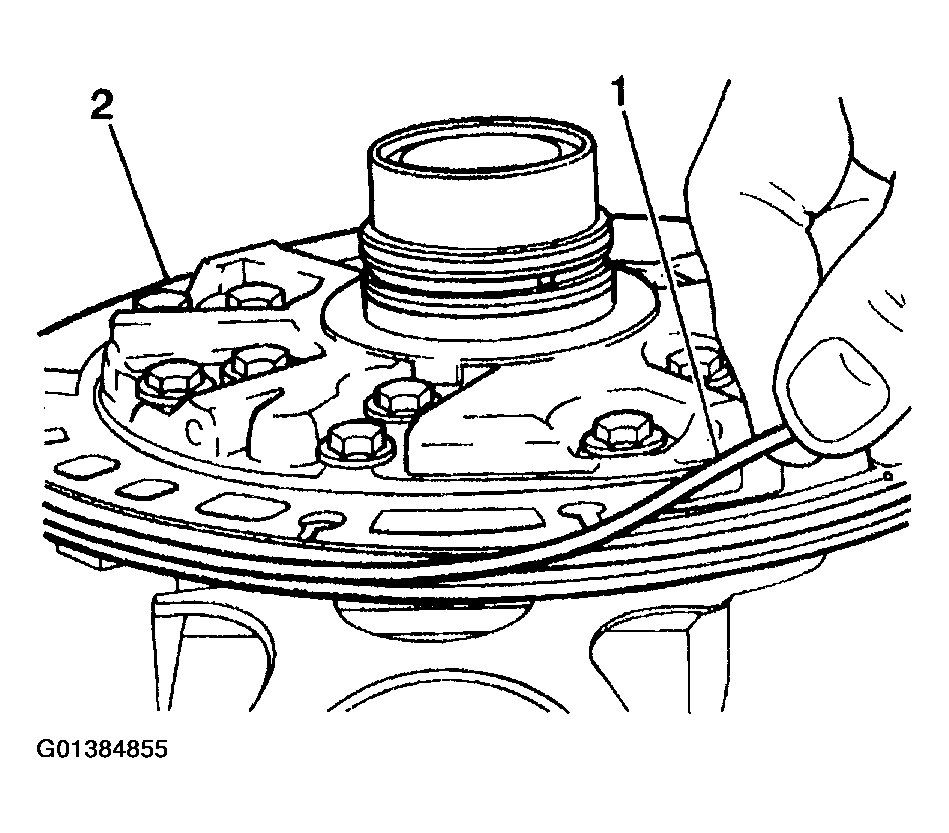

  1. Remove the fluid pump seal (1) from the fluid pump body (2).
    Fig 1: Removing Fluid Pump Seal
    G01384855Courtesy of GENERAL MOTORS CORP.

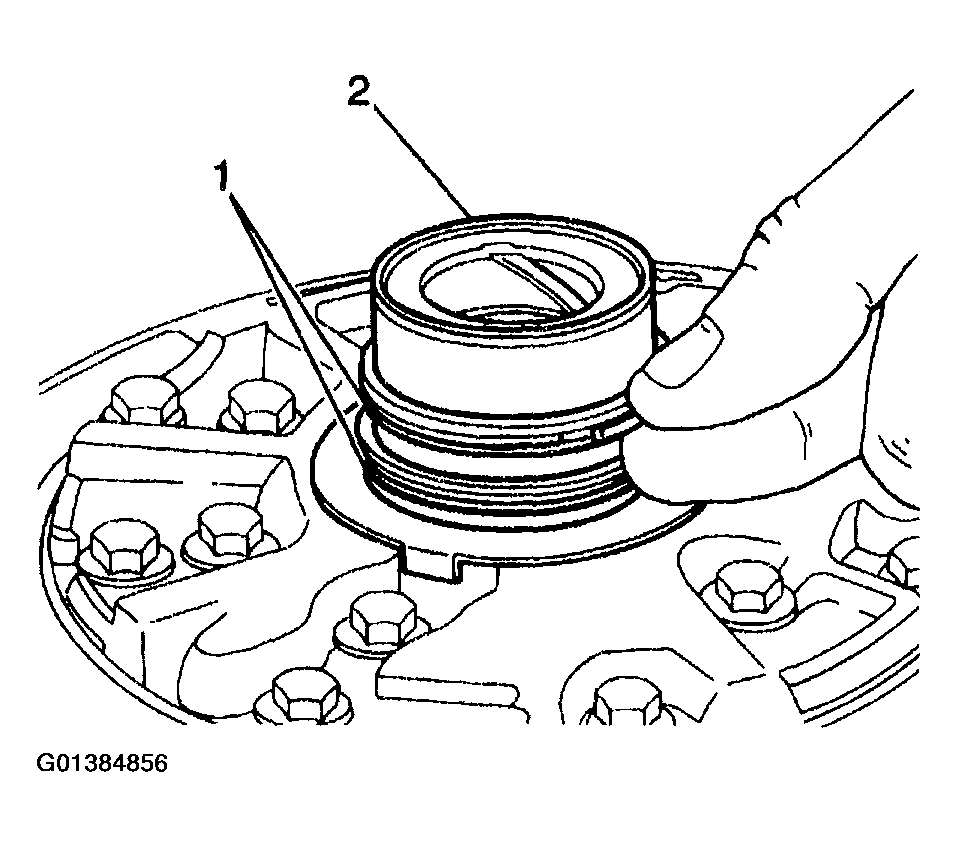

  2. Remove the stator shaft seal rings (1) from the fluid pump stator shaft (2).
    Fig 2: Removing Stator Shaft Seal Rings
    G01384856Courtesy of GENERAL MOTORS CORP.

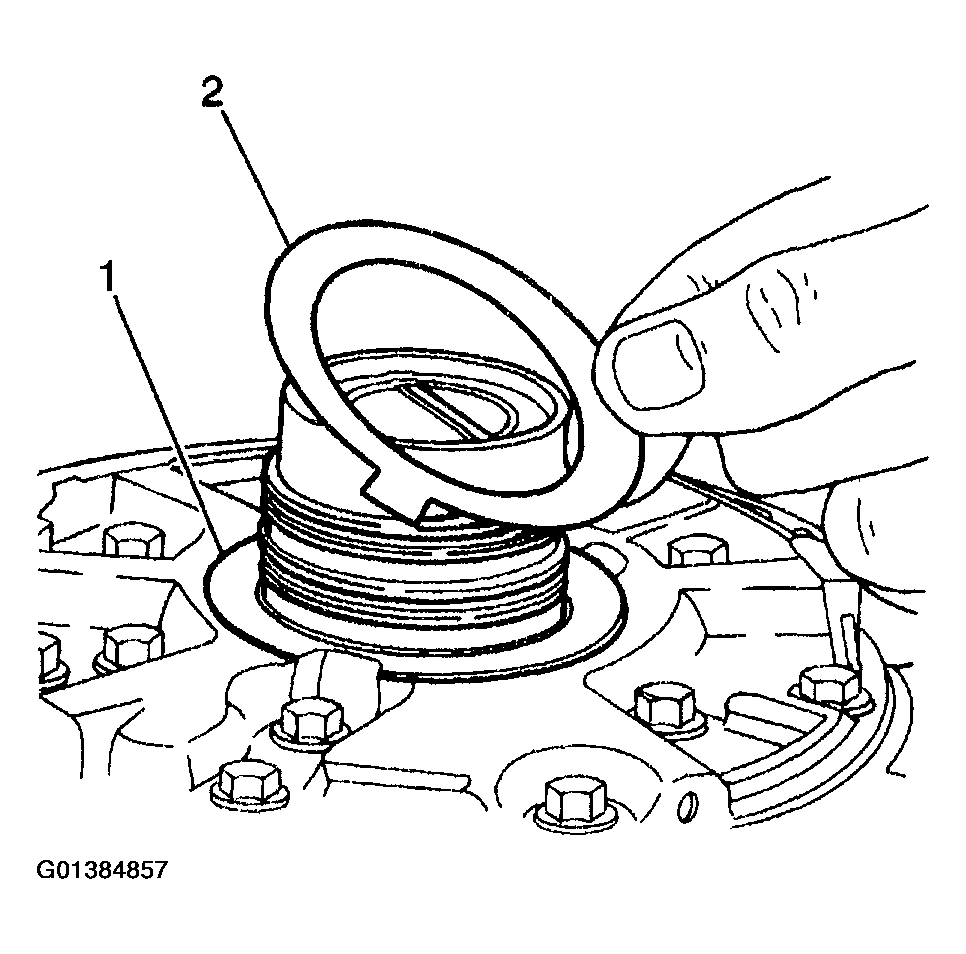

  3. Remove the fluid pump thrust washer (2) from the rear of the stator shaft cover (1).
    Fig 3: Removing Fluid Pump Thrust Washer
    G01384857Courtesy of GENERAL MOTORS CORP.

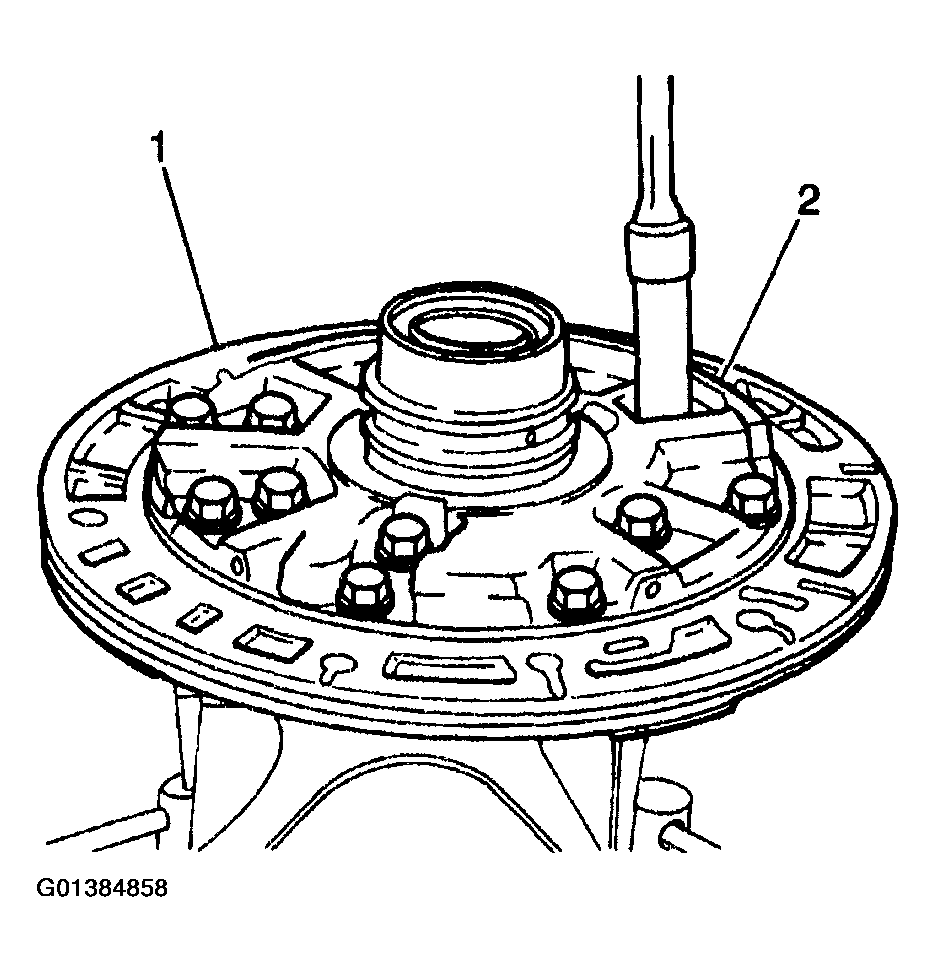

  4. Remove the eleven stator shaft bolts from the fluid pump body (1).
    Fig 4: Removing Stator Shaft Bolts
    G01384858Courtesy of GENERAL MOTORS CORP.

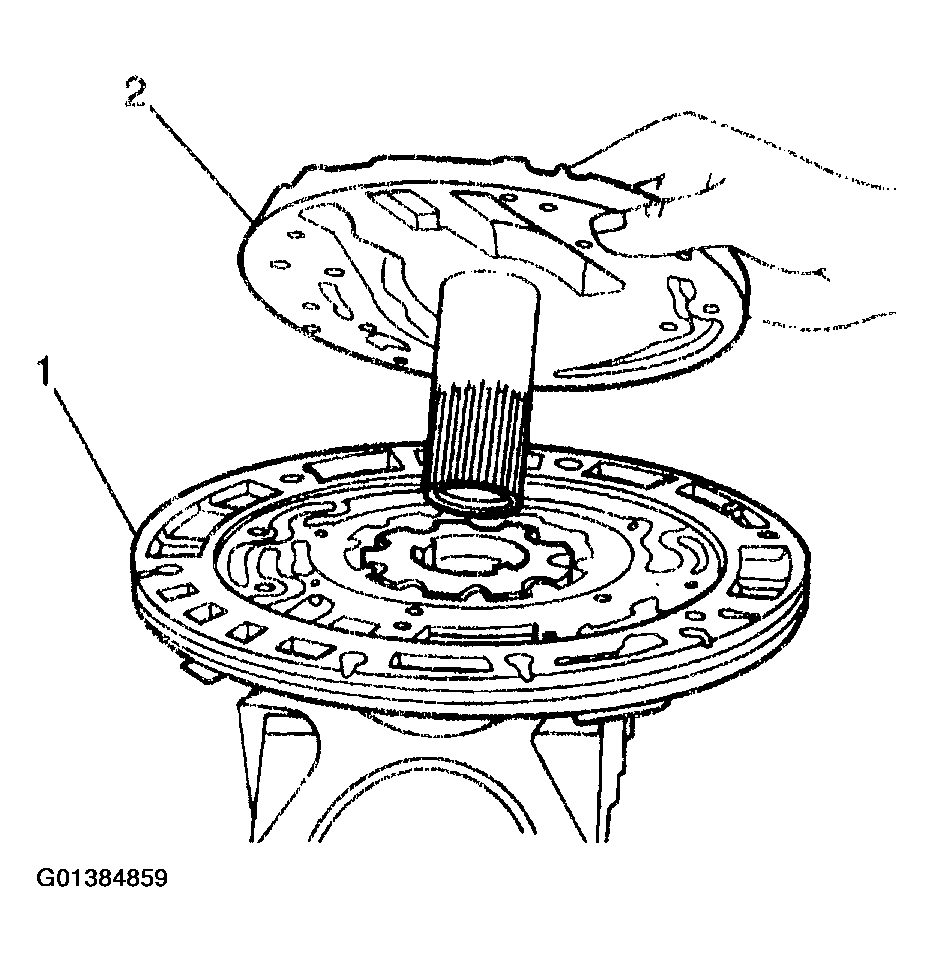

  5. Remove the stator shaft (2) from the fluid pump body (1).
  6. Remove the input shaft seal from the fluid pump body.
  7. Clean all of the fluid pump components and dry the components thoroughly
  8. Inspect the following and components for excessive wear or damage and replace as necessary:
    • The fluid pump drive gear
    • The driven gear
    • The stator shaft
  9. Inspect the fluid pump body and the stator shaft cover mating surfaces for distortion or warp.

    Replace the fluid pump assembly as necessary.

    Fig 5: Removing Stator Shaft Assembly
    G01384859Courtesy of GENERAL MOTORS CORP.

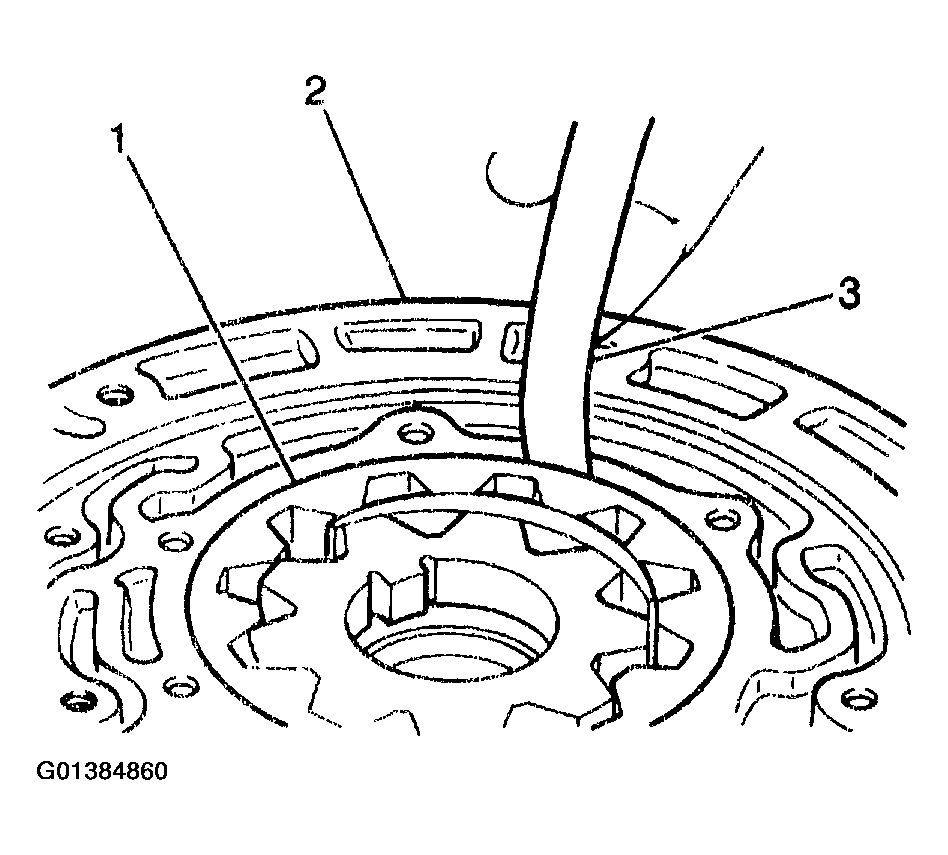

  10. Measure the pump body-to-driven gear clearance using a feeler gage (3).

    Push the fluid pump driven gear (1) to one side of the fluid pump body (2) and measure the gap on the opposite side.

    • Standard fluid pump body-to-driven gear clearance should measure between 0.070 to 0.150 mm (0.0028 to 0.0059 in)
    • If the fluid pump body-to-driven gear clearance exceeds 0.30 mm (0.012 in), replace the fluid pump assembly
    Fig 6: Measuring Fluid Pump Body-To-Driven Gear Clearance Using Feeler Gage
    G01384860Courtesy of GENERAL MOTORS CORP.

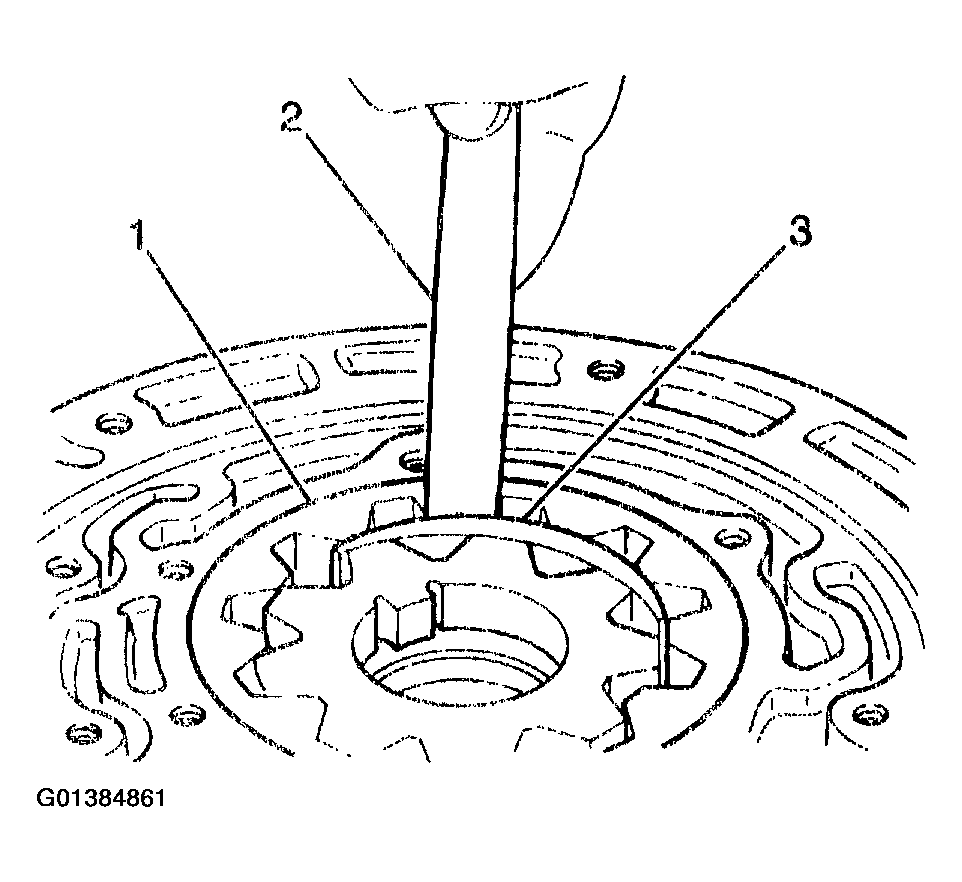

  11. Measure the fluid pump driven gear tip clearance using a feeler gage (2).

    Measure the gap between the fluid pump driven gear teeth (1) and the fluid pump gear crescent (3).

    • Standard fluid pump driven gear tip clearance should fall within 0.110-0.140 mm (0.0043-0.0055 in)
    • If the fluid pump driven gear tip clearance exceeds 0.30 mm (0.012 in), replace the fluid pump assembly
    Fig 7: Measuring Fluid Pump Driven Gear Tip Clearance Using Feeler Gage
    G01384861Courtesy of GENERAL MOTORS CORP.

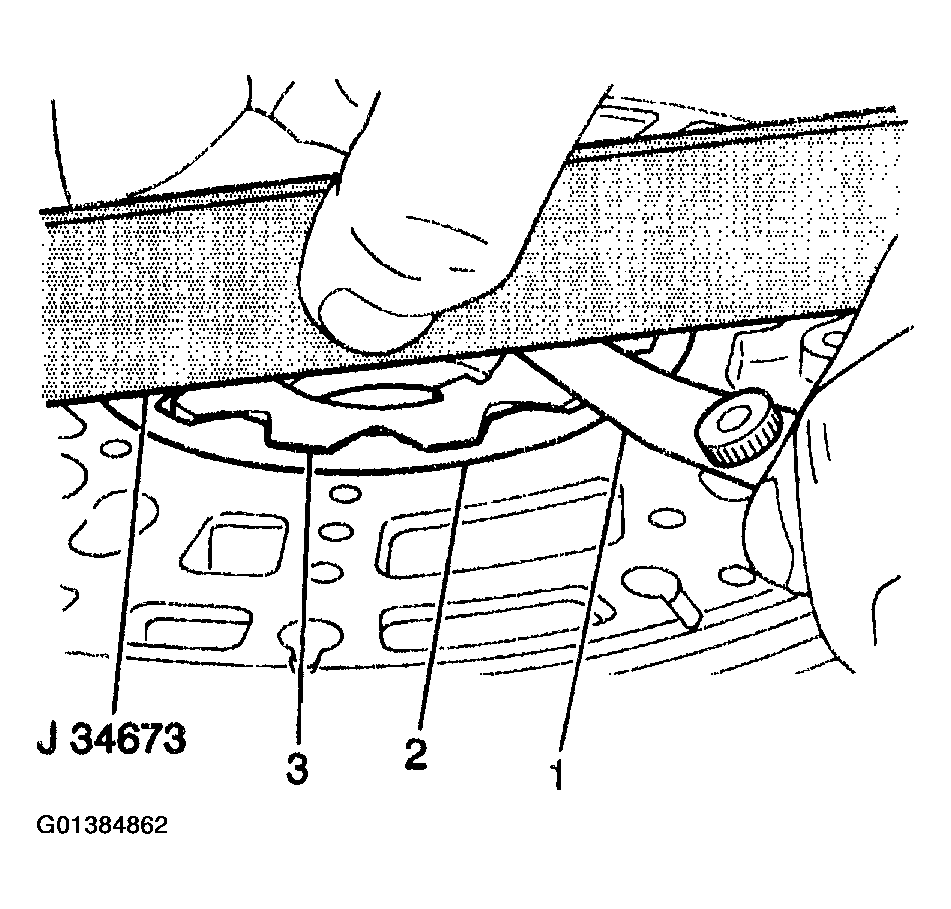

  12. Use a J 34673  and a feeler gage (1) in order to measure the fluid pump drive gear (3) and the fluid pump driven gear (2) side clearance.
    • Place the J 34673  across the fluid pump body and measure the clearance between the fluid pump drive gear and the fluid pump driven gear and the fluid pump body mating surface
    • The standard fluid pump drive gear and the fluid pump driven gear side clearance should fall within 0.0020-0.050 mm (0.0008-0.0020 in)
    • If the fluid pump drive gear and the fluid pump driven gear side clearance exceeds 0.10 mm (0.004 in), replace the fluid pump body
    Fig 8: Measuring Fluid Pump Drive Gear & Fluid Pump Driven Gear Side Clearance
    G01384862Courtesy of GENERAL MOTORS CORP.

    Important:  The fluid pump drive gear and the fluid pump driven gear are different sizes. If the thicker of the two gears is not within standard drive gear and driven gear side clearance, replace the fluid pump body.

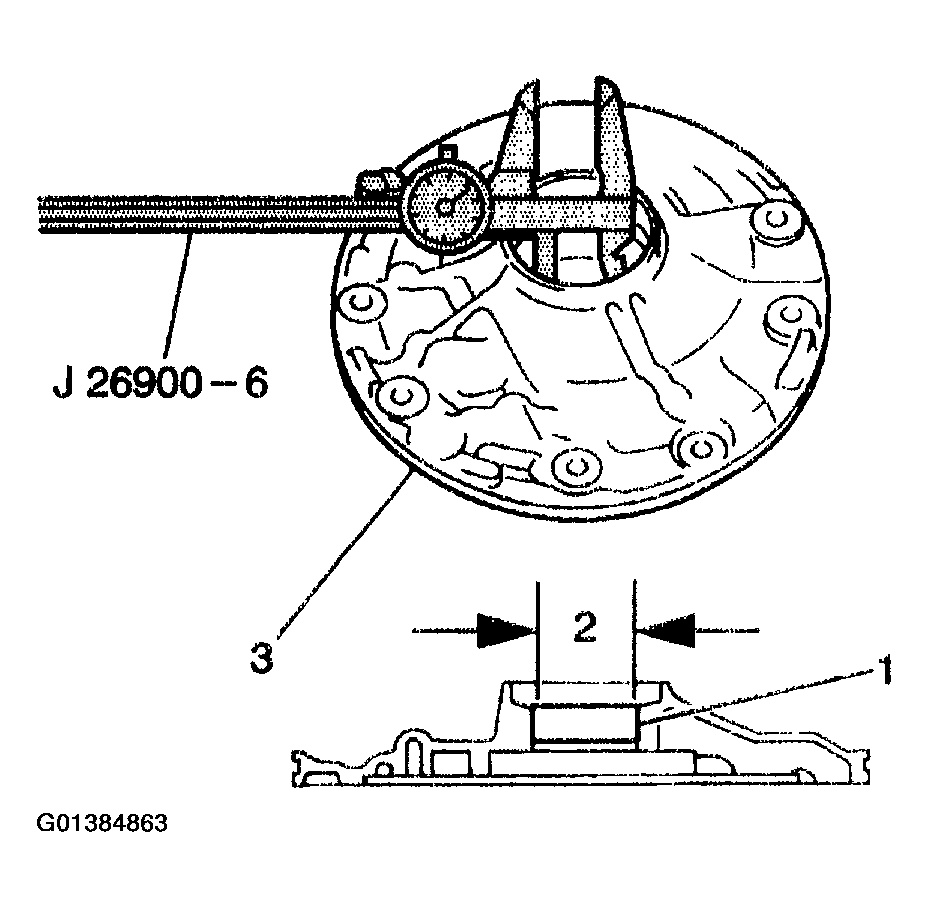

  13. Use a J 26900-6  in order to measure the fluid pump body bushing (1) inside diameter.
    • The maximum fluid pump body bushing inside diameter is 38.180 mm (1.5031 in) (2)
    • If the fluid pump body bushing inside diameter is greater than specified, replace the fluid pump body (3)
    Fig 9: Measuring Fluid Pump Body Bushing Inside Diameter Using J 26900-6
    G01384863Courtesy of GENERAL MOTORS CORP.

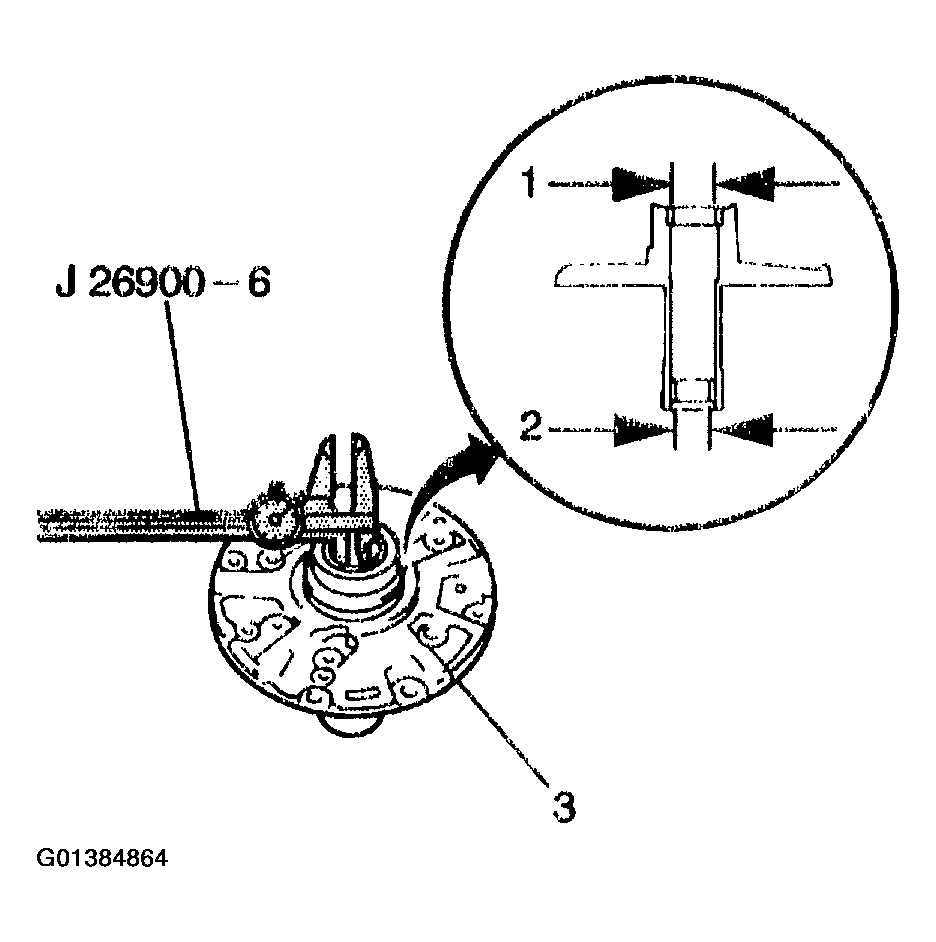

  14. Use a J 26900-6  in order to measure the inside diameter of the front and rear stator shaft bushings.

    The maximum inside diameter of the front and rear stator shaft bushings is:

    • Front bushing 21.570 mm (0.8492 in) (1)
    • Rear bushing 27.070 mm (1.0657 in) (2)
    • If the inside diameter of the front and rear stator shaft bushings is greater than specified, replace the stator shaft
    Fig 10: Measuring Inside Diameter Of Front & Rear Stator Shaft Bushings Using J 26900-6
    G01384864Courtesy of GENERAL MOTORS CORP.
