Rear Wheel Steering Schematics

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

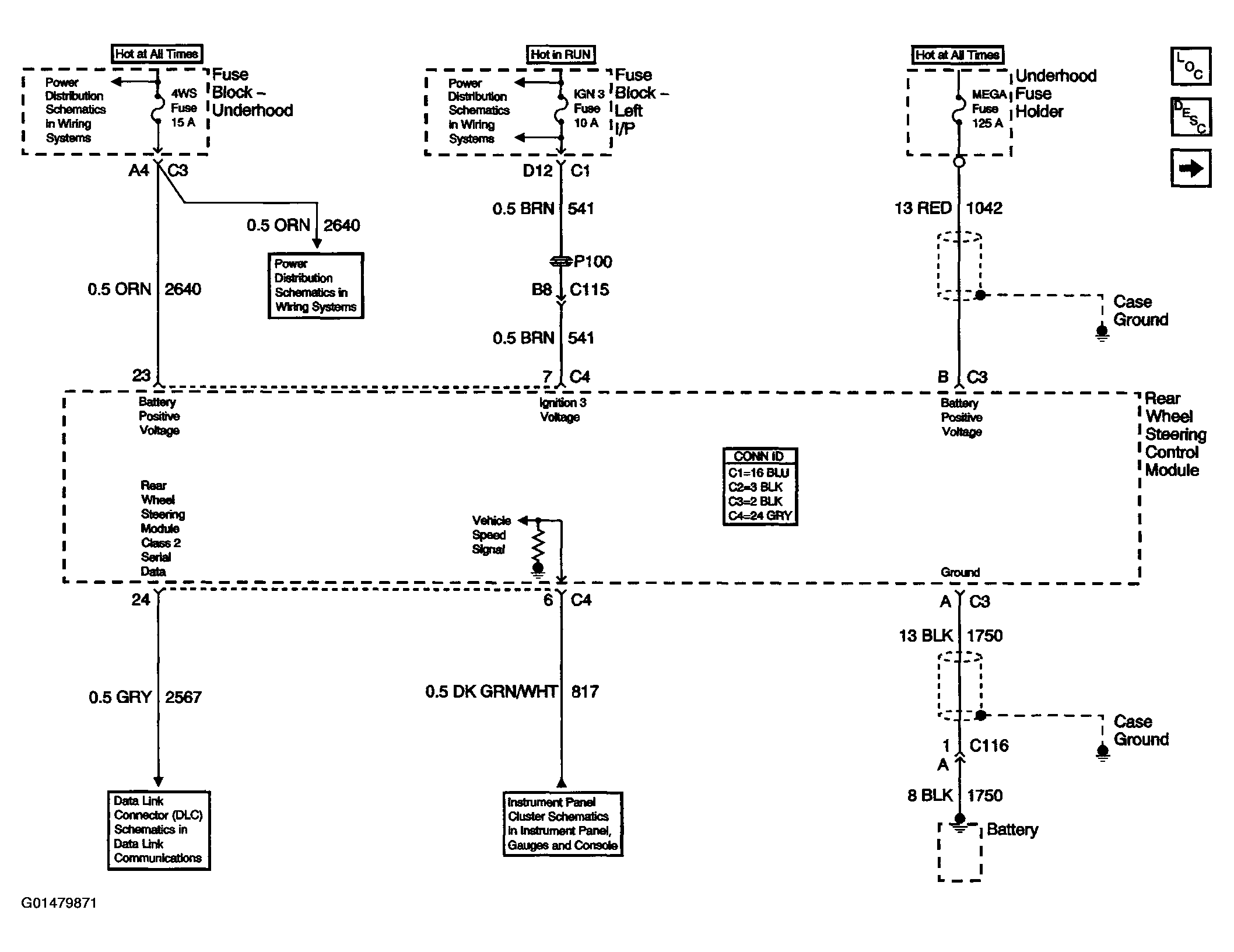

Fig 1: Rear Wheel Steering Schematics (Power, Ground, DLC & Vehicle Speed)

Courtesy of GENERAL MOTORS CORP.

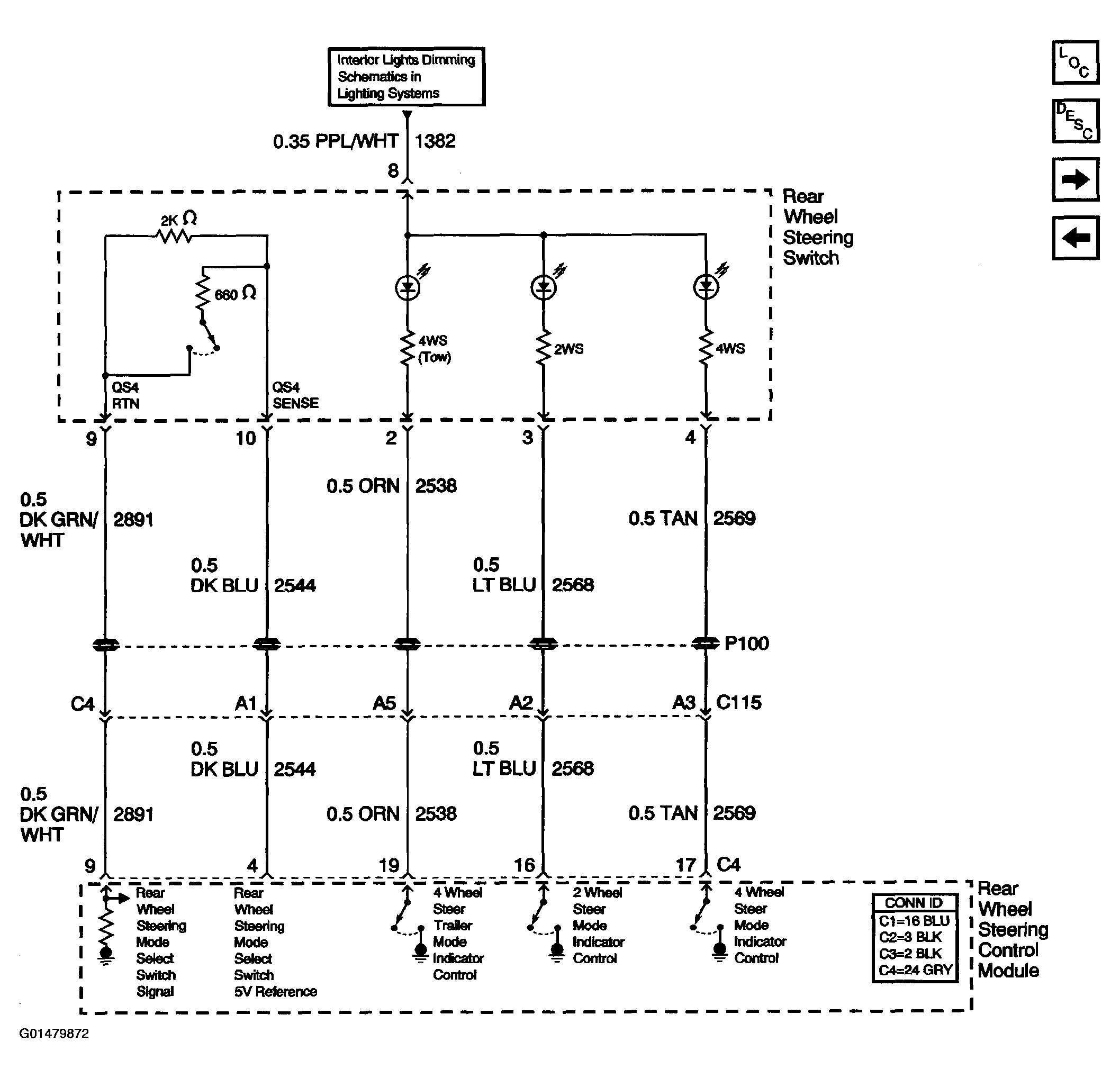

Fig 2: Rear Wheel Steering Schematics (Rear Wheel Steering Switch)

Courtesy of GENERAL MOTORS CORP.

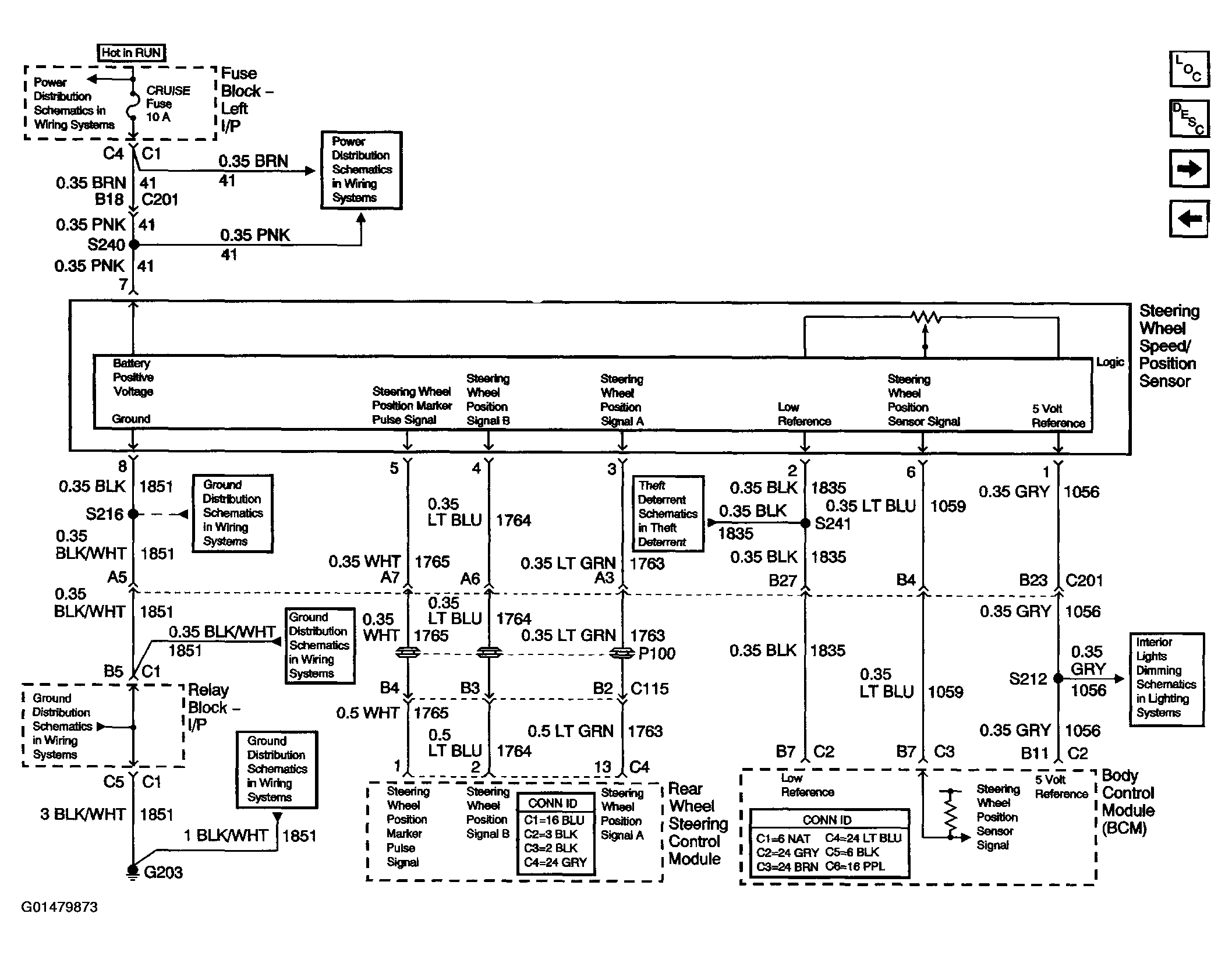

Fig 3: Rear Wheel Steering Schematics (Steering Wheel/Speed Position Sensor)

Courtesy of GENERAL MOTORS CORP.

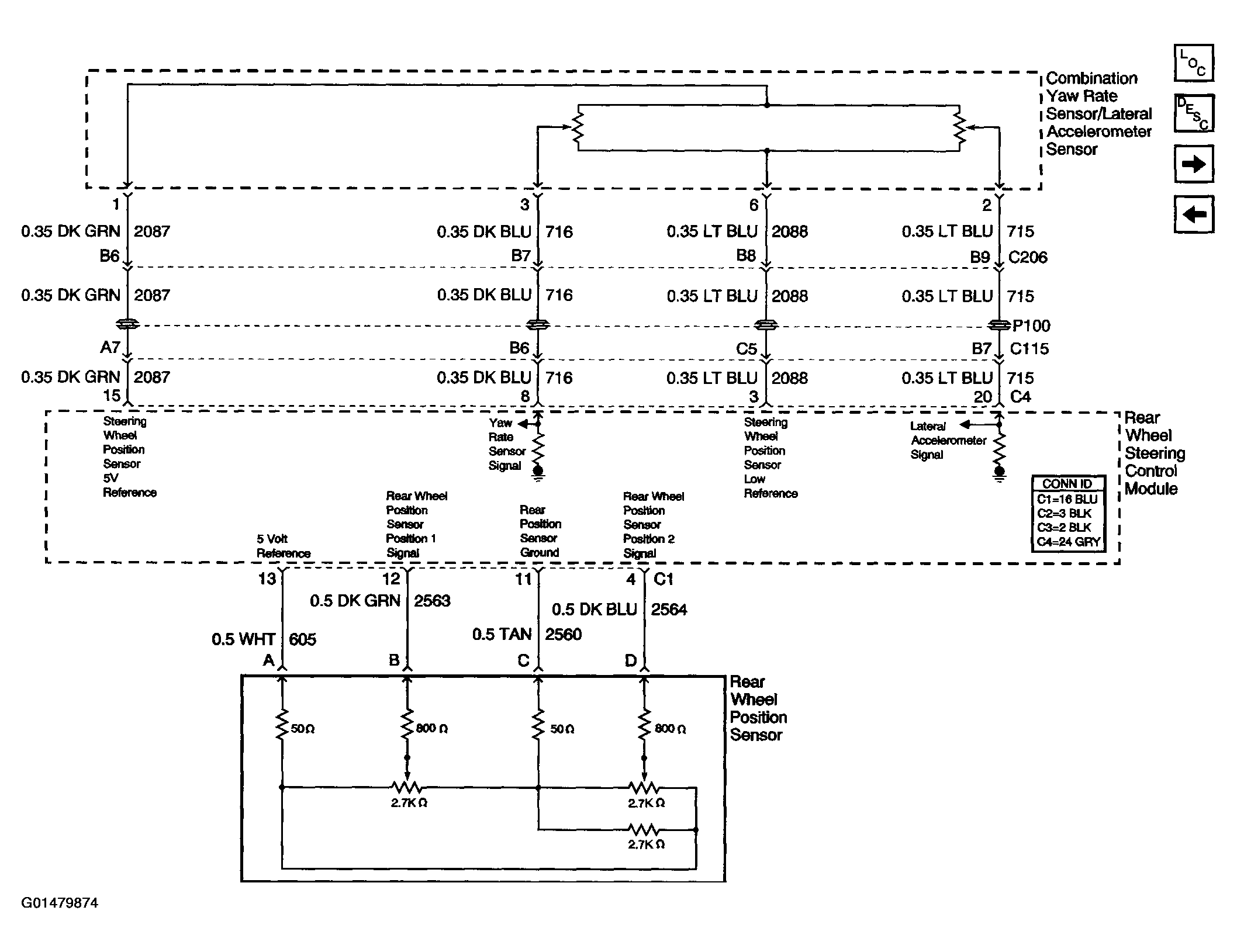

Fig 4: Rear Wheel Steering Schematics (YAW/LAT & Rear Wheel Position Sensors)

Courtesy of GENERAL MOTORS CORP.

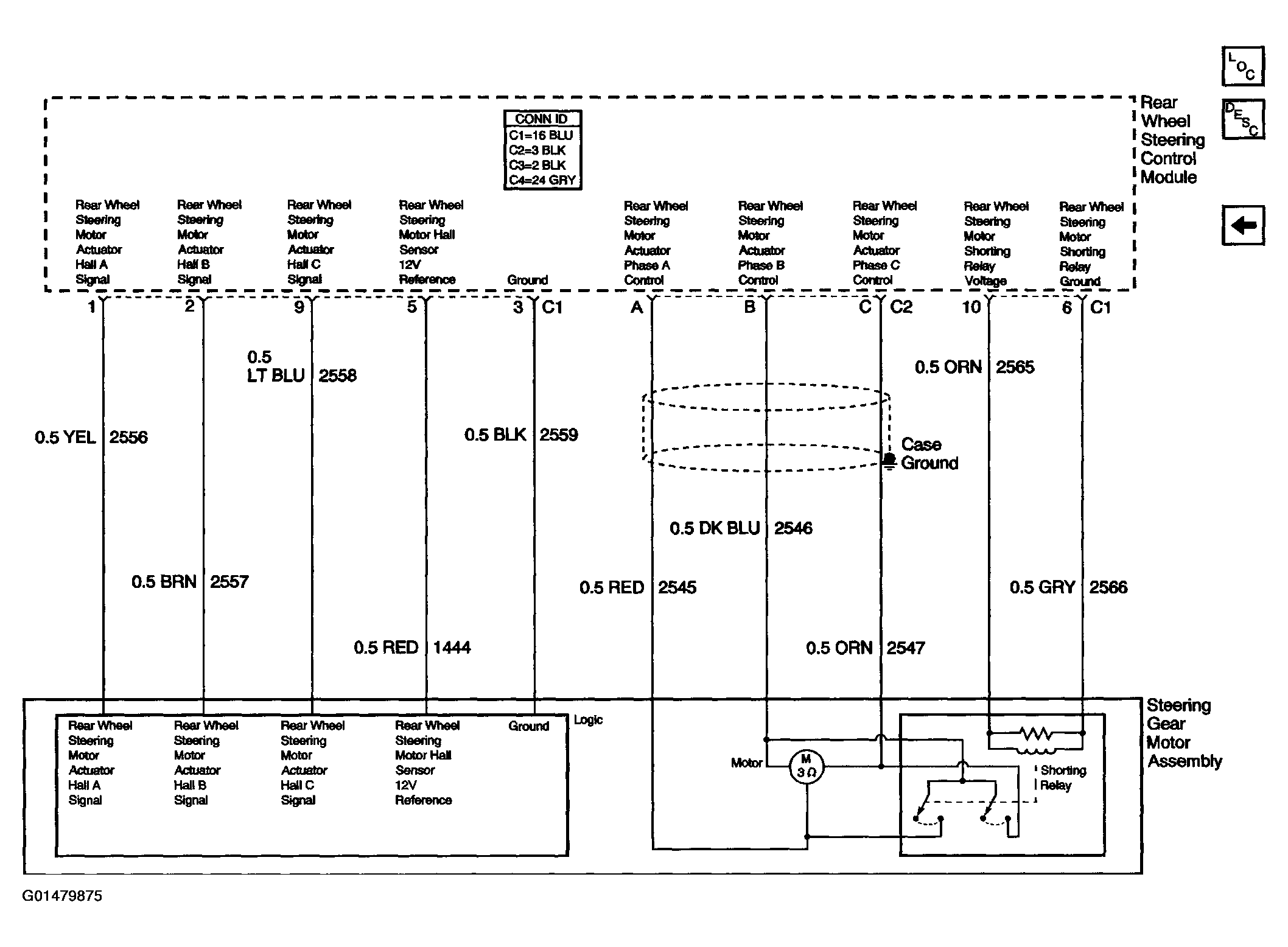

Fig 5: Rear Wheel Steering Schematics (Steering Gear Motor Assembly)

Courtesy of GENERAL MOTORS CORP.
