Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheel hub and bearing (3) to the vehicle.

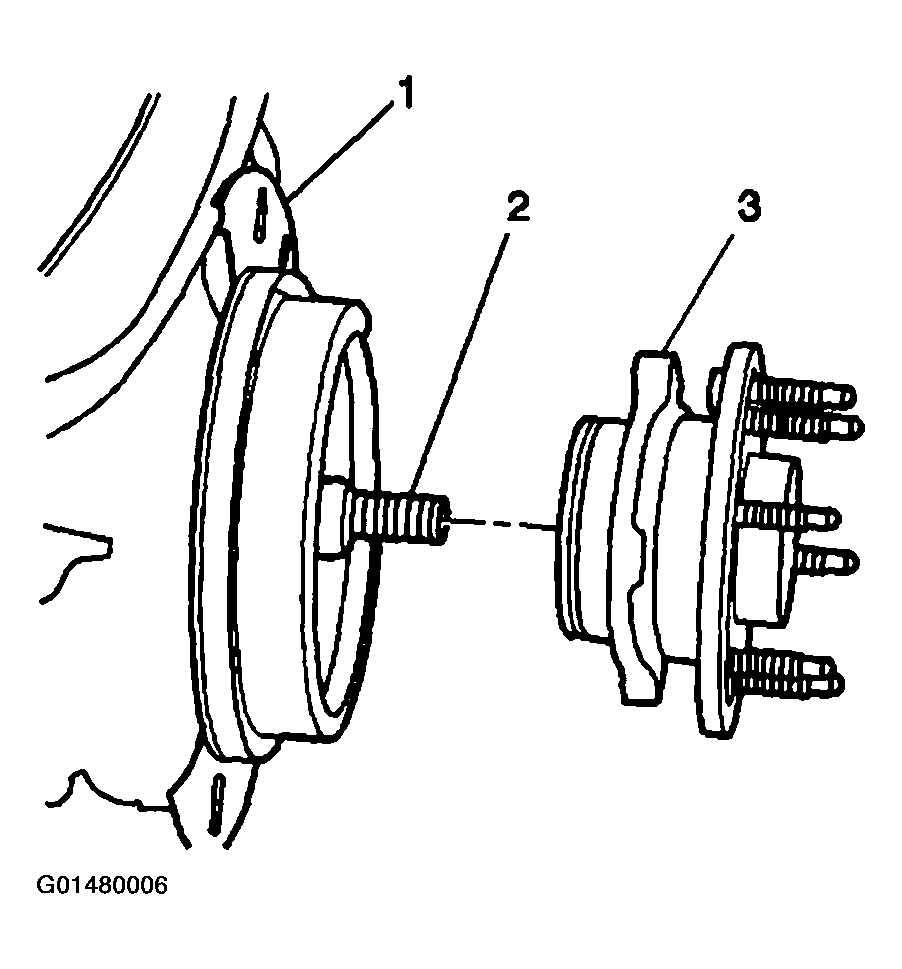

    Fig 1: Wheel Hub & Bearing
    G01480006Courtesy of GENERAL MOTORS CORP.
  2. Install the wheel hub and bearing retaining bolts.

    Tighten

    Tighten the bolts to 180 N.m (132 lb ft).

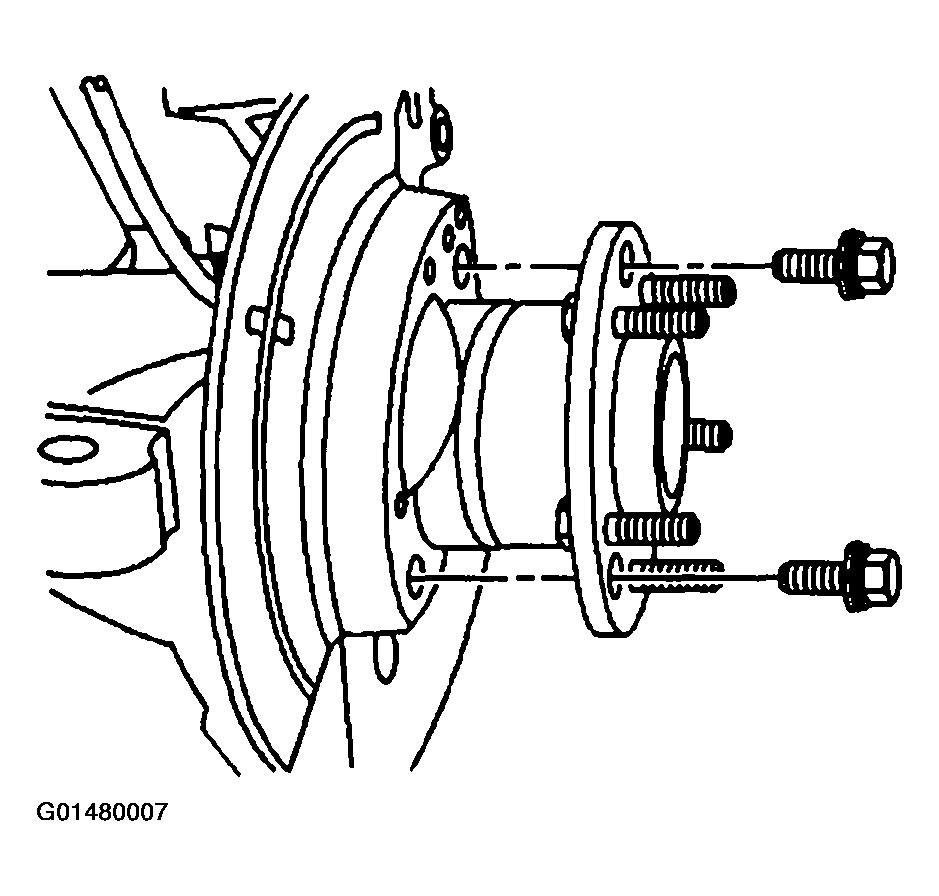

    Fig 2: Wheel Hub & Bearing Retaining Bolts
    G01480007Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the wheel drive shaft retaining nut.

    Tighten

    Tighten the nut to 250 N.m (184 lb ft).

  4. Install the retainer (3) and cotter pin (2) to the wheel drive shaft nut.
  5. Install the dust cap (4).
  6. Install the brake rotor. For rear brake rotor, refer to BRAKE ROTOR .
  7. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  8. Lower the vehicle.

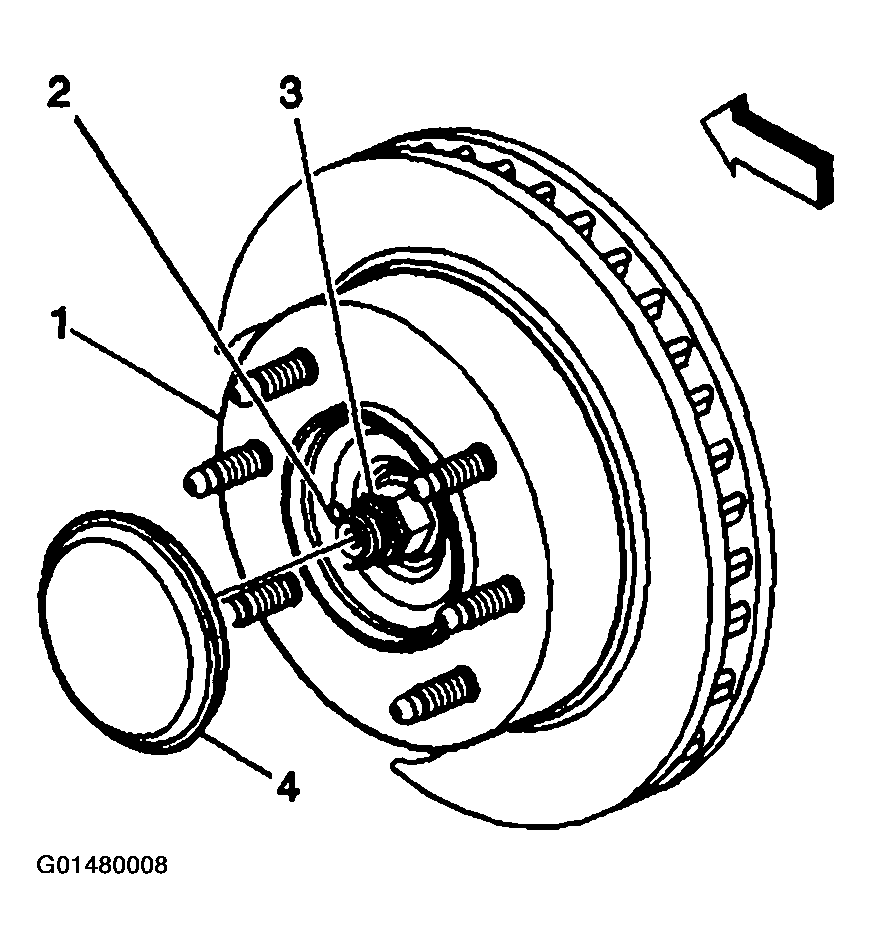

    Fig 3: Dust Cap, Cotter Pin & Retainer
    G01480008Courtesy of GENERAL MOTORS CORP.
