Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

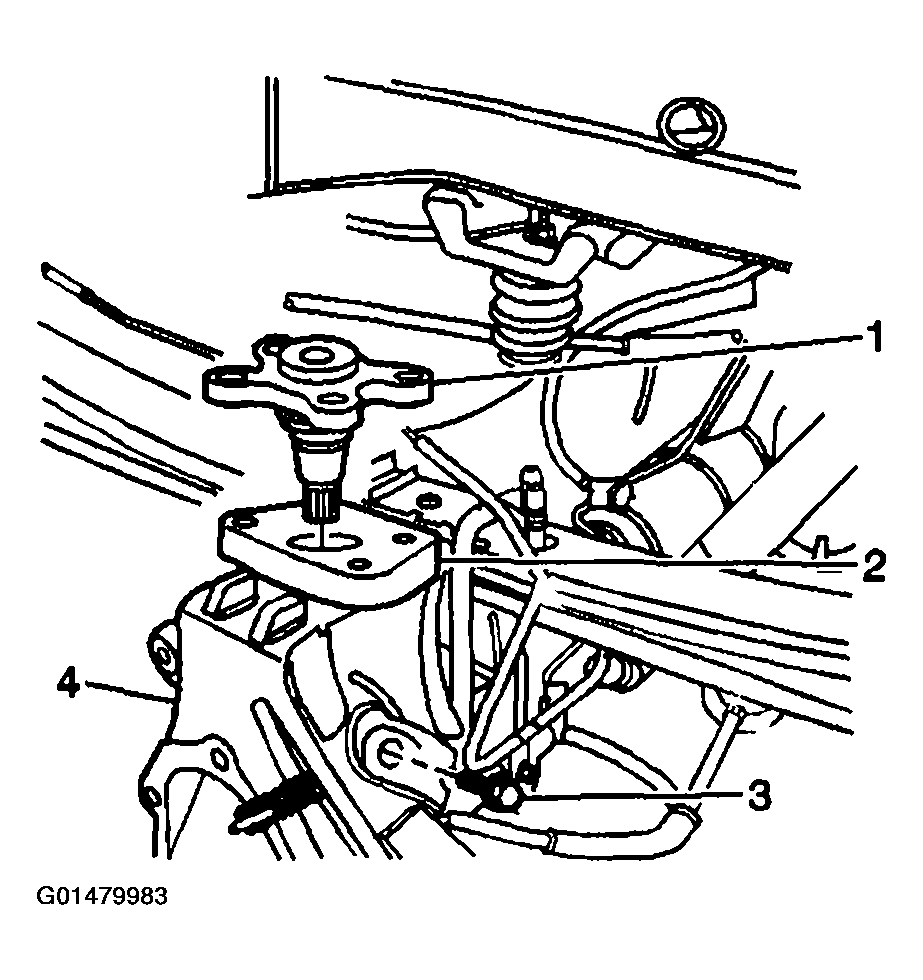

Install the upper ball joint (1) to the steering knuckle.

Fig 1: Upper Ball Joint
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

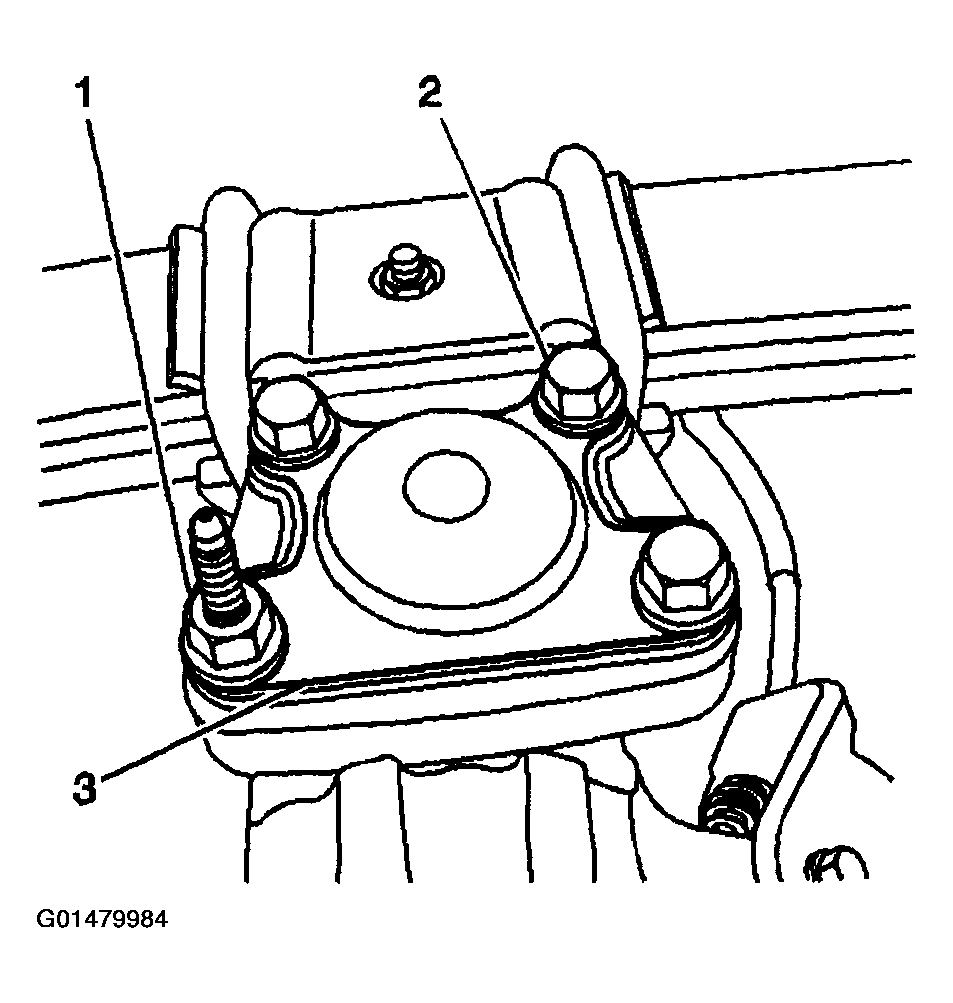

Install the upper ball joint retaining bolts (2) and stud (1).
Tighten

Tighten the bolts to 110 N.m (81 lb ft).

Fig 2: Upper Ball Joint Retaining Bolts & Stud
Courtesy of GENERAL MOTORS CORP.

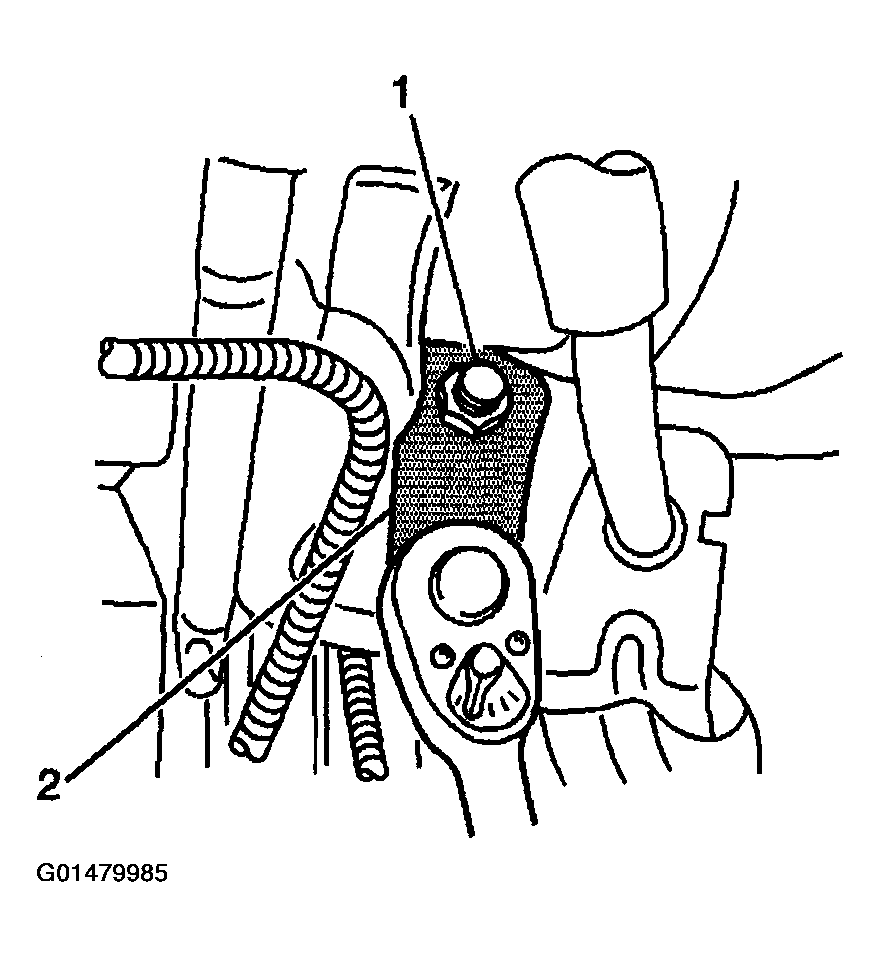

Install the nut (1) retaining the upper ball joint to the steering knuckle. Use the J 44664 (2) in order to tighten the joint.
Tighten

Tighten the upper ball joint to the steering knuckle nut to 200 N.m (147 lb ft).

Fig 3: Installing Upper Ball Joint Nut Using J 44664
Courtesy of GENERAL MOTORS CORP.

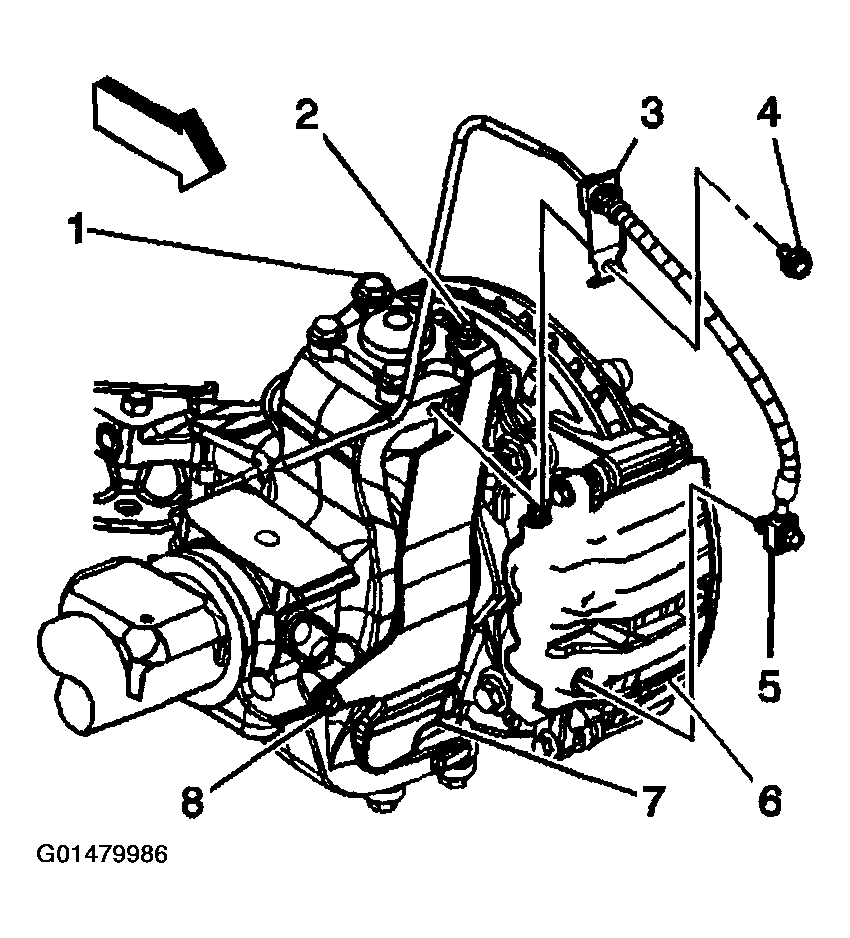

Install the bracket (7) to the axle.
Install the bolt (8) and nut (2) retaining the bracket to the axle.
Tighten

Tighten the bolt and nut to 25 N.m (18 lb ft).
Install the bolt (4) retaining the brake hose bracket (3) to the axle.
Tighten

Tighten the brake hose bracket retaining bolt to 12 N.m (106 lb in).
Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Lower the vehicle.

Fig 4: Brackets, Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.
Perform a four wheel alignment. Refer to MEASURING WHEEL ALIGNMENT (WITH REAR WHEEL STEERING) or MEASURING WHEEL ALIGNMENT (WITHOUT REAR WHEEL STEERING) .
