Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When lifting the vehicle do not allow the jack to touch the rear steering gear. If the jack touches the rear steering gear you may damage the gear or the rack and pinion boots. If the boots are damaged replace the rack and pinion boot.
  1. Raise the vehicle. Refer to JACKING AND LIFTING .
  2. Remove the spare tire from the vehicle.

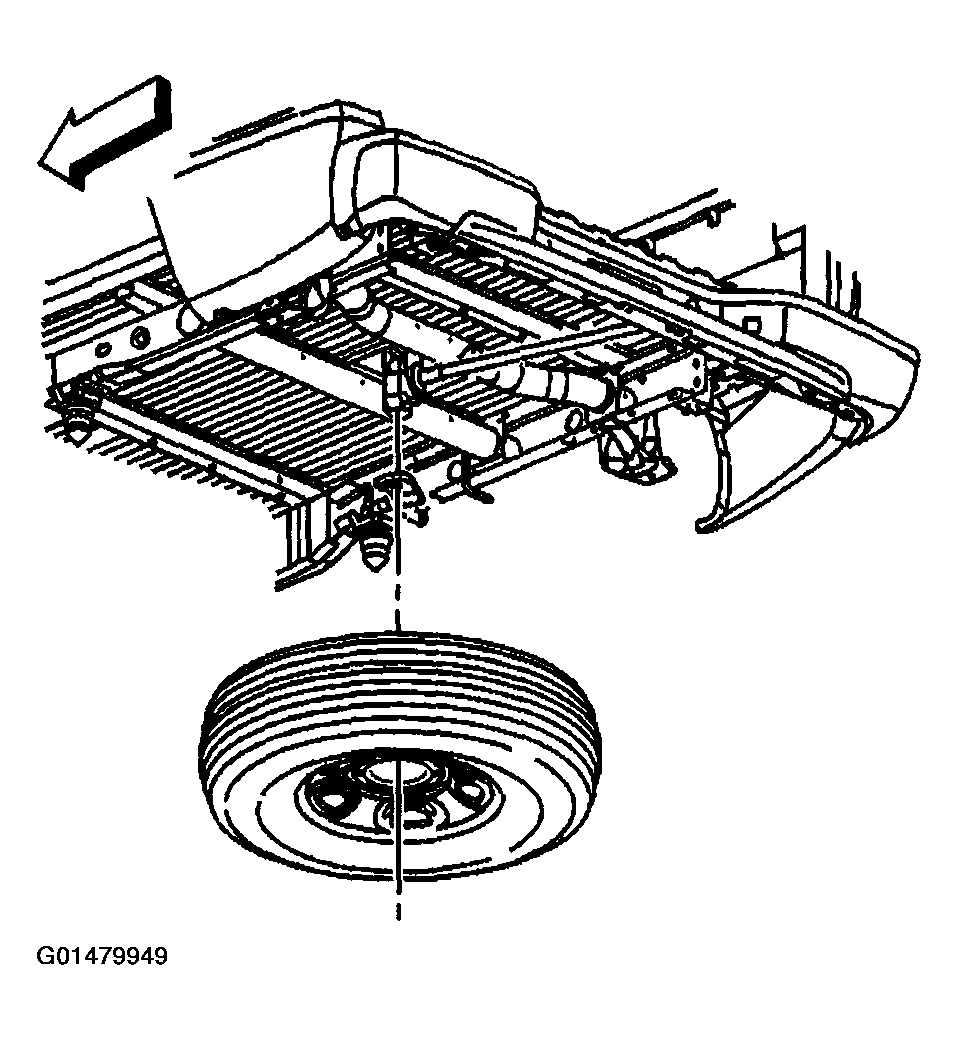

    Fig 1: Removing Spare Tire
    G01479949Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts (1) retaining the steering gear motor (2) to the steering gear.
  4. Remove the steering gear motor from the steering gear.
  5. Cover the steering gear motor opening to keep contamination out of the oil in the planetary gear assembly.

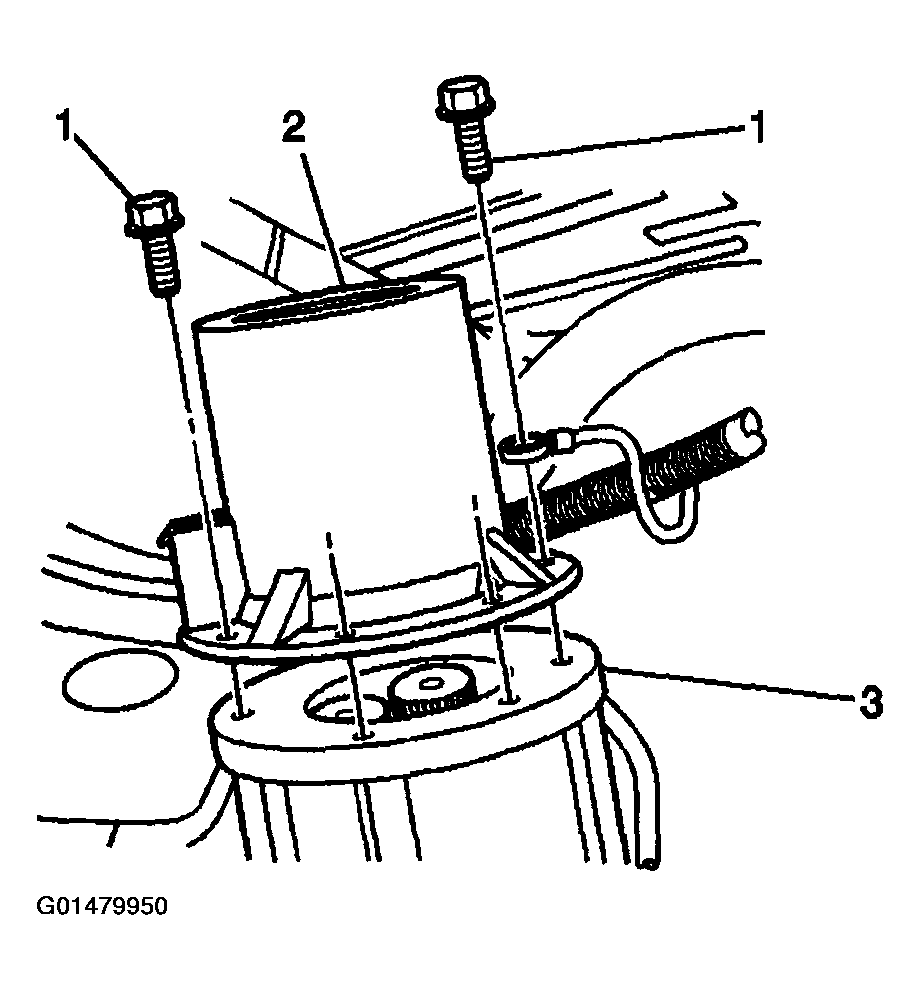

    Fig 2: Steering Gear Motor & Bolts
    G01479950Courtesy of GENERAL MOTORS CORP.
  6. Remove the wiring harness from the retaining clips.
  7. Disconnect the wiring harness from the control module (2).

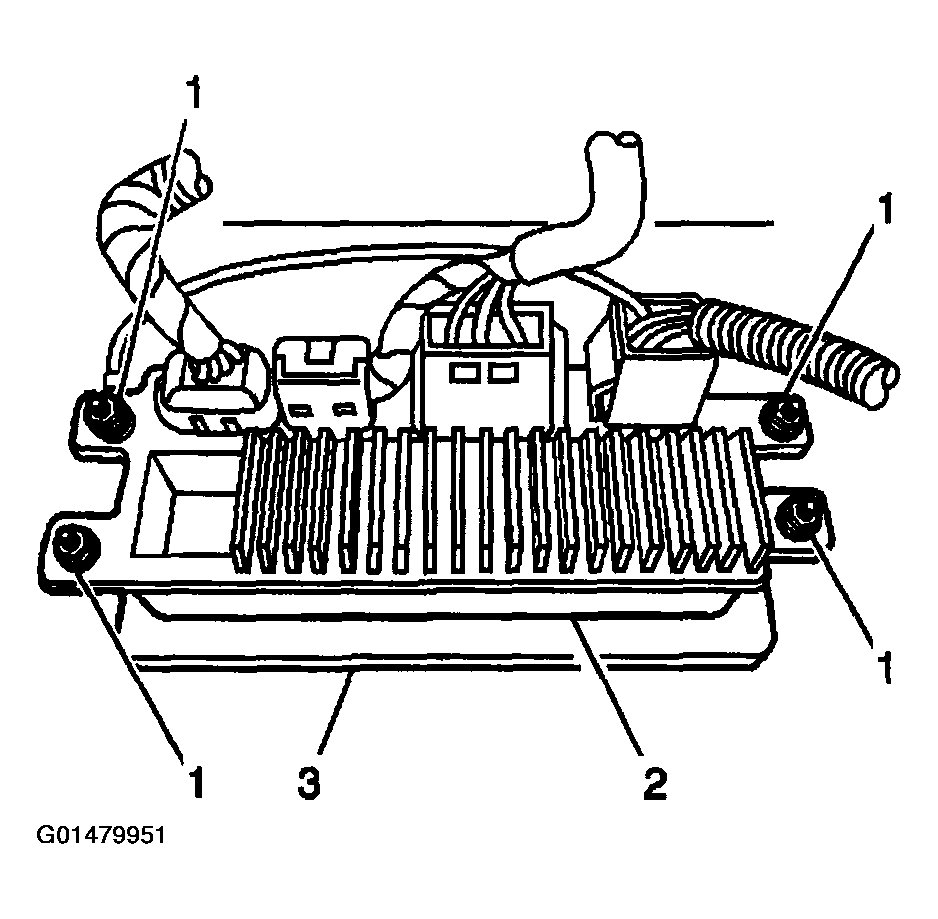

    Fig 3: Control Module
    G01479951Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the electrical connector (1) from the rear position sensor.
  9. Remove the steering gear motor and wiring harness from the vehicle.

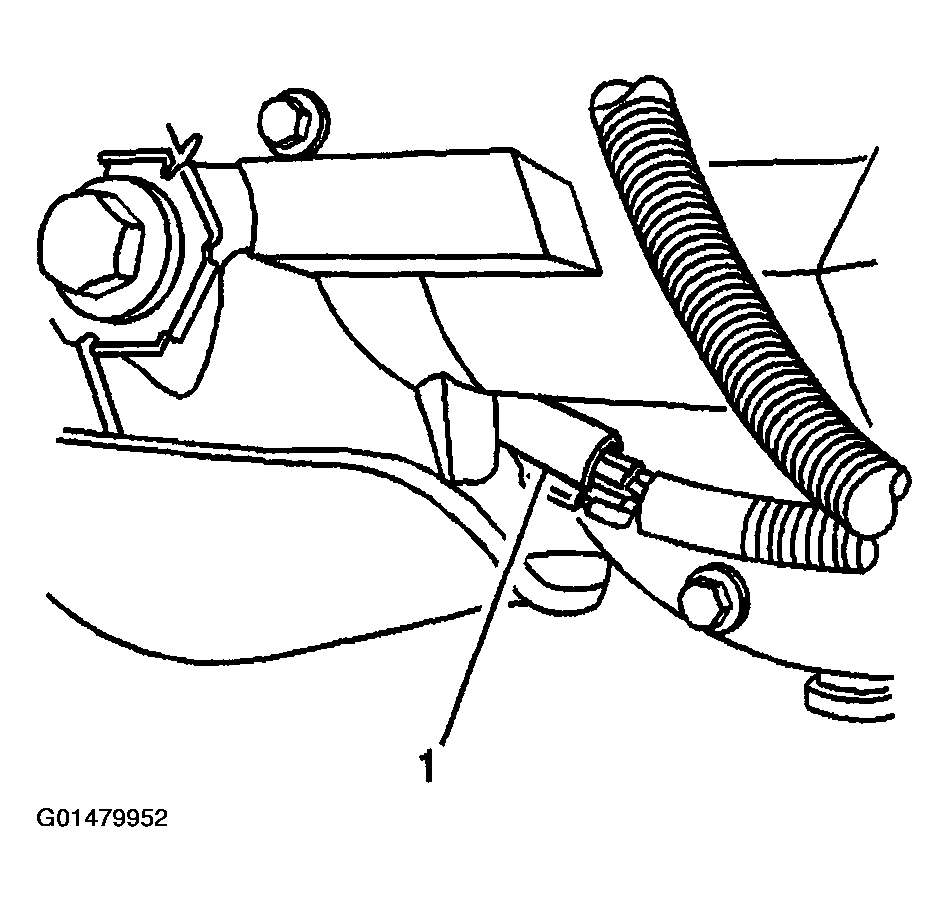

    Fig 4: Electrical Connector
    G01479952Courtesy of GENERAL MOTORS CORP.
