Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dash trim bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER .
  2. Grasp the rear wheel steering mode switch housing (2) and pull outward to remove the switch assembly.
  3. Disconnect the electrical connector (3) from the rear wheel steering mode switch.
  4. Remove the rear wheel steering mode switch assembly (1) from the vehicle.

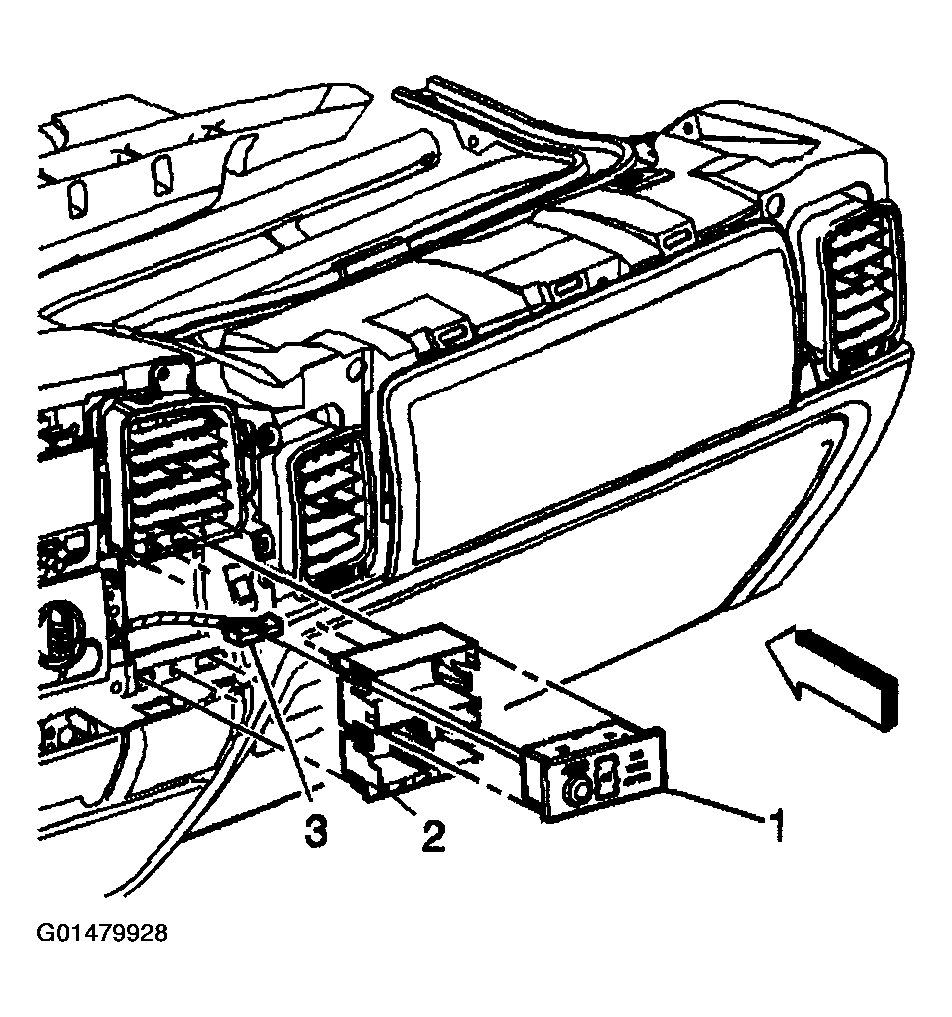

    Fig 1: Rear Wheel Steering Mode Switch Assembly, Switch Housing & Electrical Connector
    G01479928Courtesy of GENERAL MOTORS CORP.
