Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When lifting the vehicle do not allow the jack to touch the rear steering gear. If the jack touches the rear steering gear you may damage the gear or the rack and pinion boots. If the boots are damaged replace the rack and pinion boot.
  1. Raise the vehicle. Refer to JACKING AND LIFTING .
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the bolt (8) and nut (2) retaining the bracket to gain access to the pinch bolt.

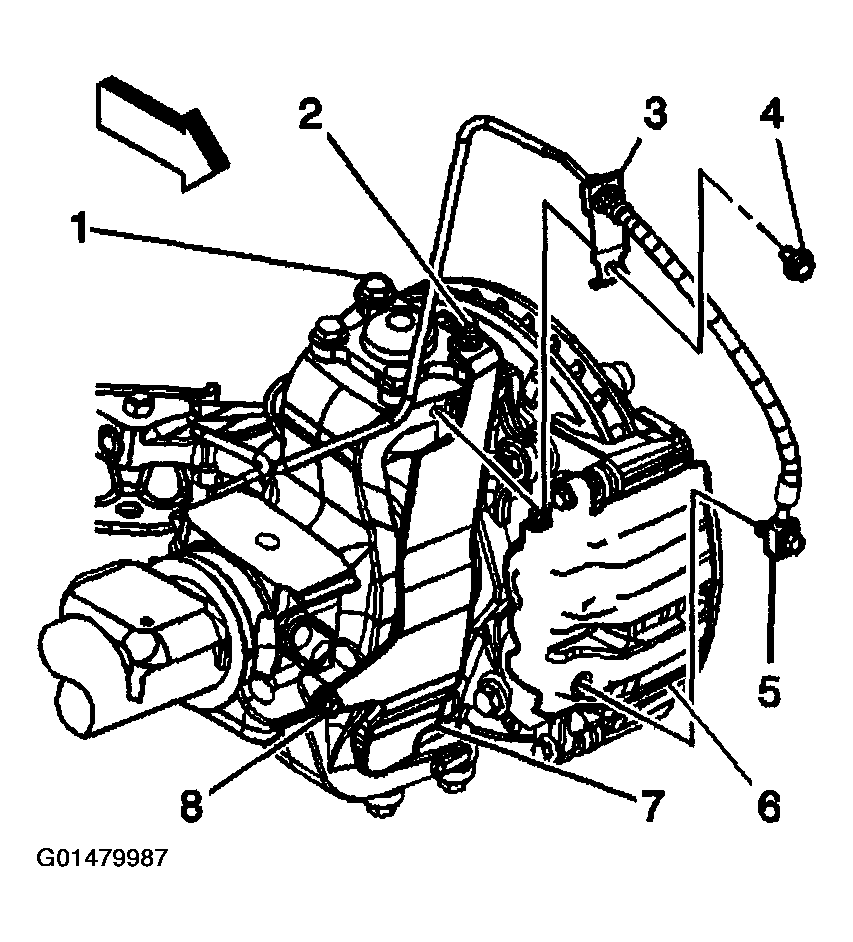

    Fig 1: Retaining Bracket Bolt & Nut
    G01479987Courtesy of GENERAL MOTORS CORP.
  4. Remove the snap ring (2) from the ball joint stud (1).
    Fig 2: Snap Ring & Ball Joint Stud
    G01479988Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts (2) retaining the lower ball joint (3) to the steering knuckle.
  6. Remove the pinch bolt (1) retaining the lower ball.

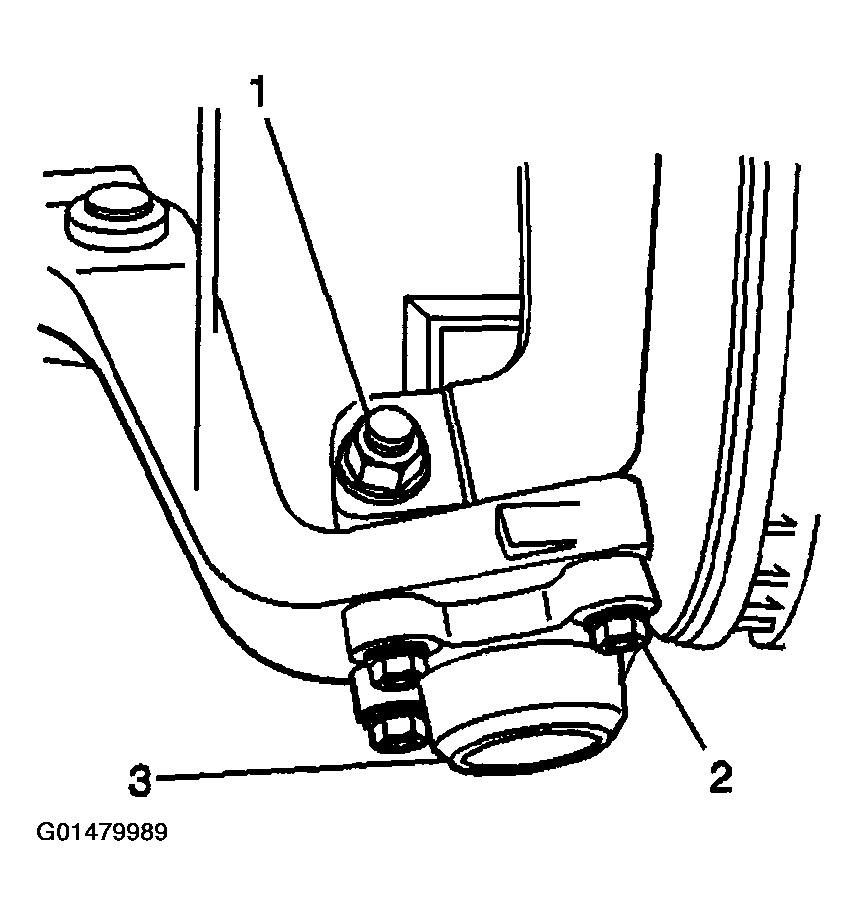

    Fig 3: Lower Ball Joint, Bolt & Lower Ball Pinch Bolt
    G01479989Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower ball joint (2) from the vehicle.

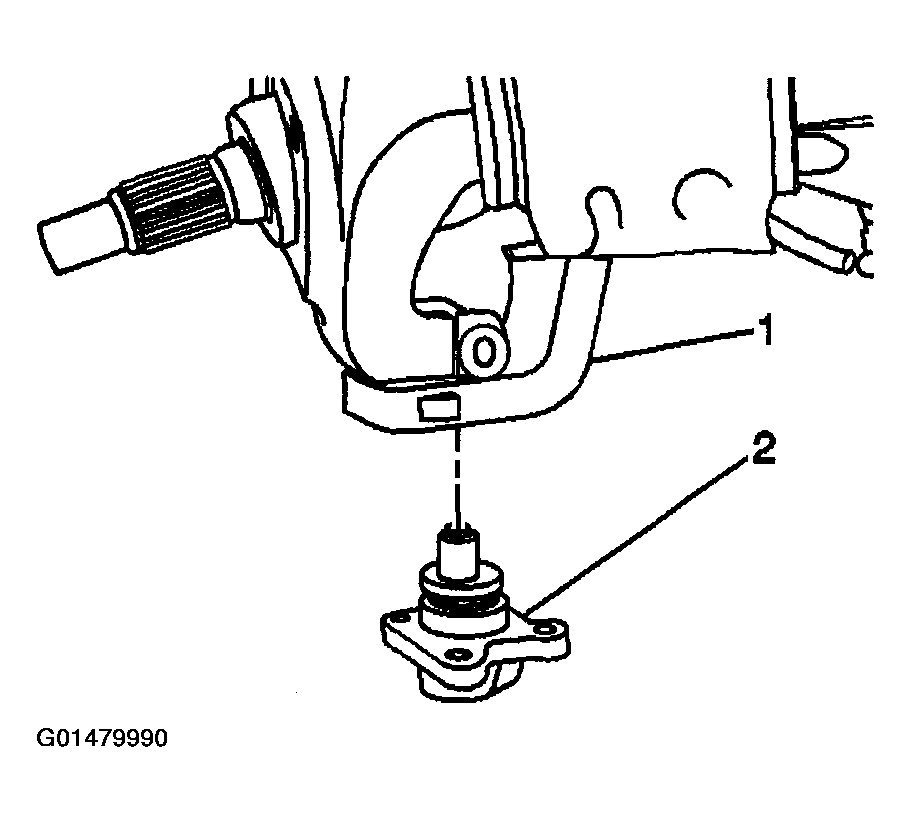

    Fig 4: Lower Ball Joint
    G01479990Courtesy of GENERAL MOTORS CORP.
