Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refer to the step number on the diagnostic table.

  1. 2. This step tests if the IPC is able to illuminate the Service 4-Wheel Steer indicator during the bulb check.

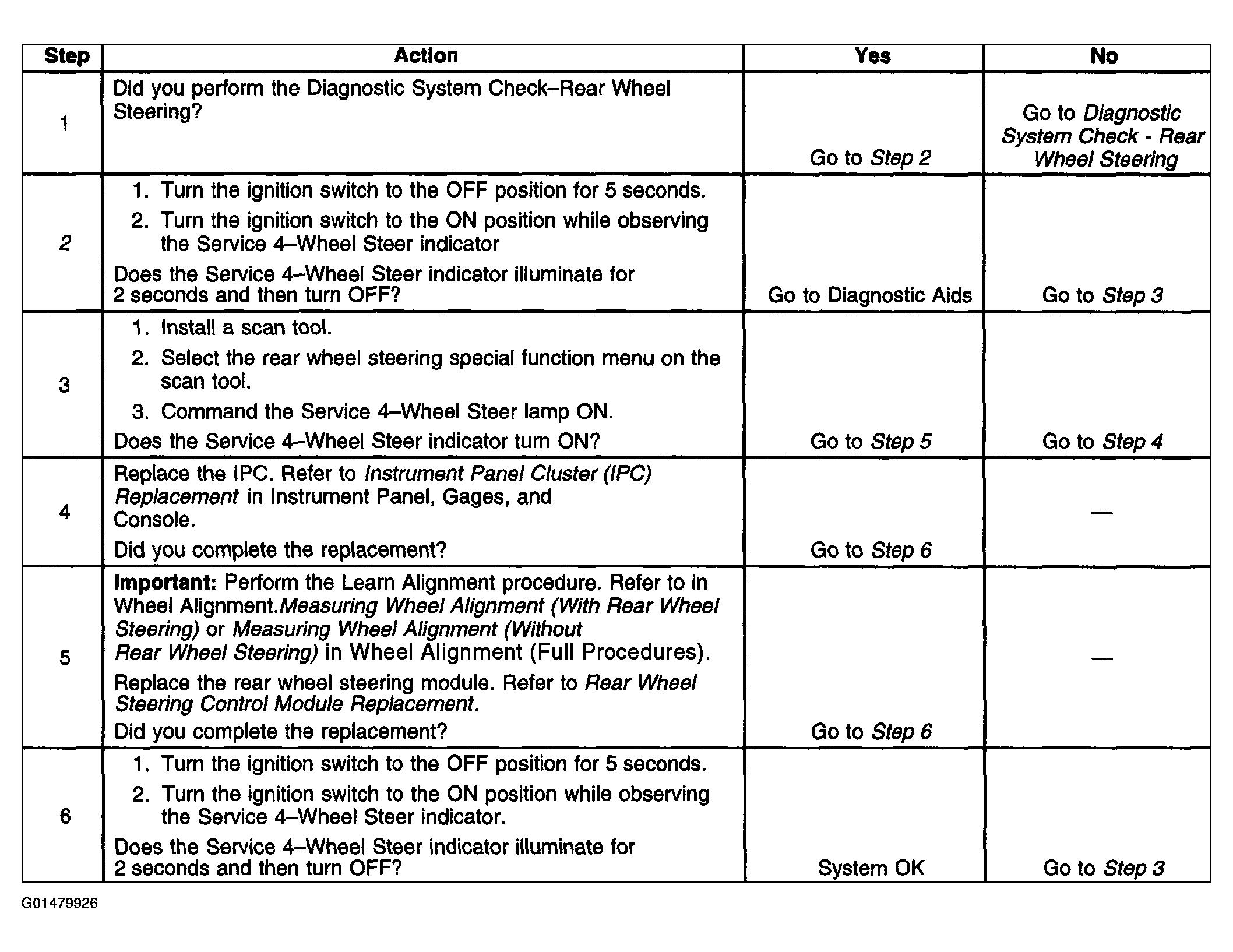

    Fig 1: Service 4W Steer Indicator Always On
    G01479926Courtesy of GENERAL MOTORS CORP.
