Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step begins the procedure that will allow the technician to determine the components responsible for setting DTC C0543.
  2. 3. This step will help determine if there are objects caught in the rear wheels.
  3. 6. This step replaces the steering gear motor assembly.

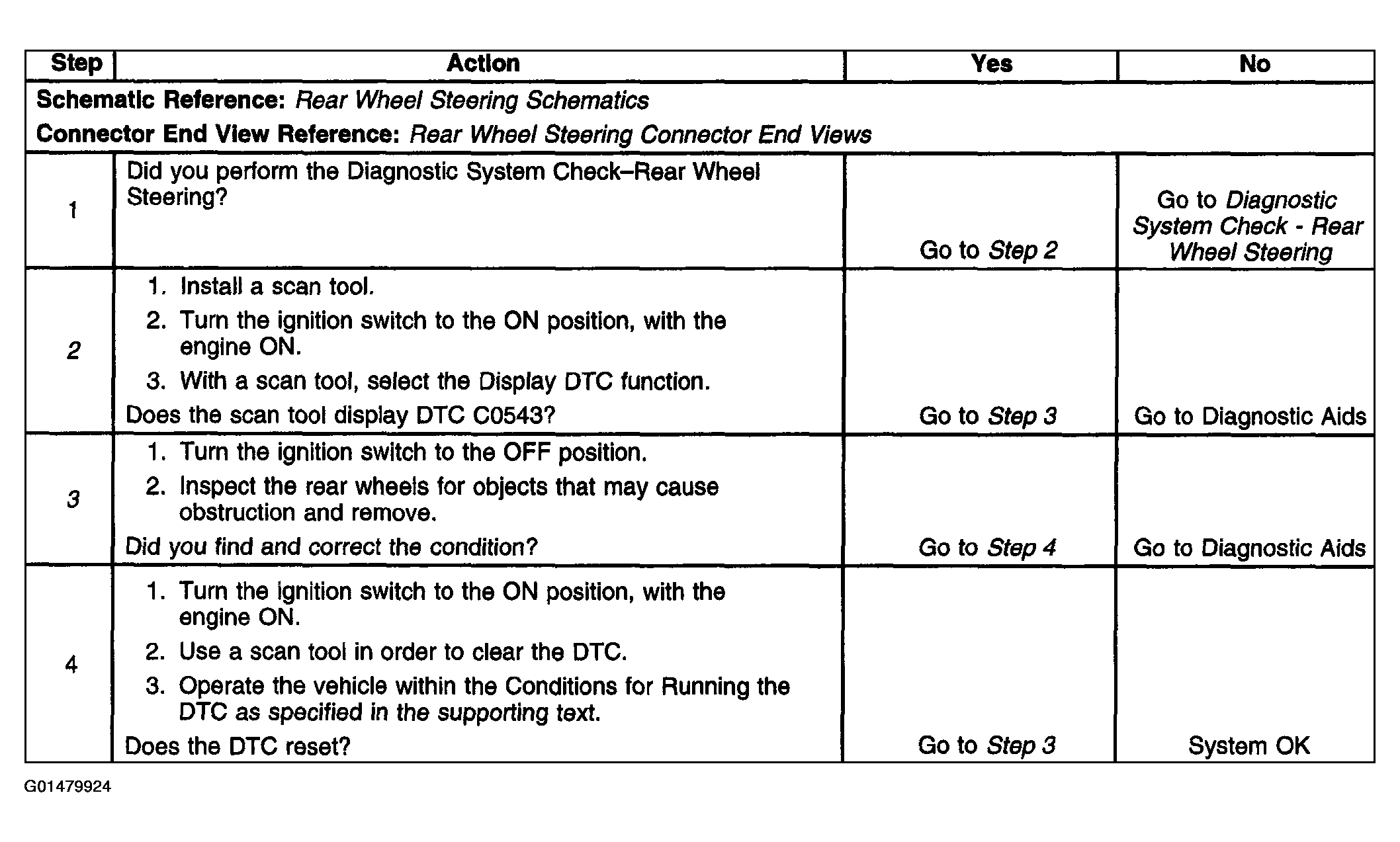

    Fig 1: DTC C0543
    G01479924Courtesy of GENERAL MOTORS CORP.
