Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step will help the technician determine if there is current through the rear wheel steering motor.
  2. 3. This step will help the technician determine if there is an intermittent connection at the harness connector of the rear wheel steering motor.

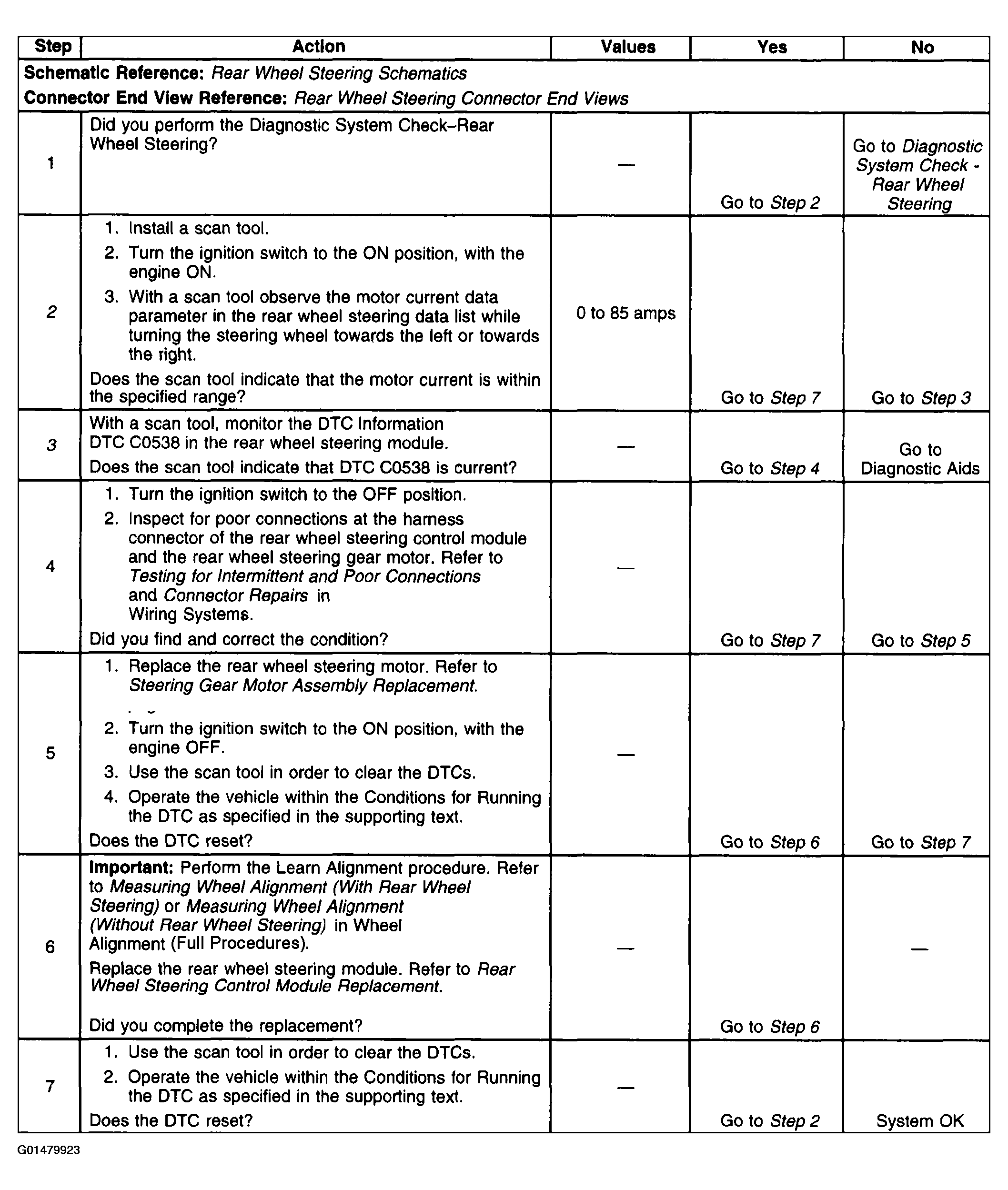

Fig 1: DTC C0538
G01479923Courtesy of GENERAL MOTORS CORP.
