Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests for the proper operation of the rear steering position sensor.
  2. 3. This step tests for the proper operation of the rear steering motor position sensor.
  3. 4. This step performs the diagnostic procedure for the rear steering position sensor.
  4. 5. This step performs the diagnostic procedure for the rear steering motor position sensor.

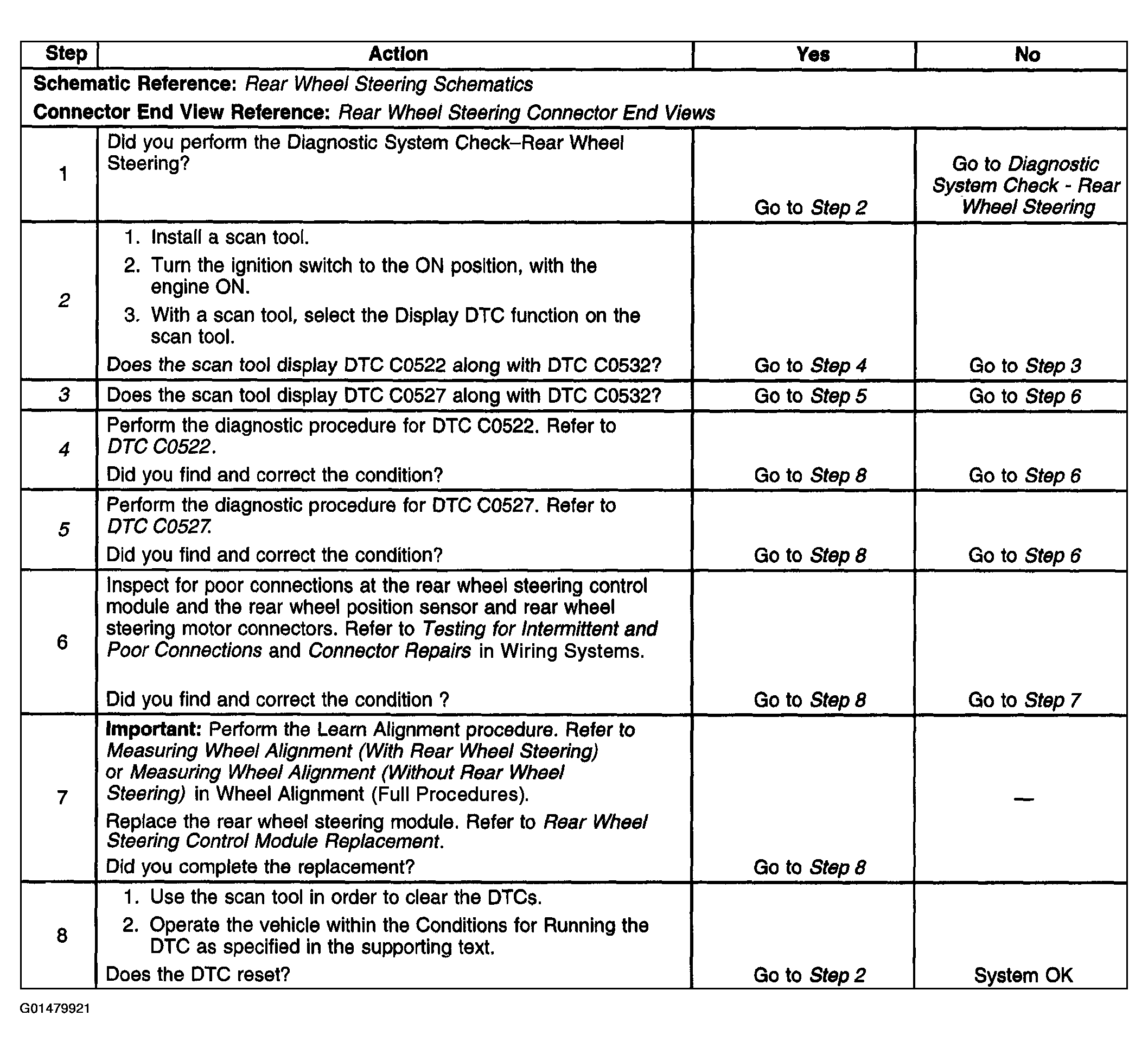

Fig 1: DTC C0532
G01479921Courtesy of GENERAL MOTORS CORP.
