Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. This step verifies there was an improper rear wheel steering alignment performed.

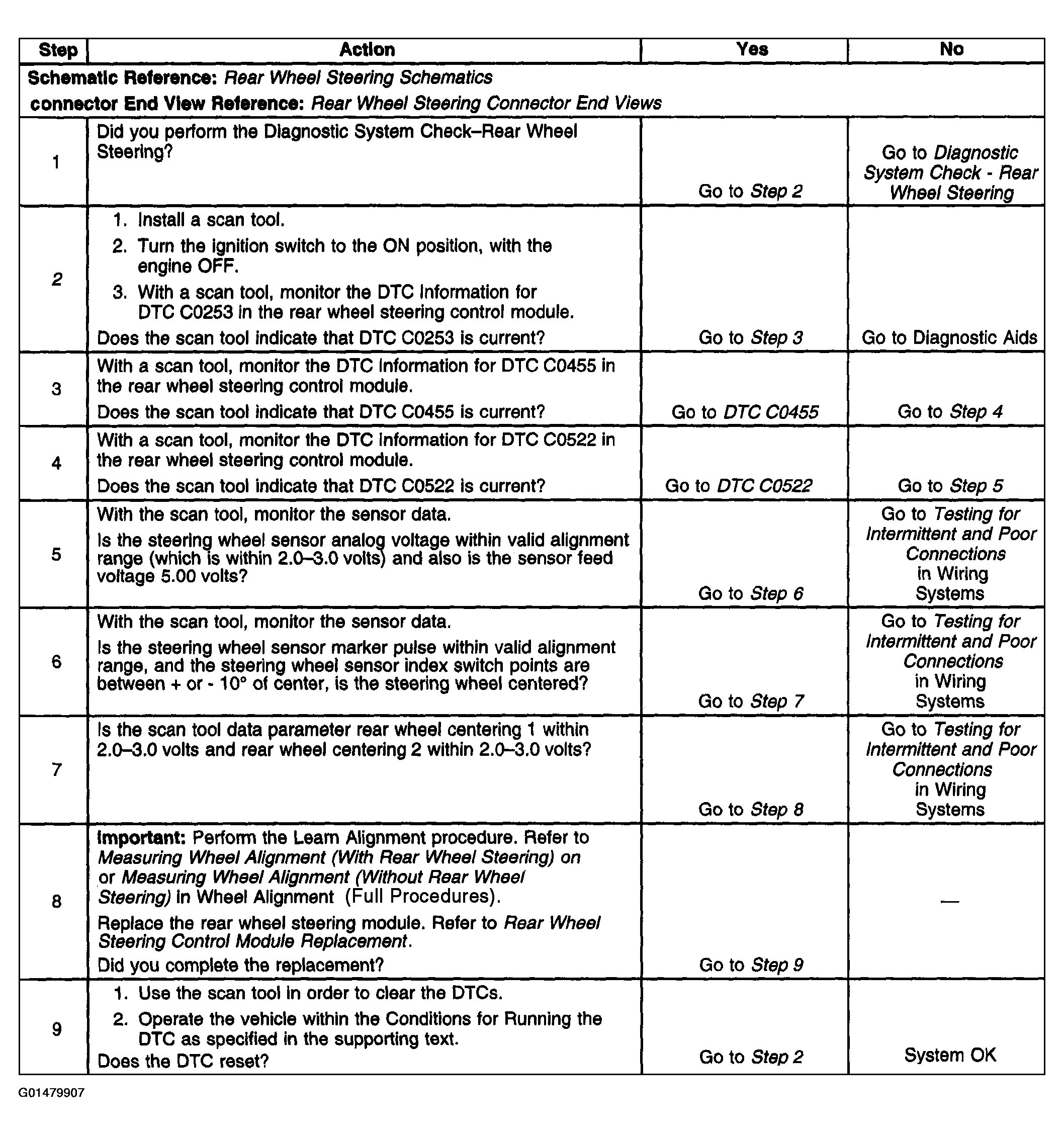

    Fig 1: DTC C0253
    G01479907Courtesy of GENERAL MOTORS CORP.
