Rear Wheel Steering Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

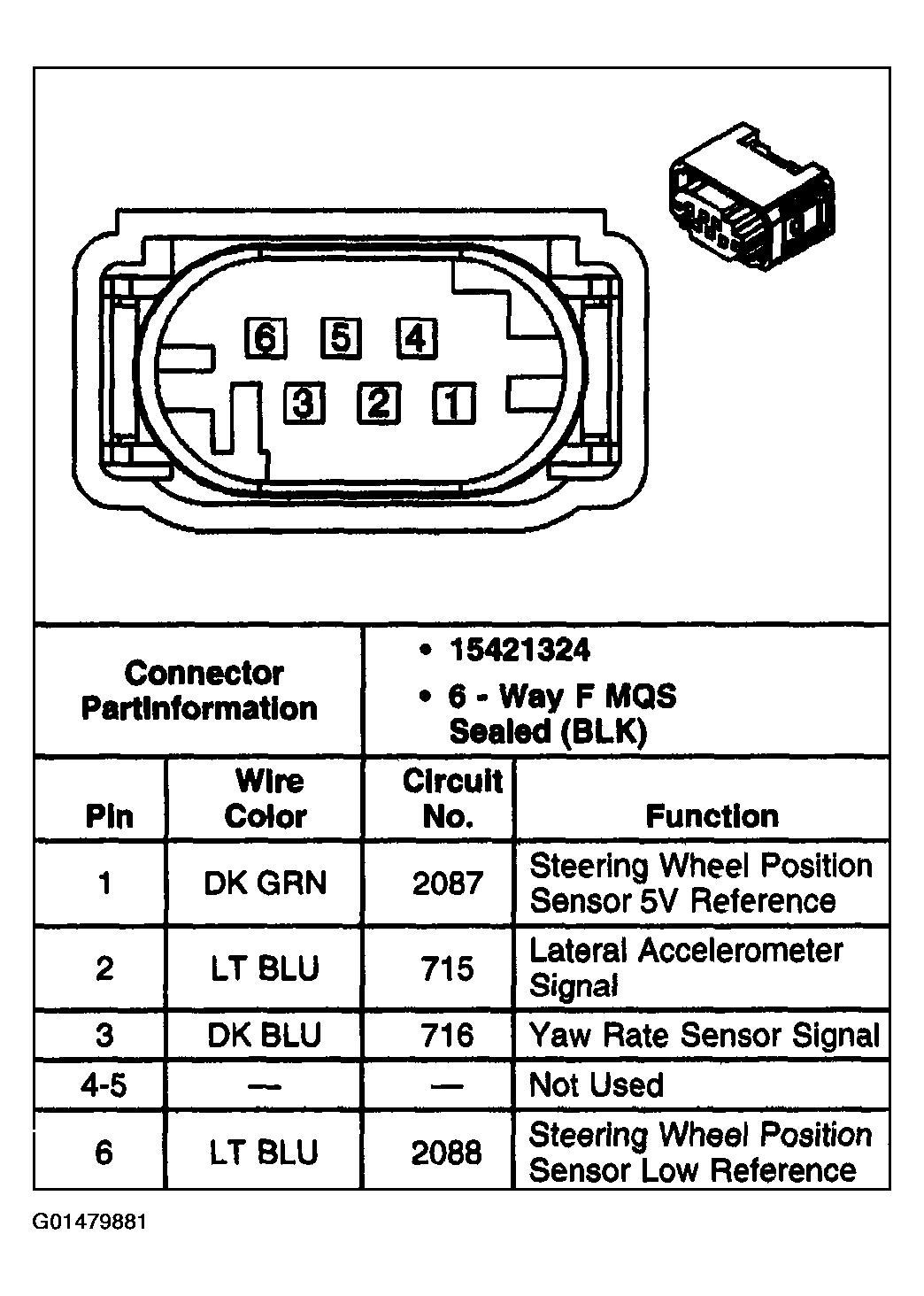

Fig 1: Combination Yaw Rate Sensor/Lateral Accelerometer Sensor

G01479881

Courtesy of GENERAL MOTORS CORP.

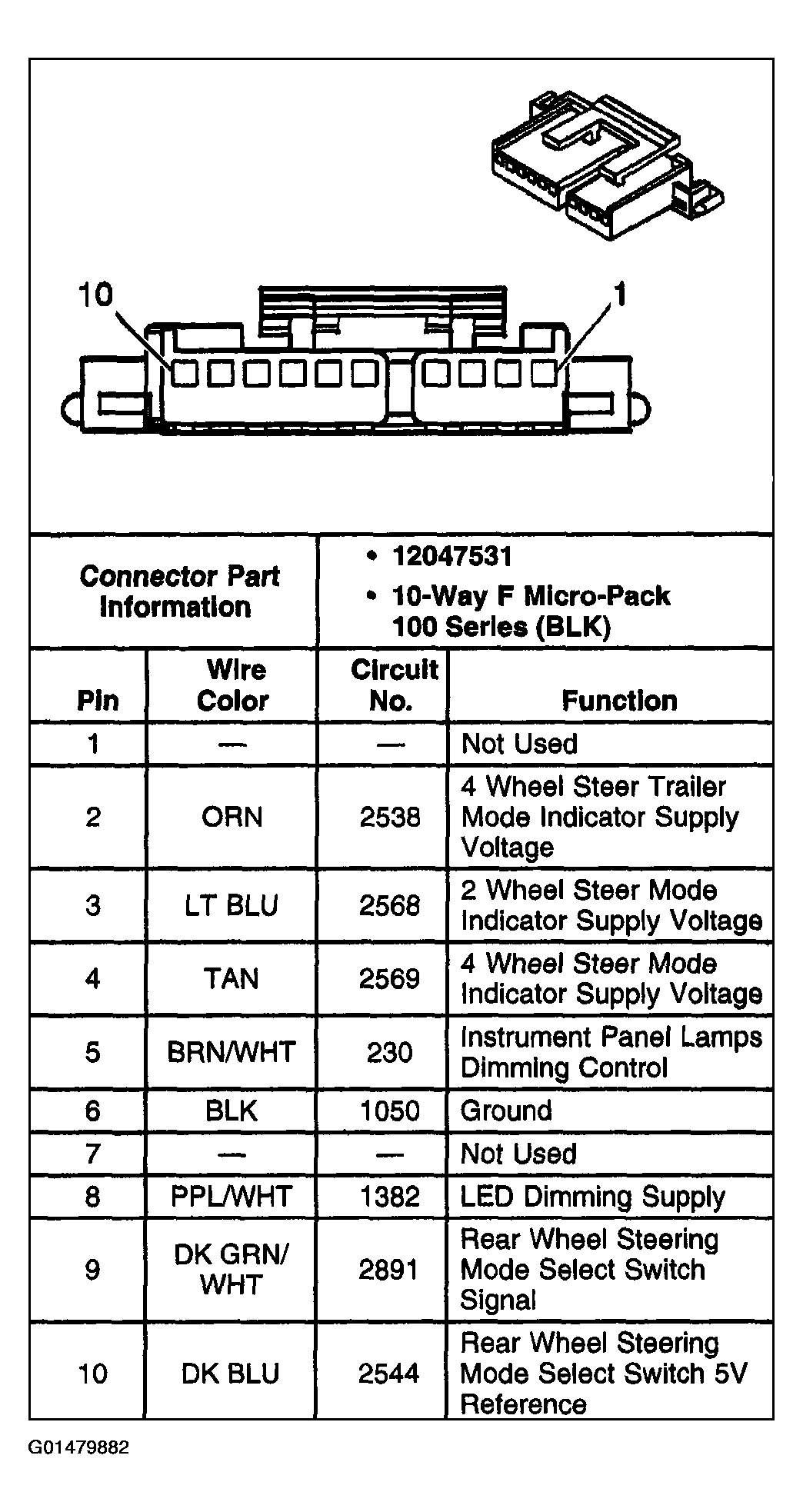

Fig 2: Rear Wheel Steering Switch

G01479882

Courtesy of GENERAL MOTORS CORP.

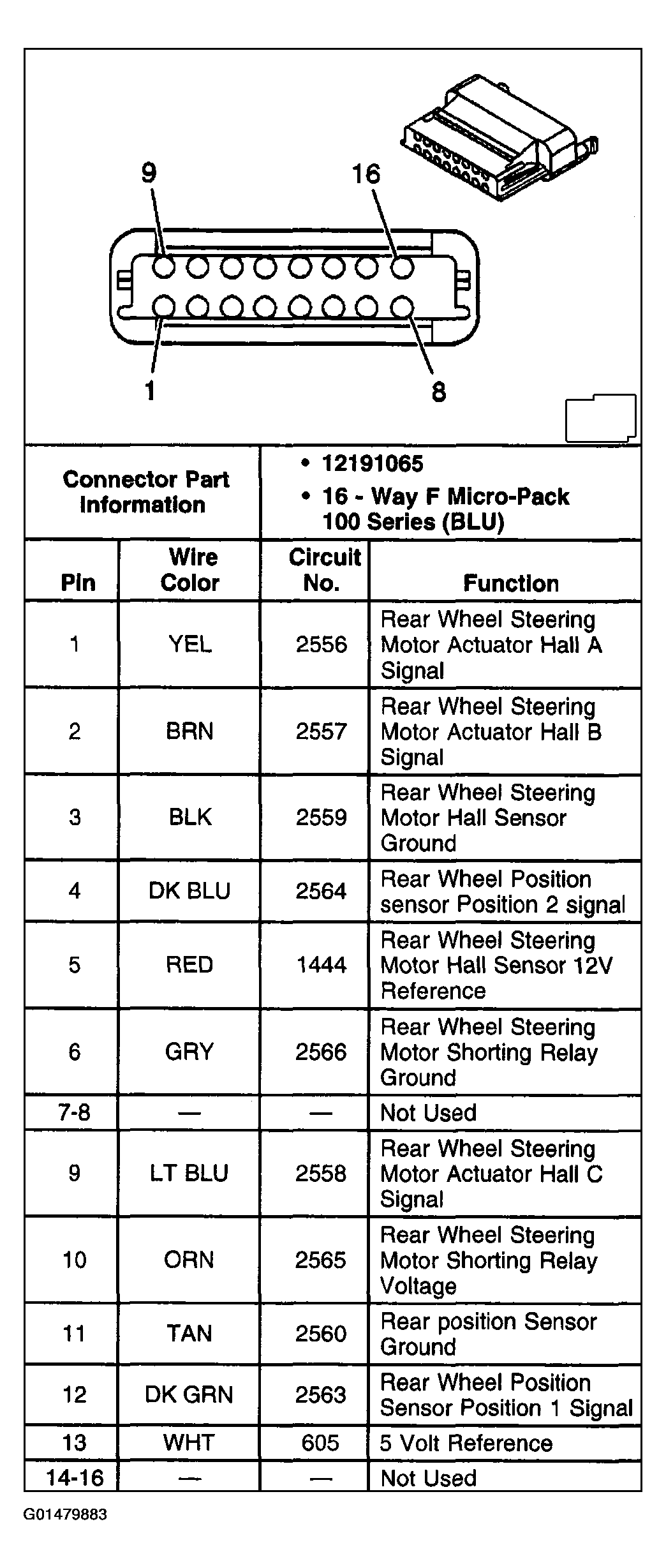

Fig 3: Rear Wheel Steering Control Module - C1

G01479883

Courtesy of GENERAL MOTORS CORP.

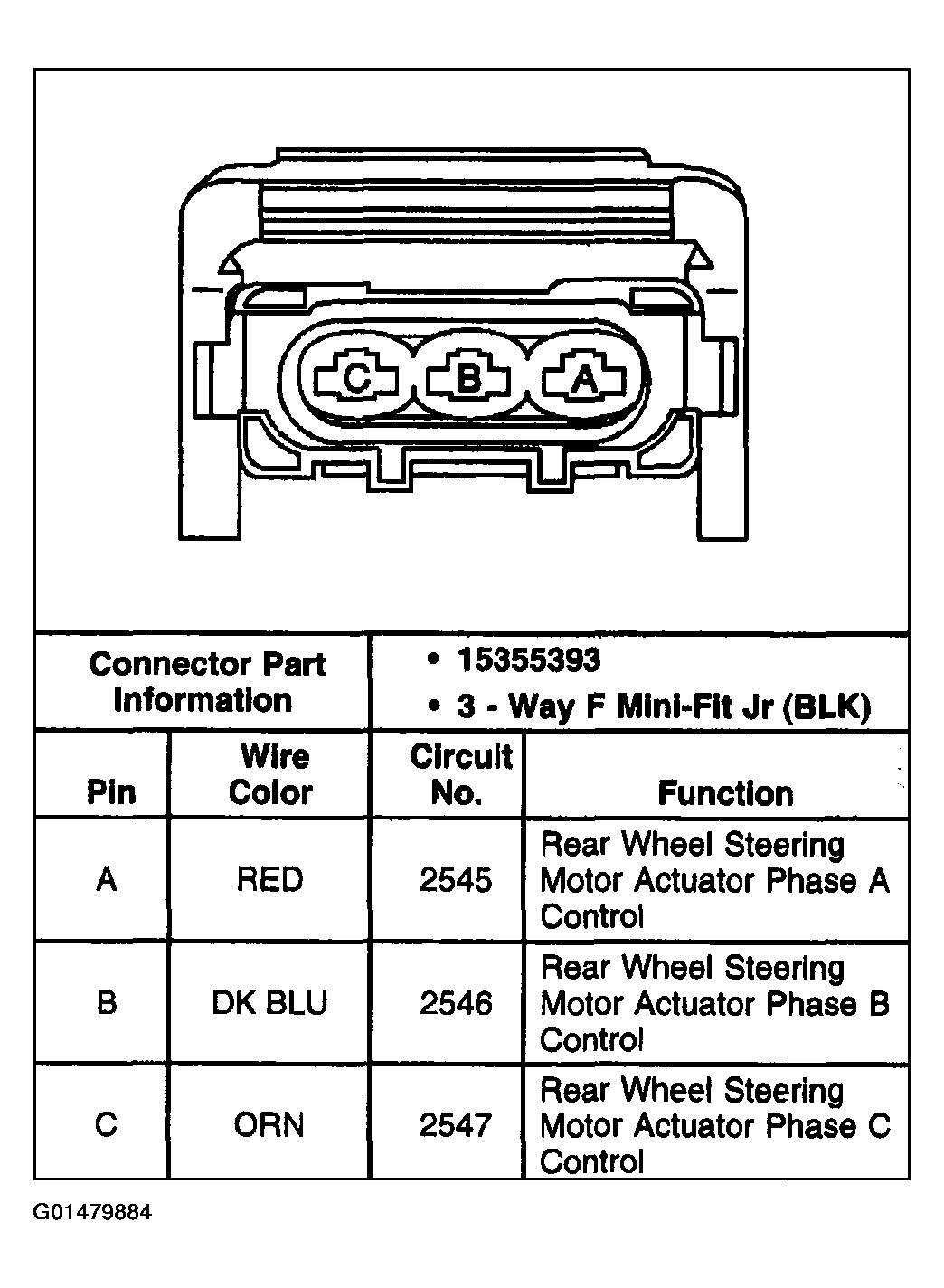

Fig 4: Rear Wheel Steering Control Module - C2

G01479884

Courtesy of GENERAL MOTORS CORP.

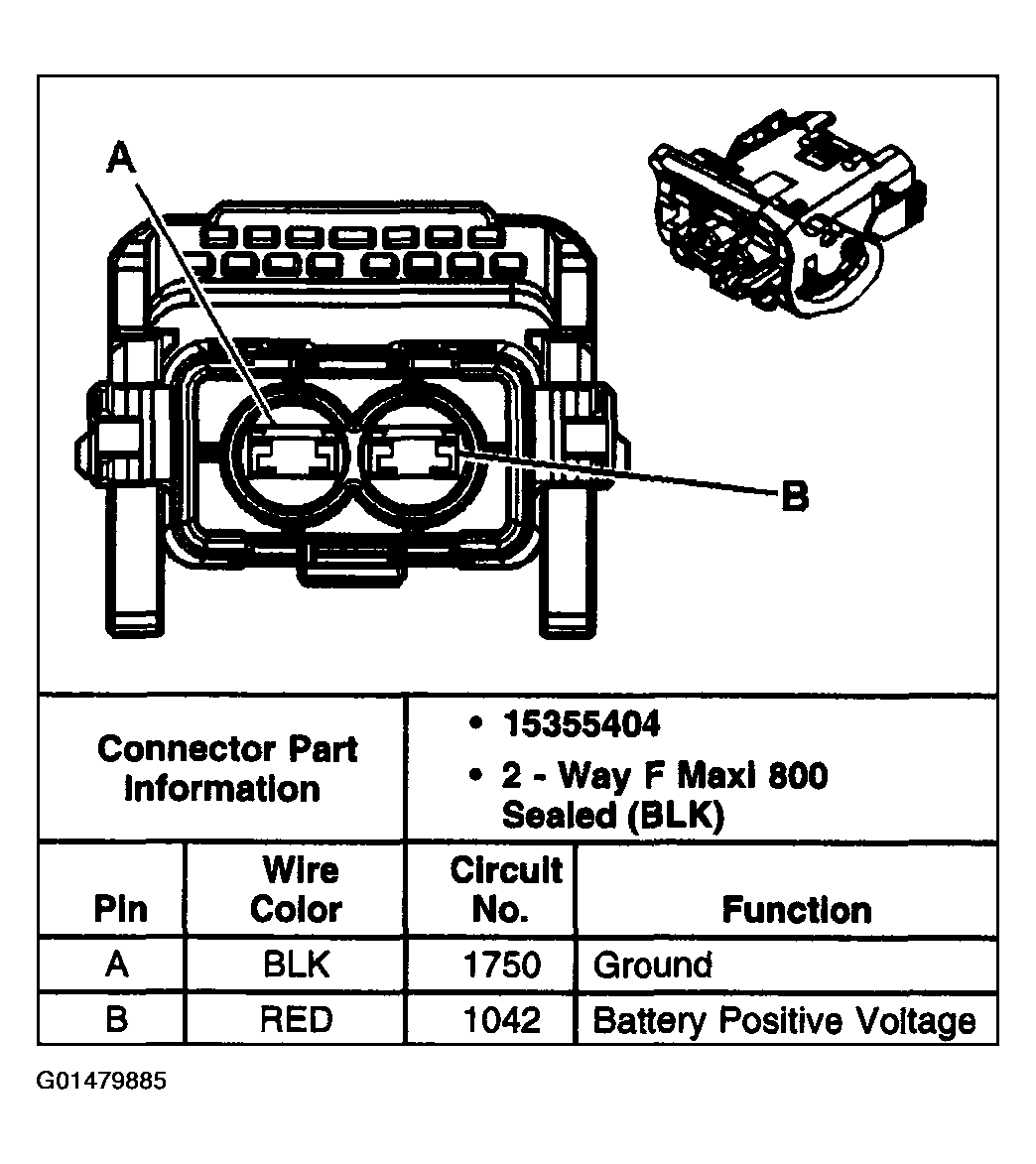

Fig 5: Rear Wheel Steering Control Module - C3

G01479885

Courtesy of GENERAL MOTORS CORP.

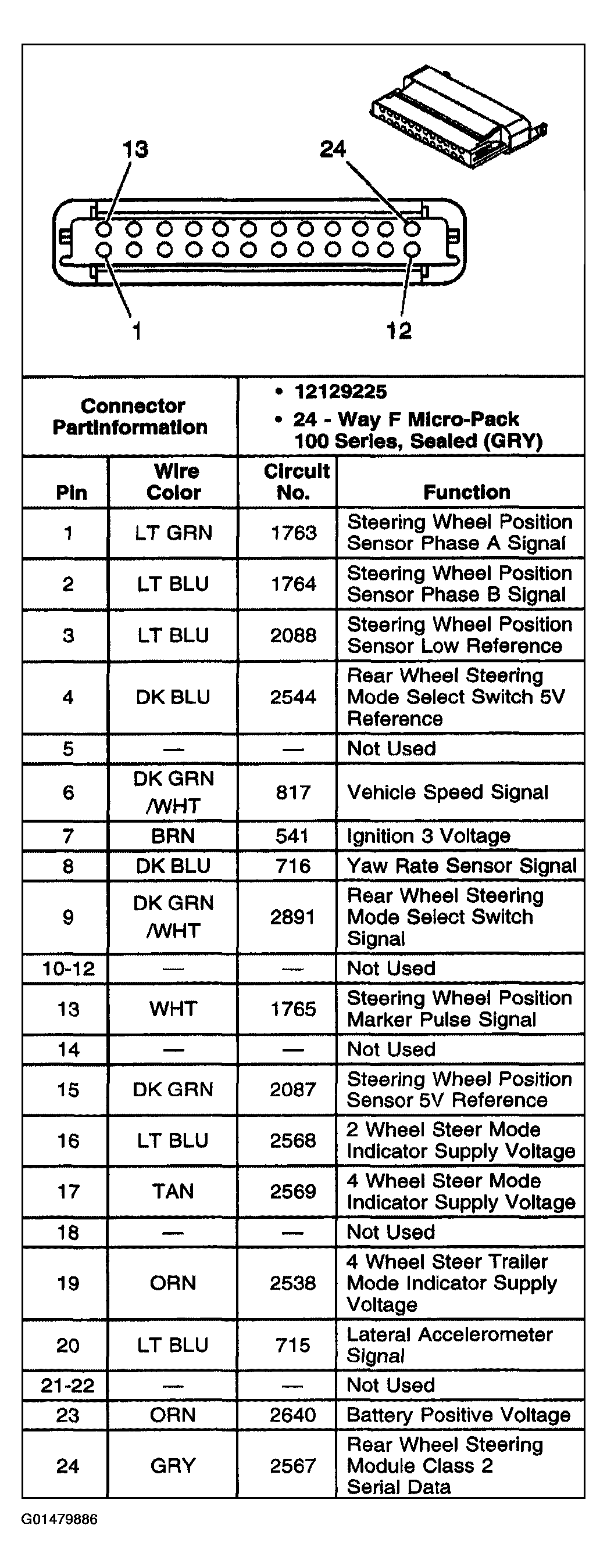

Fig 6: Rear Wheel Steering Module - C4

G01479886

Courtesy of GENERAL MOTORS CORP.

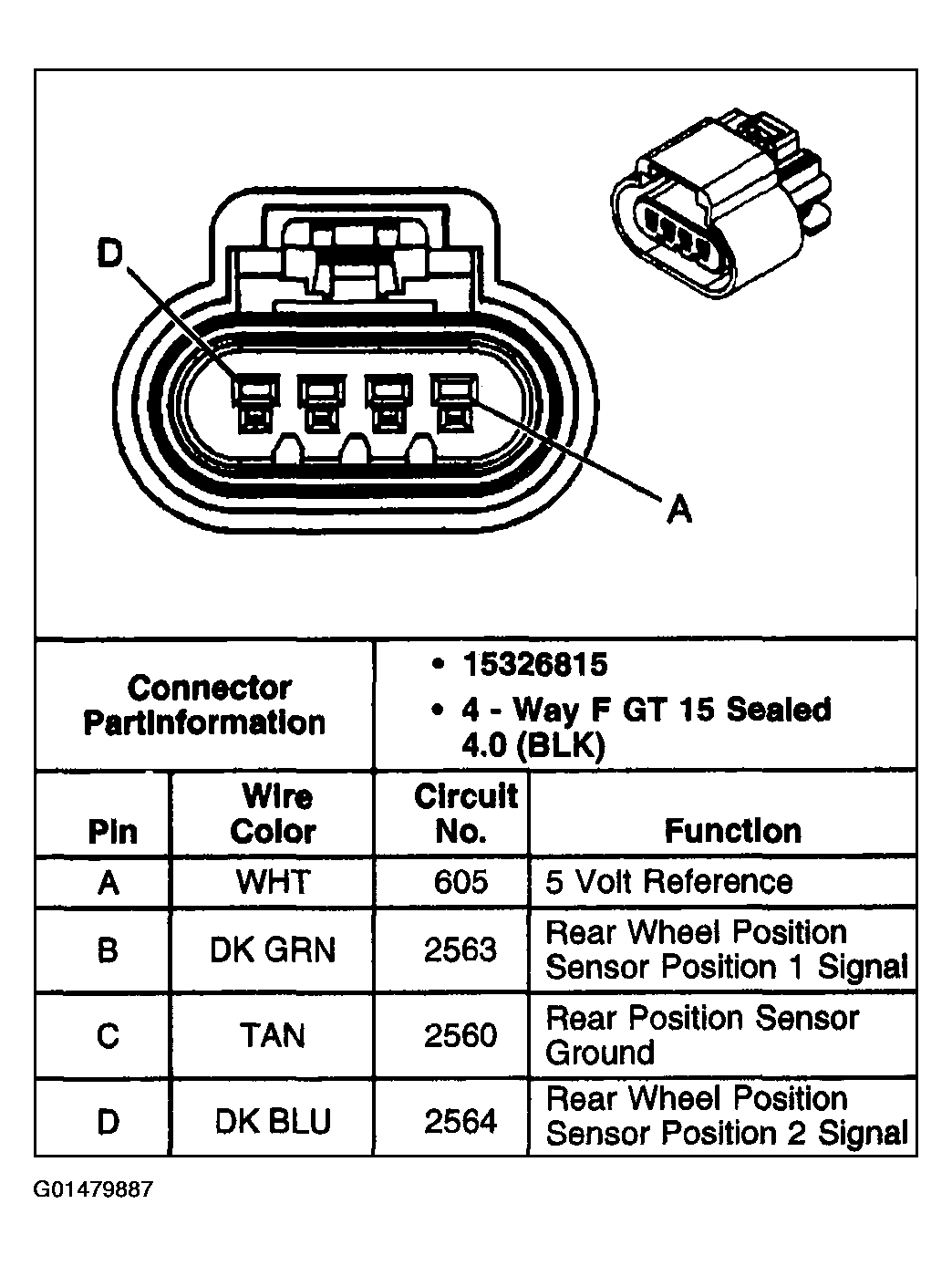

Fig 7: Rear Wheel Position Sensor

G01479887

Courtesy of GENERAL MOTORS CORP.

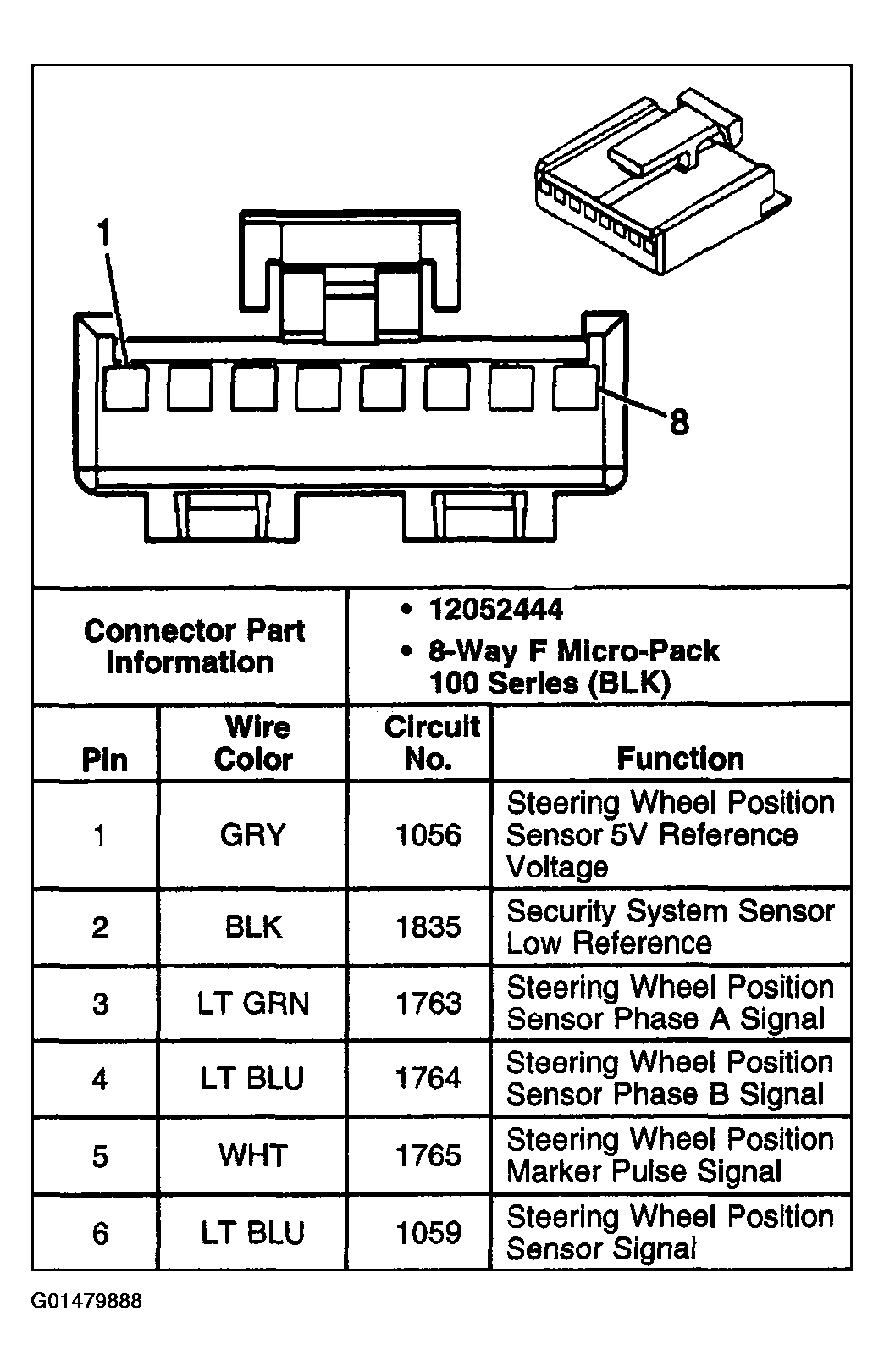

Fig 8: Steering Wheel Speed/Position Sensor (1 Of 2)

G01479888

Courtesy of GENERAL MOTORS CORP.

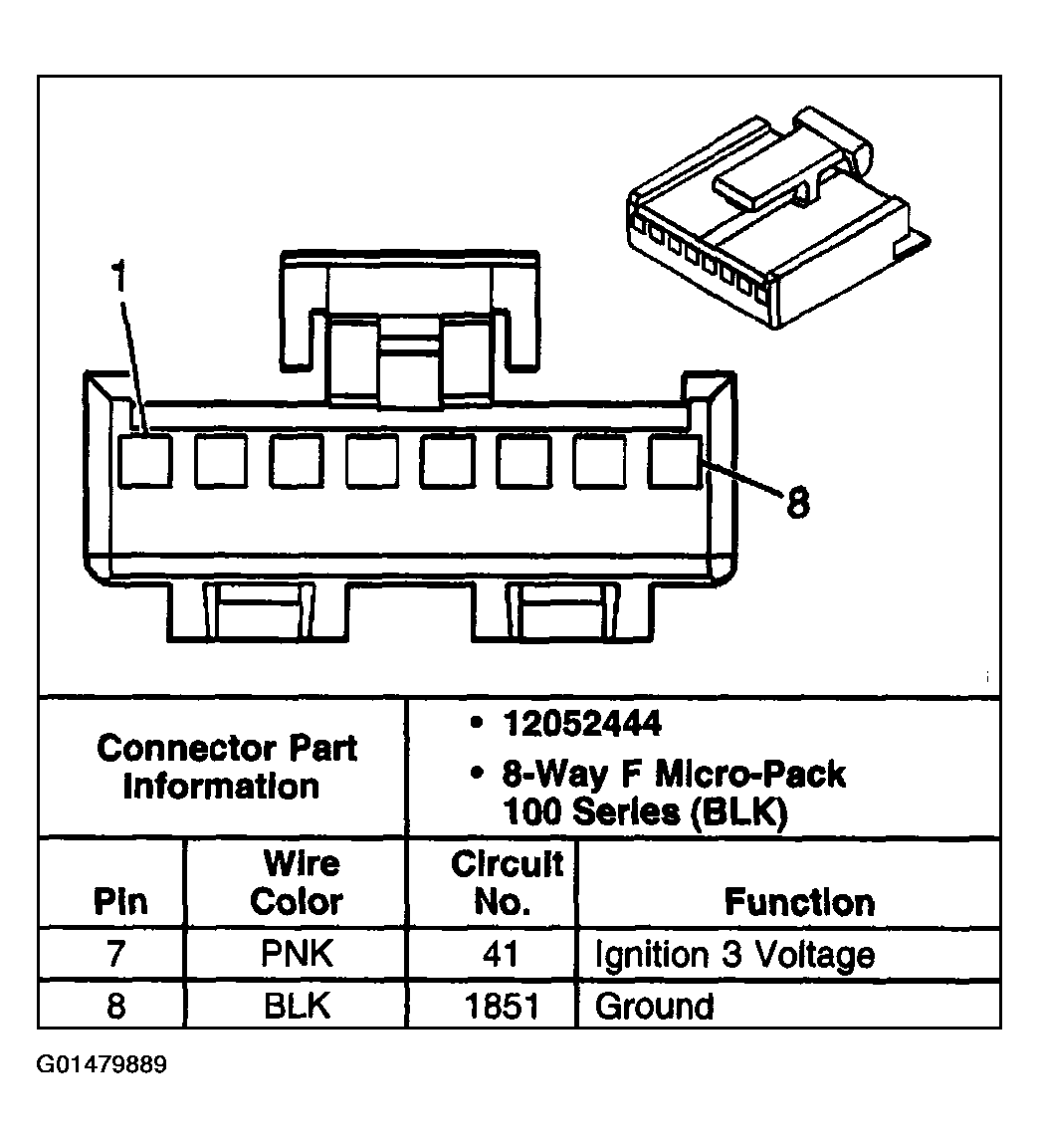

Fig 9: Steering Wheel Speed/Position Sensor (2 Of 2)

G01479889

Courtesy of GENERAL MOTORS CORP.
