Rear Wheel Steering Component Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

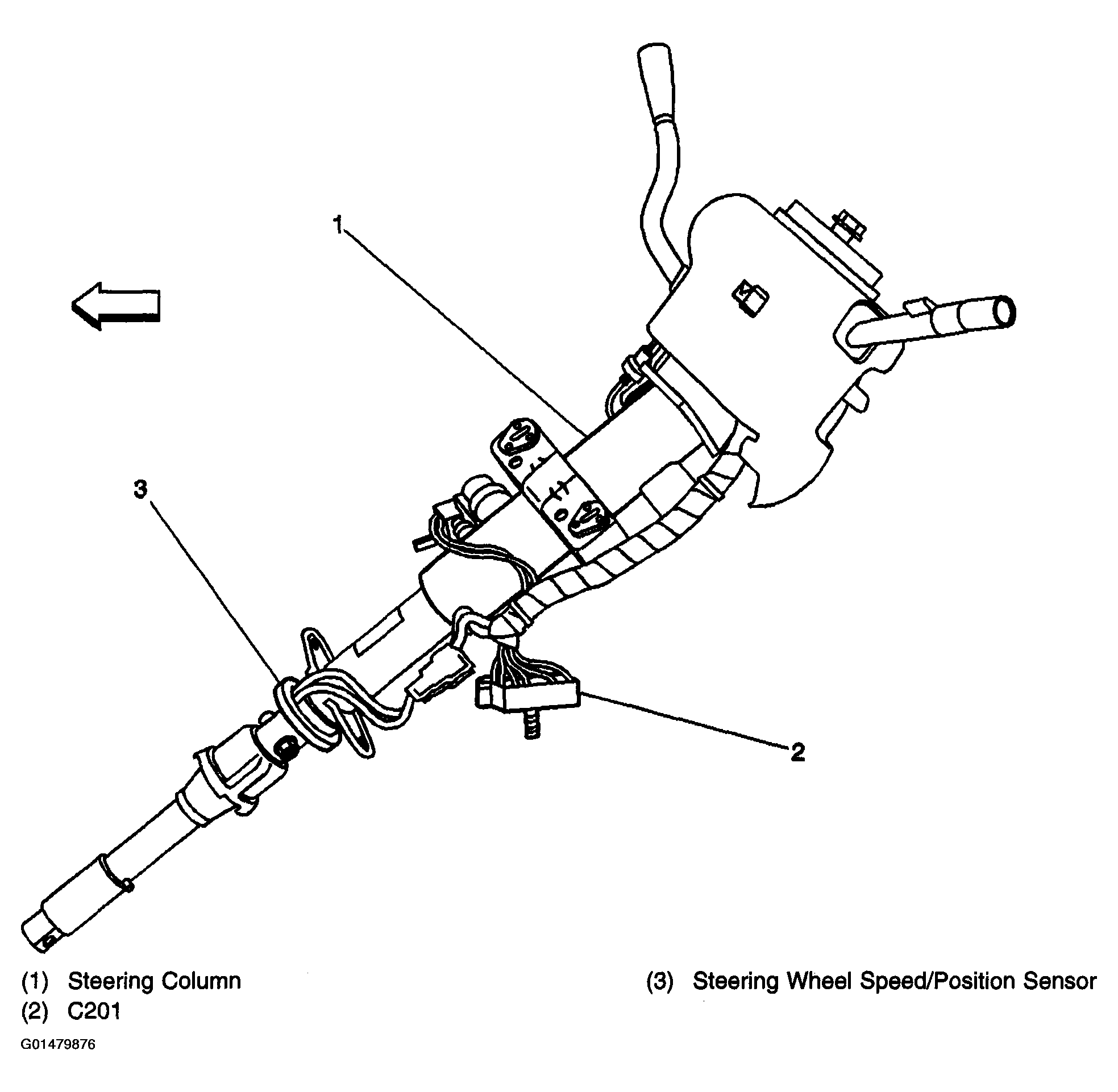

Fig 1: Steering Wheel Speed/Position Sensor

Courtesy of GENERAL MOTORS CORP.

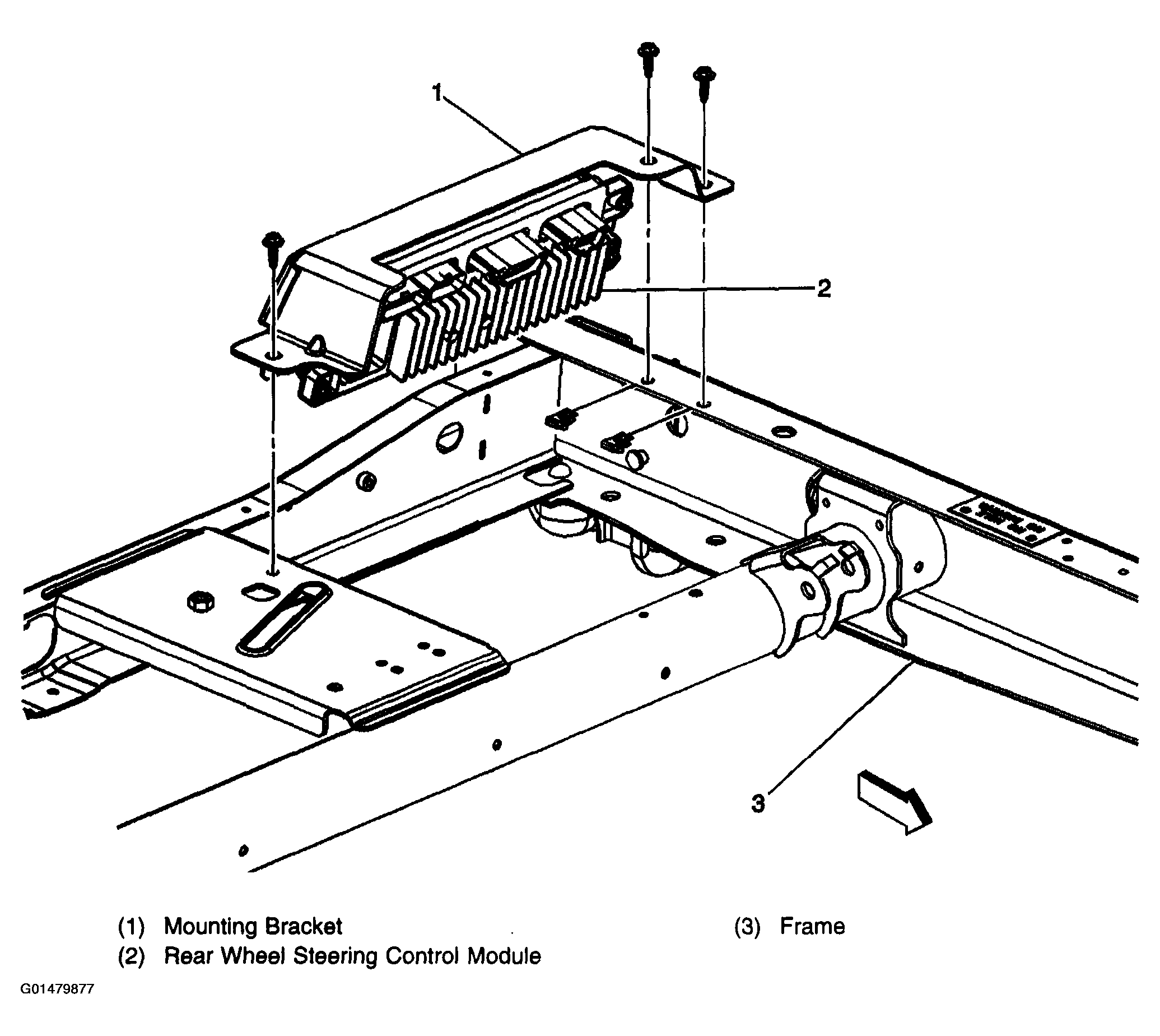

Fig 2: Rear Wheel Steering Control Module

Courtesy of GENERAL MOTORS CORP.

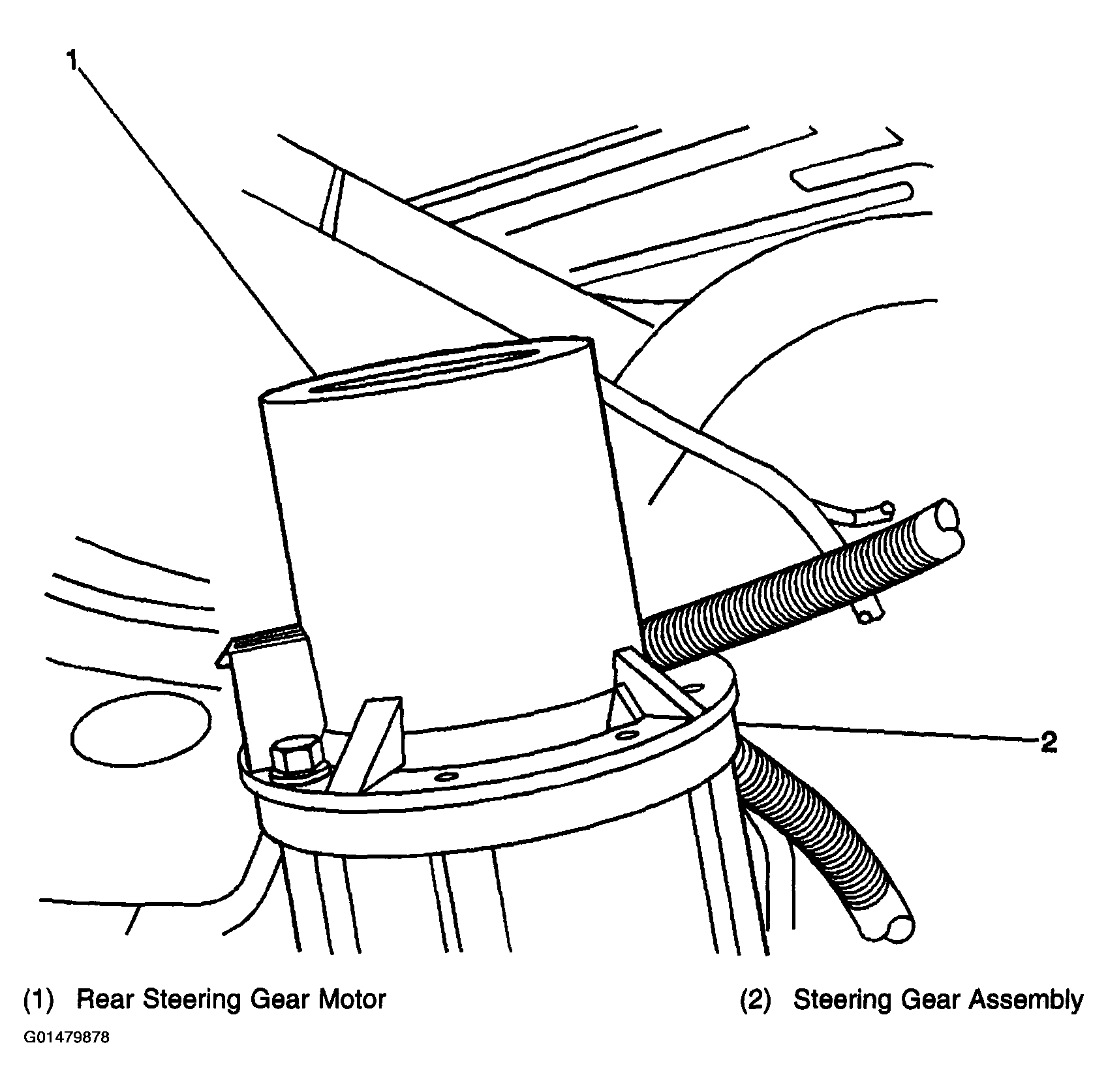

Fig 3: Rear Steering Gear Motor

Courtesy of GENERAL MOTORS CORP.

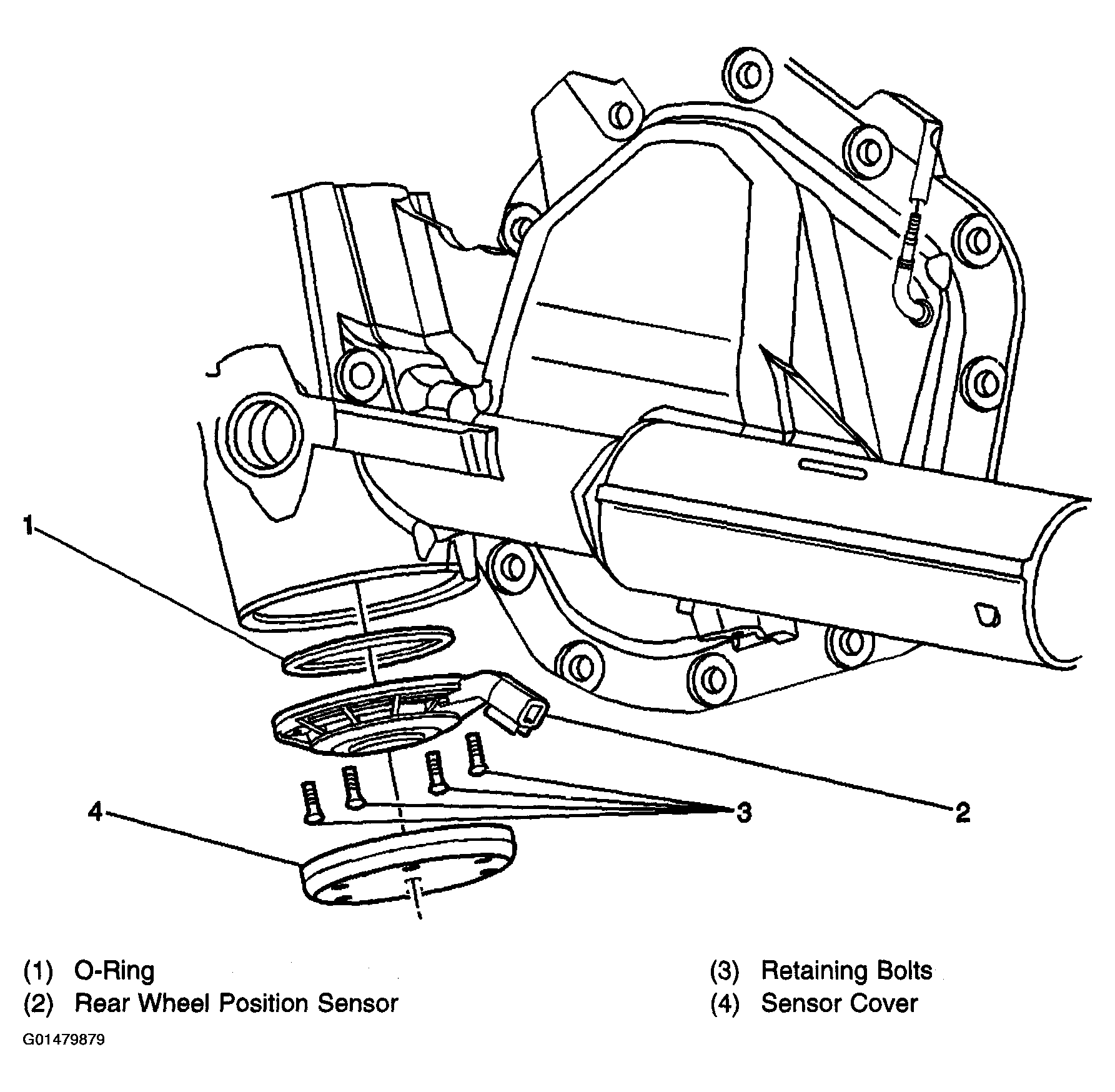

Fig 4: Rear Wheel Position Sensor

Courtesy of GENERAL MOTORS CORP.

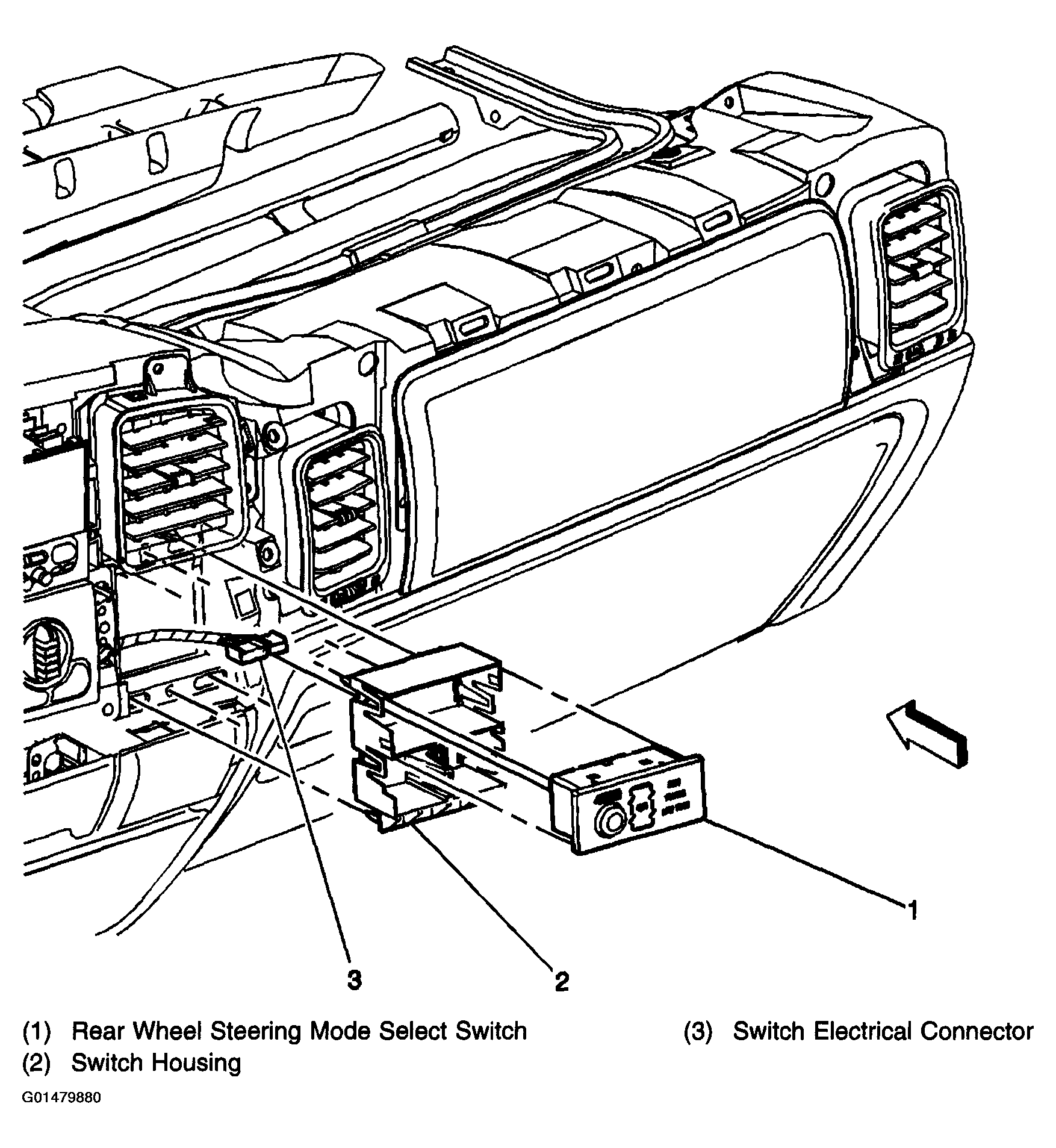

Fig 5: Rear Wheel Steering Mode Select Switch

Courtesy of GENERAL MOTORS CORP.
