Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine electrical center bracket assembly to the front fender.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 4 retaining bolts (1).

    Tighten

    Tighten the 4 retaining bolts (1) to 9 N.m (80 lb in).

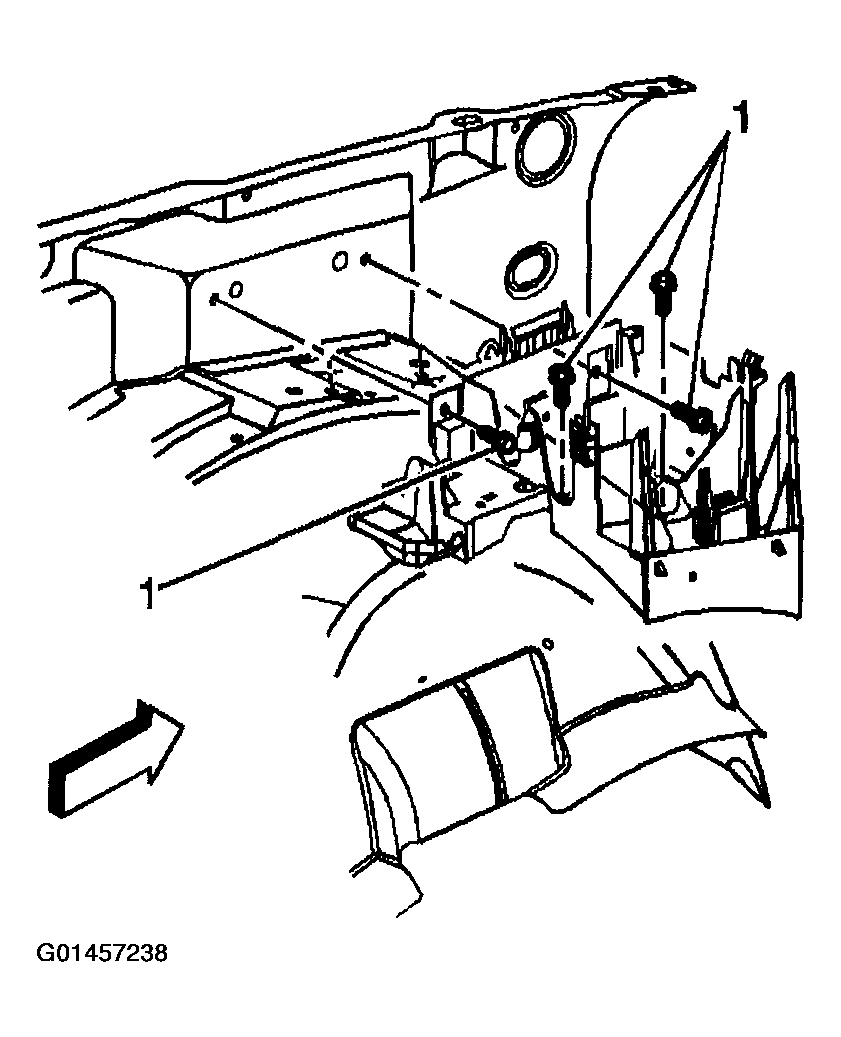

    Fig 1: Installing Engine Electrical Center Bracket Assembly To Fender
    G01457238Courtesy of GENERAL MOTORS CORP.
  3. Align the electrical center block (1) stubs in the slots so that the tabs (2) retains it in place.

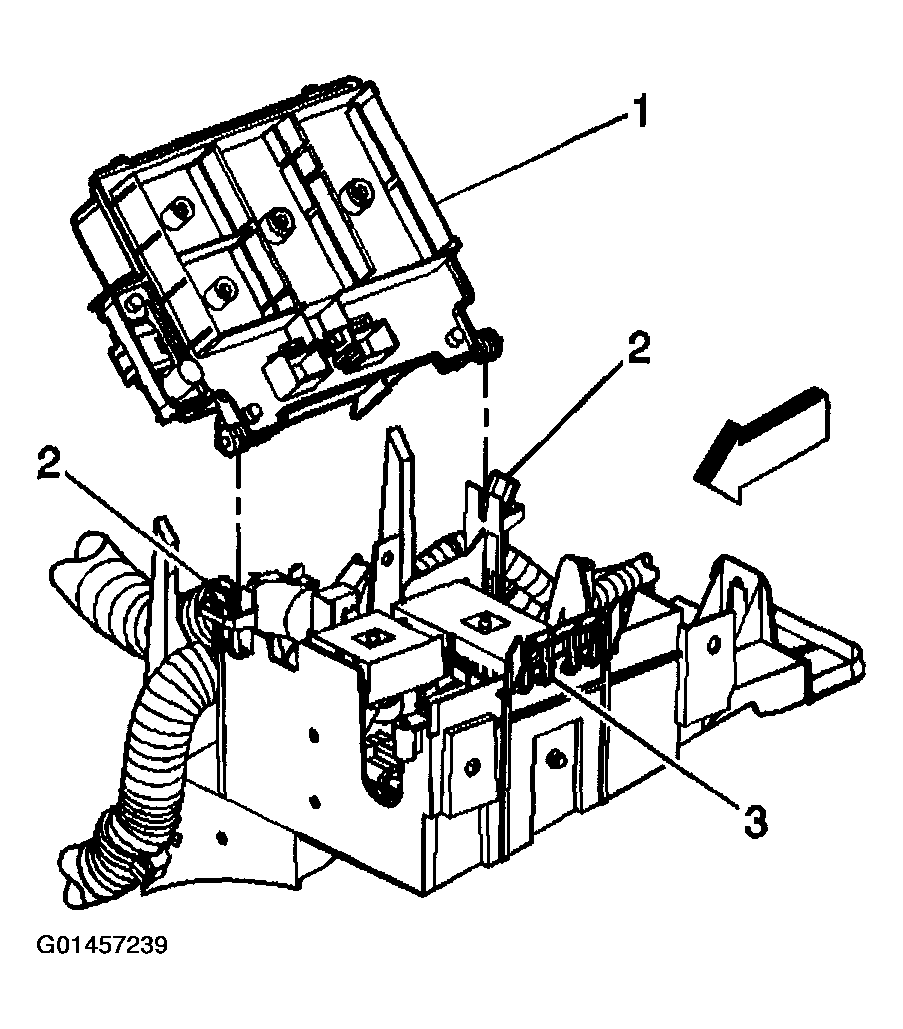

    Fig 2: Aligning Electrical Center Block Stubs In Slots
    G01457239Courtesy of GENERAL MOTORS CORP.
  4. Connect the wire connectors to the lower portion of the electrical center block.
  5. Connect the wire connectors with the bolts to the electrical center block.

    Tighten

    Tighten all connector bolts (1) to 9 N.m (80 Ib. in).

  6. Ensure all wire connectors are securely connected.
  7. Set the electrical center block in its resting position till the tabs (3) locks in place.

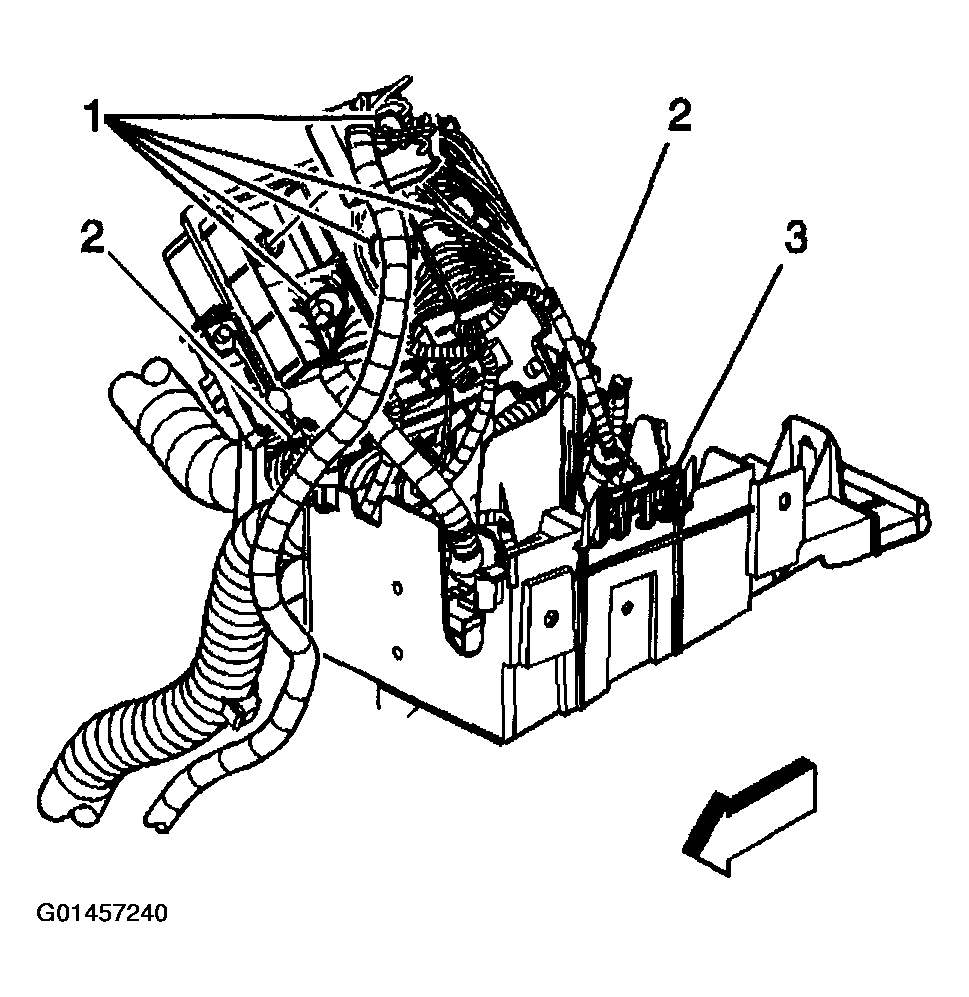

    Fig 3: Setting Electrical Center Block In Its Resting Position Till Tabs Locks In Place
    G01457240Courtesy of GENERAL MOTORS CORP.
  8. Install the lower part of the cover (1).
  9. With the cover (2) off, use the fuse location information to install all fuses and relays.
  10. Install the cover.

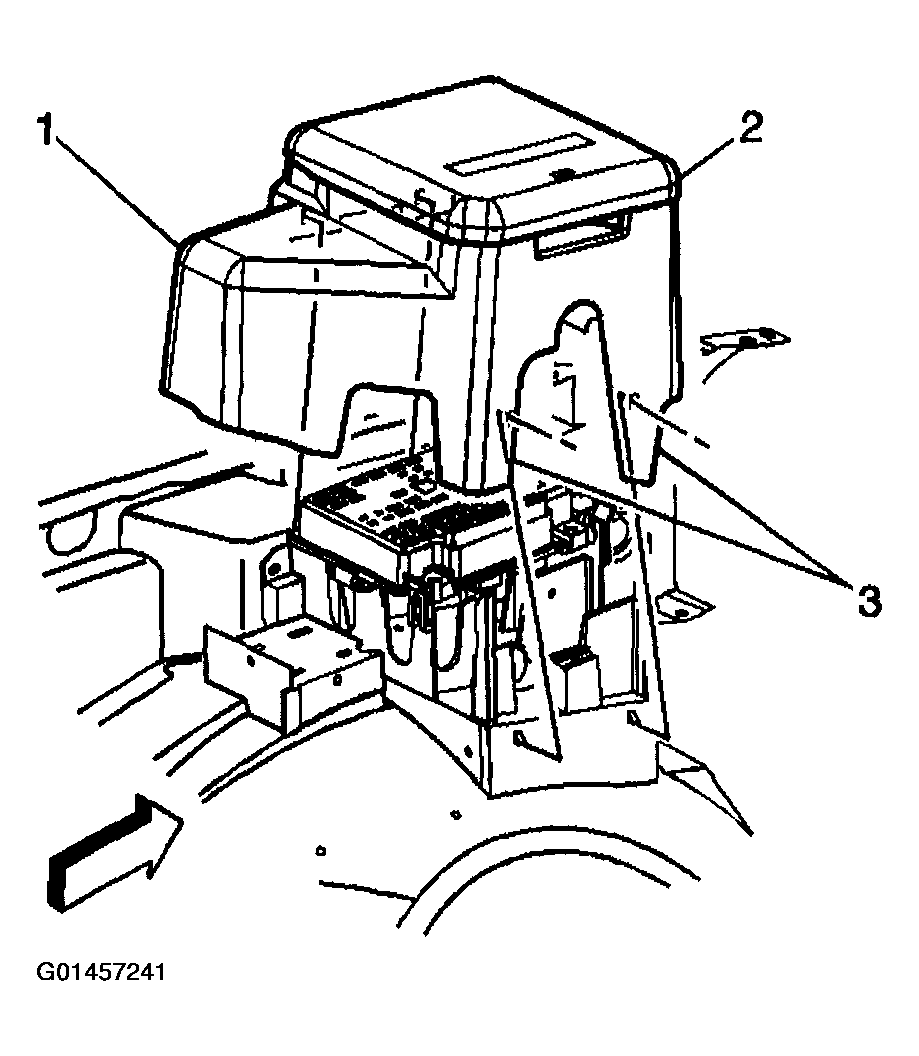

    Fig 4: Installing Lower Part Of Cover
    G01457241Courtesy of GENERAL MOTORS CORP.
  11. Install the fender upper brace.
  12. Install the 4 fender upper brace bolts.

    Tighten

    Tighten the 4 retaining bolts to 25 N.m (18 lb ft).

  13. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  14. Start vehicle and ensure all components function properly.

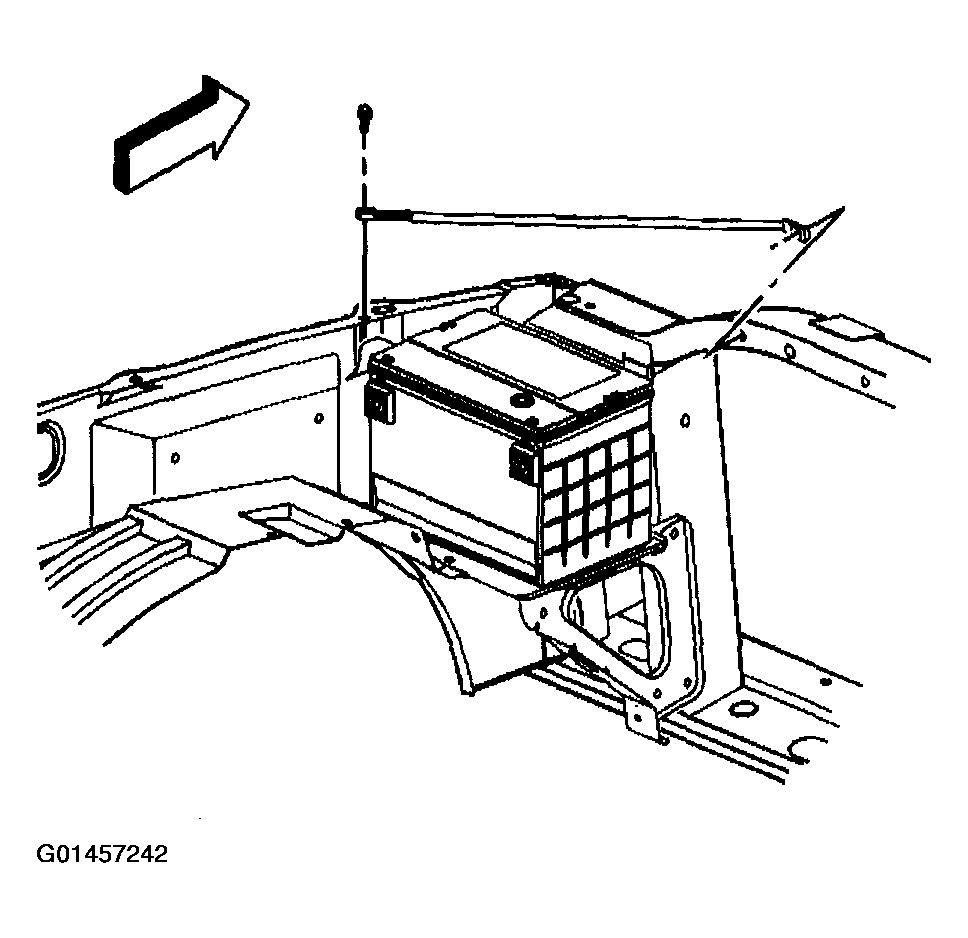

    Fig 5: Installing Fender Upper Brace & Bolts
    G01457242Courtesy of GENERAL MOTORS CORP.
