Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side end panel.
  2. Push in the tabs in order to remove the fuse block.
  3. Pull out the fuse block out of the I/P in order to remove the retaining bolt.
  4. Loosen the bolt.
  5. Insert a screw driver between the wire harness block and fuse block in order to separate.
  6. Separate the fuse block from the I/P harness block.
  7. Remove the I/P wiring harness block from the vehicle.

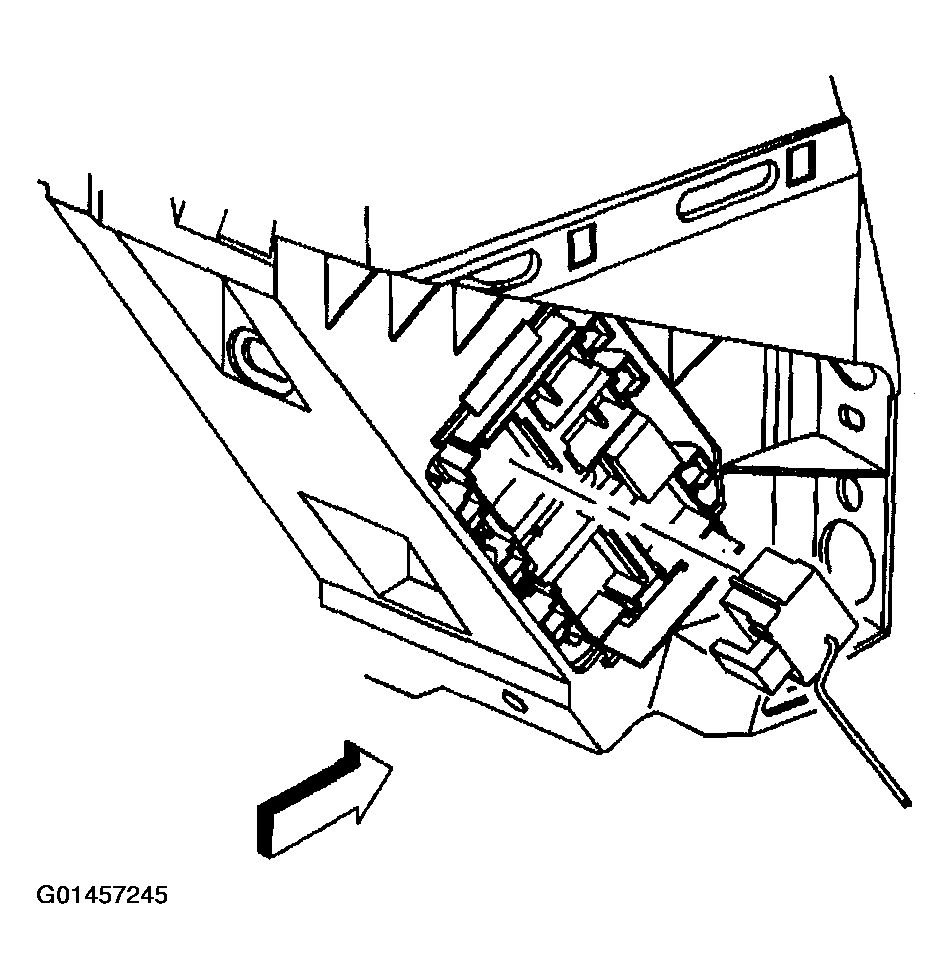

    Fig 1: Separating Fuse Block From I/P Harness Block
    G01457245Courtesy of GENERAL MOTORS CORP.
