Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side end panel.
  2. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gages and Console.
  3. Disconnect all the wiring connectors from the fuse block.
  4. Remove all the fuses.
  5. Remove the turn signal relay from the back of the fuse block.
  6. From behind the fuse block, remove the retaining bolt.
  7. Insert a screw driver between the fuse block and the wire harness block to separate.

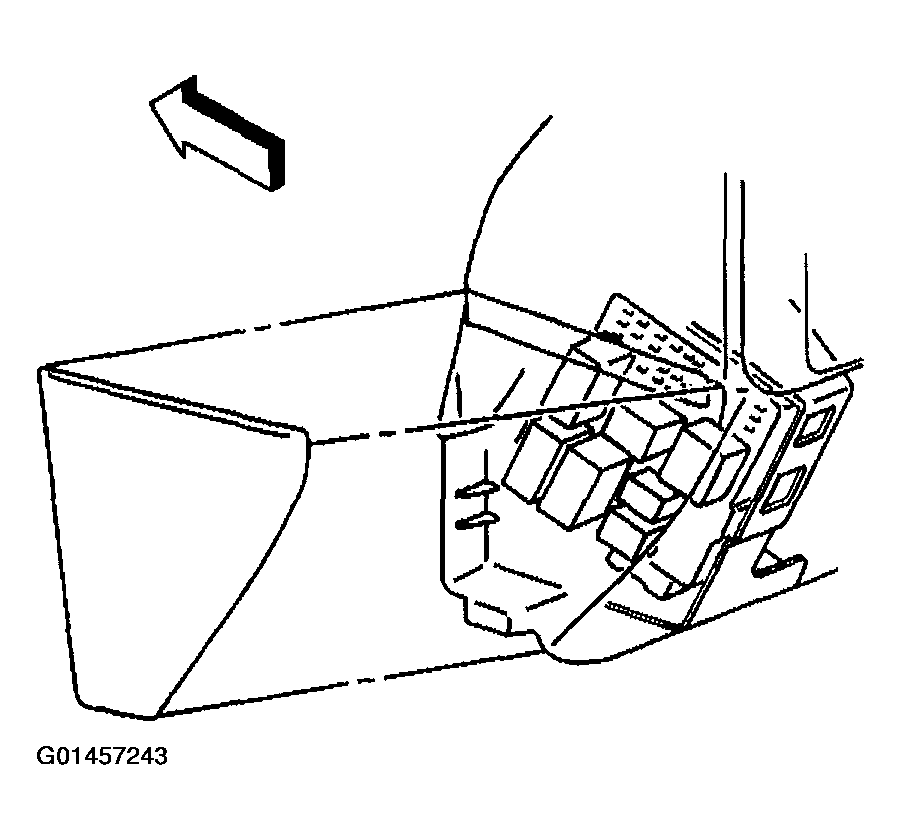

    Fig 1: Removing Left Side End Panel
    G01457243Courtesy of GENERAL MOTORS CORP.
  8. Push on the retainers in order to remove the fuse block.
  9. Remove the fuse block from the vehicle.
