Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover retaining nut.
  2. Remove the cover by pushing in the tabs.
  3. Remove the harness from the front of the junction block.

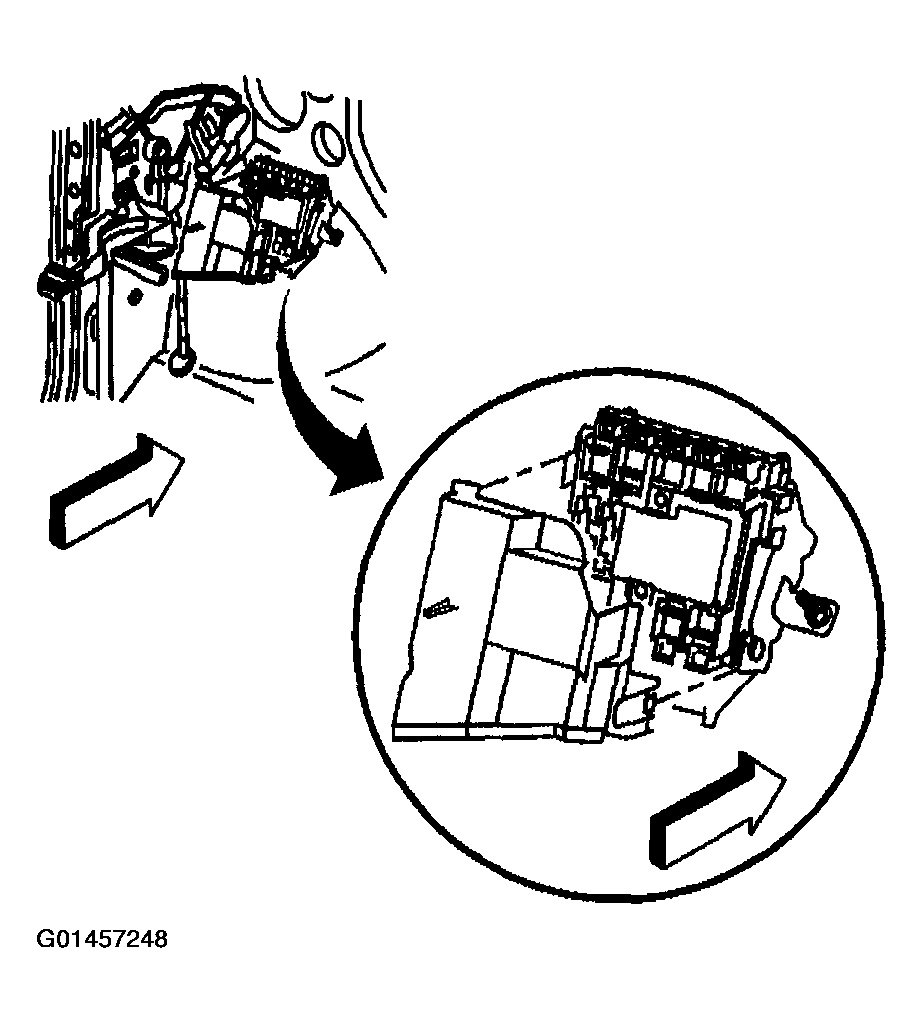

    Fig 1: Removing Harness From Front Of Junction Block
    G01457248Courtesy of GENERAL MOTORS CORP.
  4. Remove the junction block from the bracket by pressing to release the tabs.
  5. Remove the junction block in order to gain access to the rear of the block to remove the retaining bolts.
  6. Remove the retaining bolts.
  7. Separate the wire harness block from the junction block by inserting a screw driver in between.
  8. Remove the junction block from the vehicle.

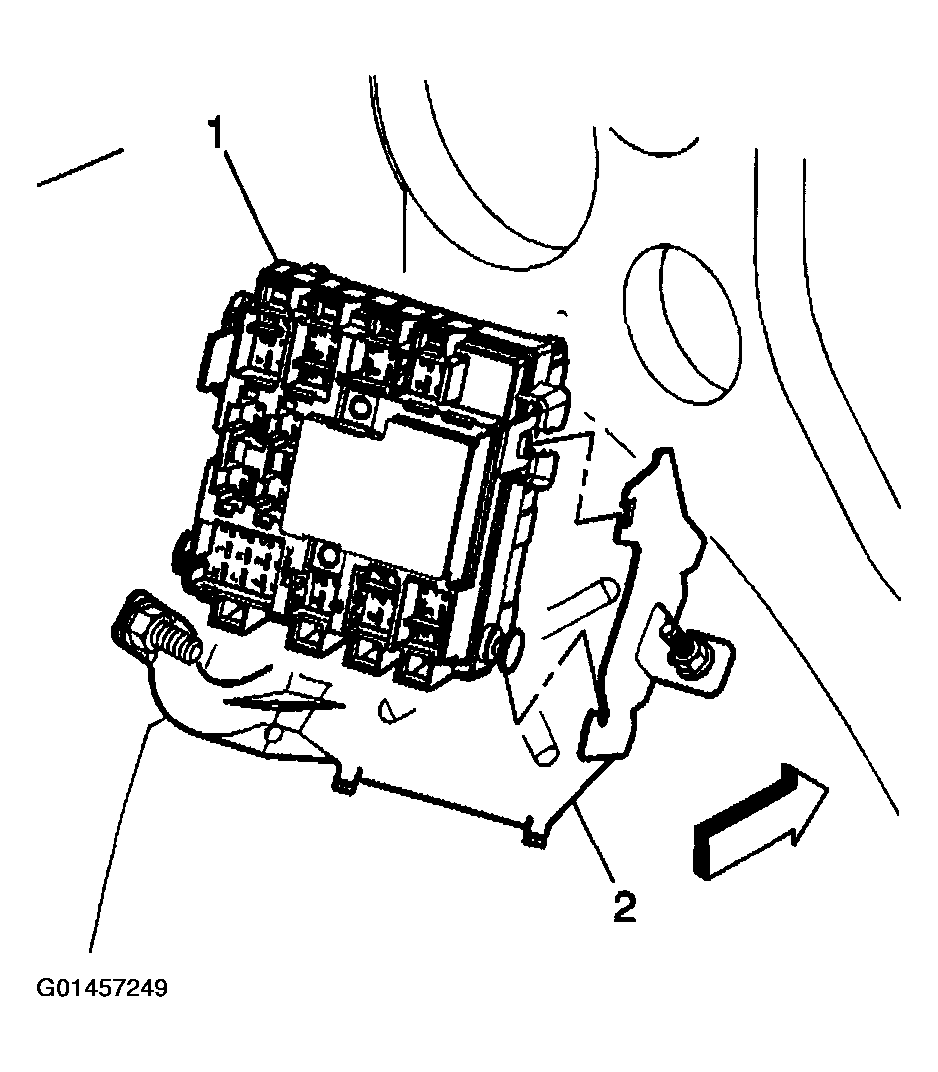

    Fig 2: Removing Junction Block From Vehicle
    G01457249Courtesy of GENERAL MOTORS CORP.
