Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wire harness block to the junction block.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  3. Install the junction block to the bracket.
  4. Push on the top part until it clicks in place.
  5. Connect the harness to the front of the junction block.

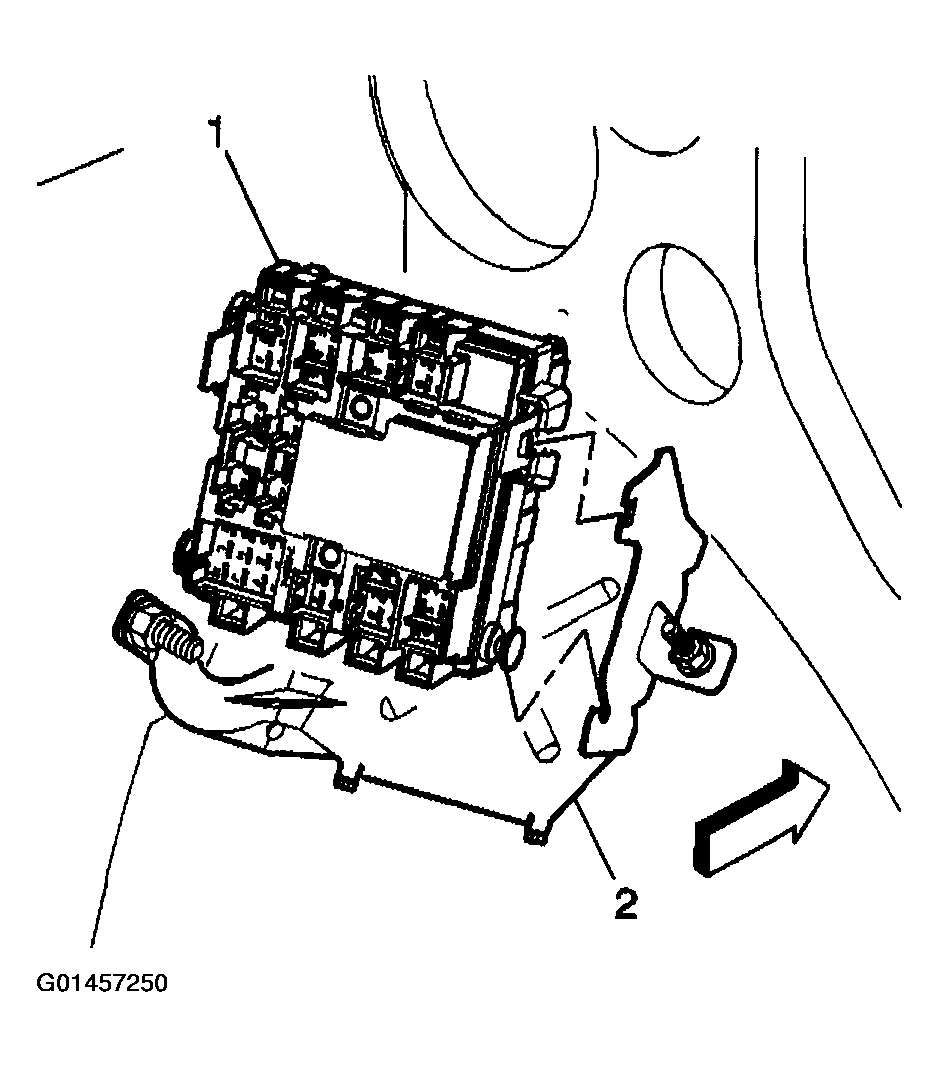

    Fig 1: Installing Junction Block From Vehicle
    G01457250Courtesy of GENERAL MOTORS CORP.
  6. Install the cover to the junction block until it clicks in place.
  7. Hand tighten the retaining nut until seated.

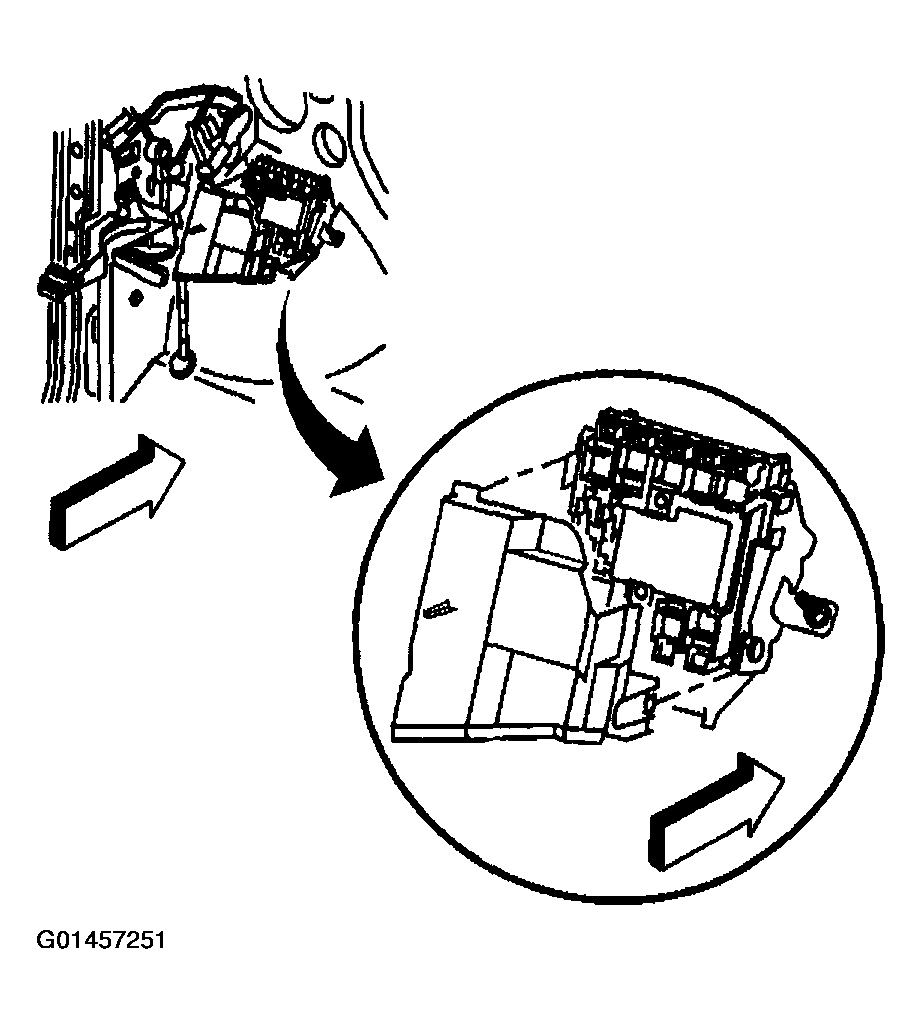

    Fig 2: Installing Harness To Front Of Junction Block
    G01457251Courtesy of GENERAL MOTORS CORP.
