Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering knuckle (2) to the vehicle.
  2. Install the upper ball joint. Refer to Upper Ball Joint Replacement .
  3. Install the lower ball joint. Refer to Lower Ball Joint Replacement .

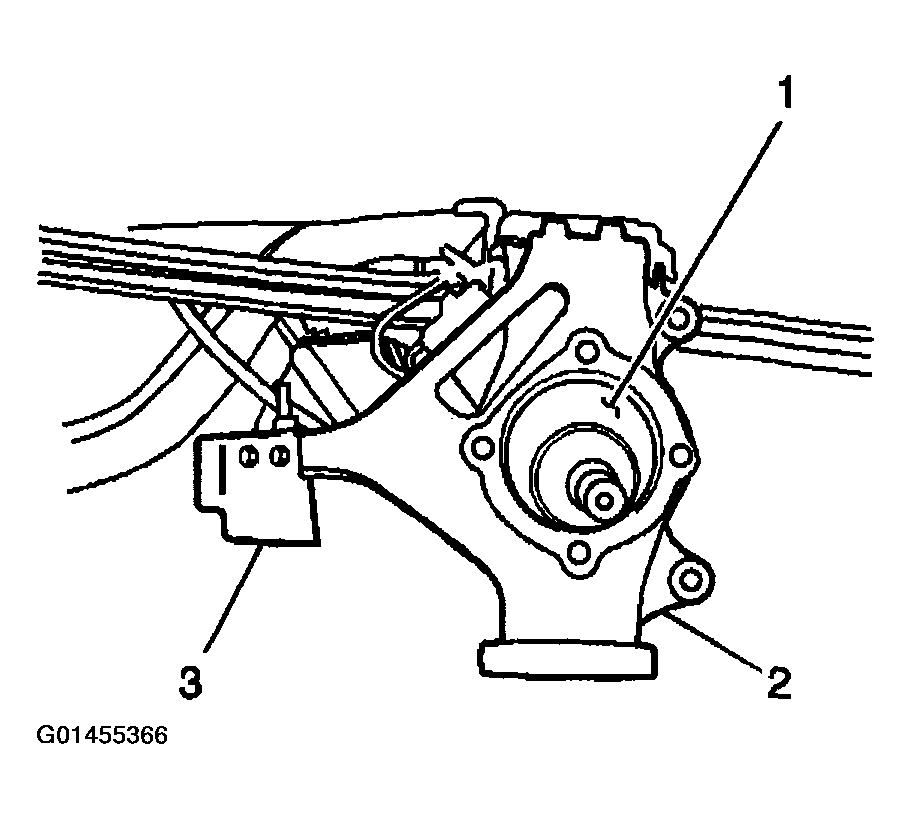

    Fig 1: Installing Steering Knuckle
    G01455366Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the park brake cable retaining bolt (3) to the steering knuckle.

    Tighten

    Tighten the bolt to 65 N.m (48 lb ft).

  5. Install the wheel hub and bearing. Refer to Wheel Hub and Bearing Replacement .

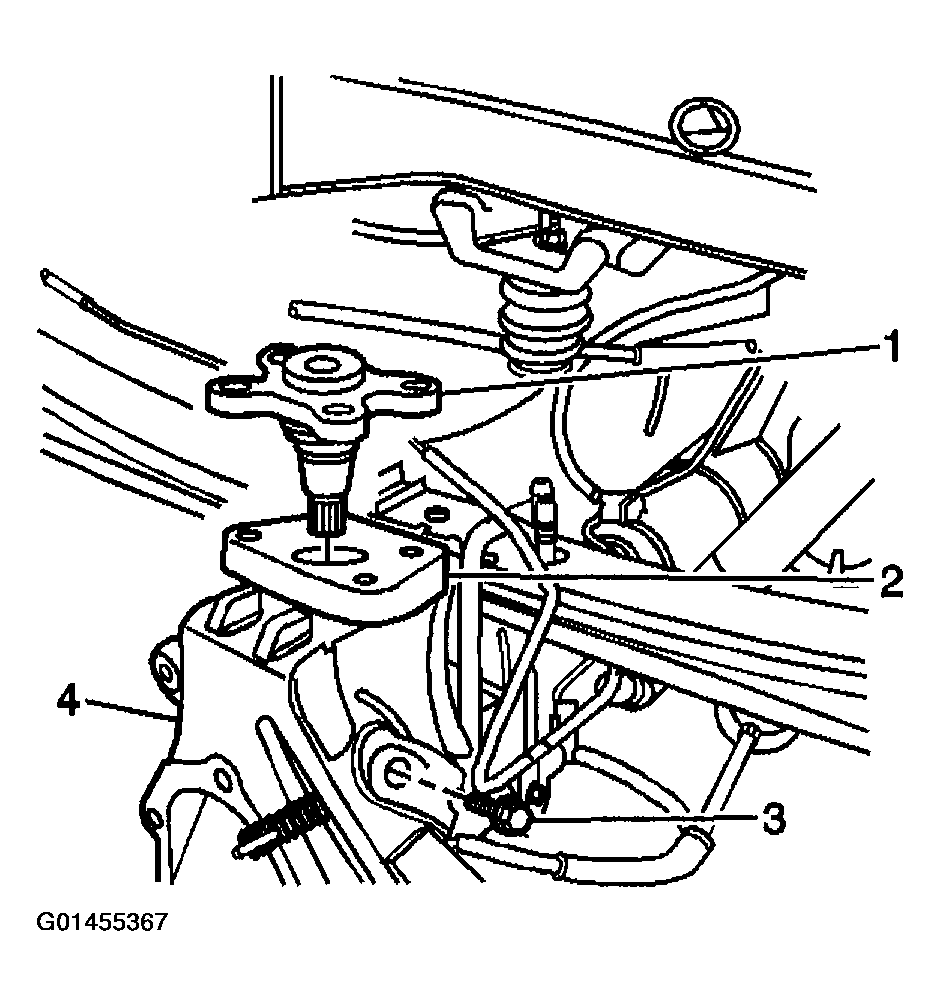

    Fig 2: Installing Park Brake Cable Retaining Bolt To Steering Knuckle
    G01455367Courtesy of GENERAL MOTORS CORP.
  6. Install the outer tie rod retaining nut to the steering knuckle.

    Tighten

    Tighten the nut to 55 N.m (40 lb ft).

  7. Install the outer tie rod retaining bracket (2).

    Tighten

    Tighten the bracket to 65 N.m (48 lb ft).

  8. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  9. Lower the vehicle.
  10. Perform a four wheel alignment. Refer to MEASURING WHEEL ALIGNMENT (WITH REAR WHEEL STEERING) or MEASURING WHEEL ALIGNMENT (WITHOUT REAR WHEEL STEERING) in Wheel Alignment.

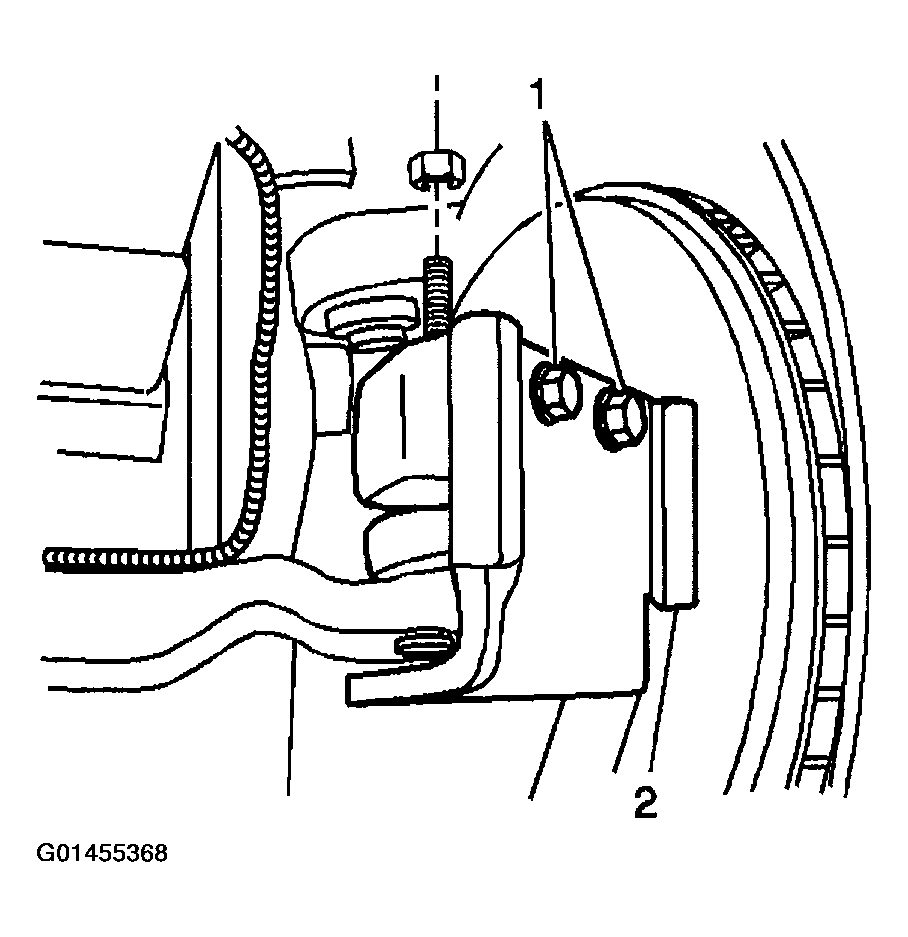

    Fig 3: Installing Outer Tie Rod Retaining Nut & Bracket
    G01455368Courtesy of GENERAL MOTORS CORP.
