Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the wheel hub and bearing from the vehicle. Refer to Wheel Hub and Bearing Replacement .
  4. Using the J 43631  (1), remove the wheel stud (2) from the wheel hub.

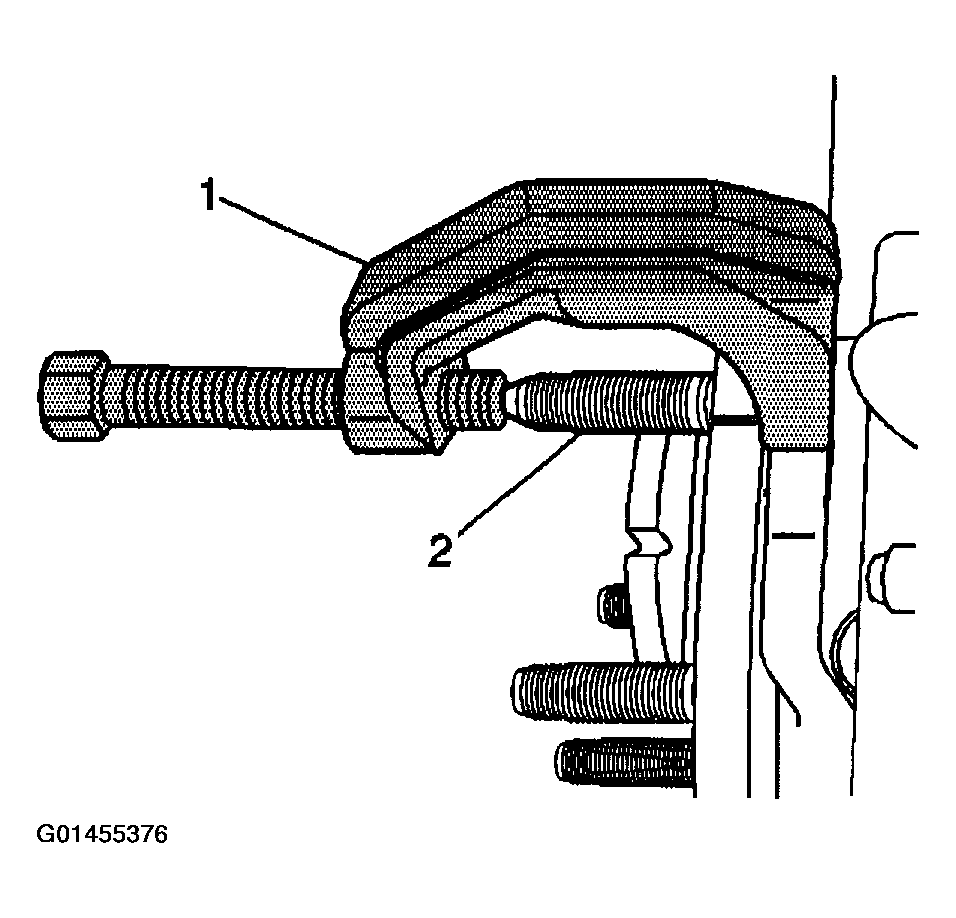

    Fig 1: Removing Wheel Stud From Wheel Hub Using J 43631
    G01455376Courtesy of GENERAL MOTORS CORP.
