Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new wheel stud to the wheel hub.
  2. Using the J 43631  (1), install the wheel stud (2) to the wheel hub.
  3. Install the wheel hub and bearing to the vehicle. Refer to Wheel Hub and Bearing Replacement .
  4. Install the tire and wheel to the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  5. Lower the vehicle.

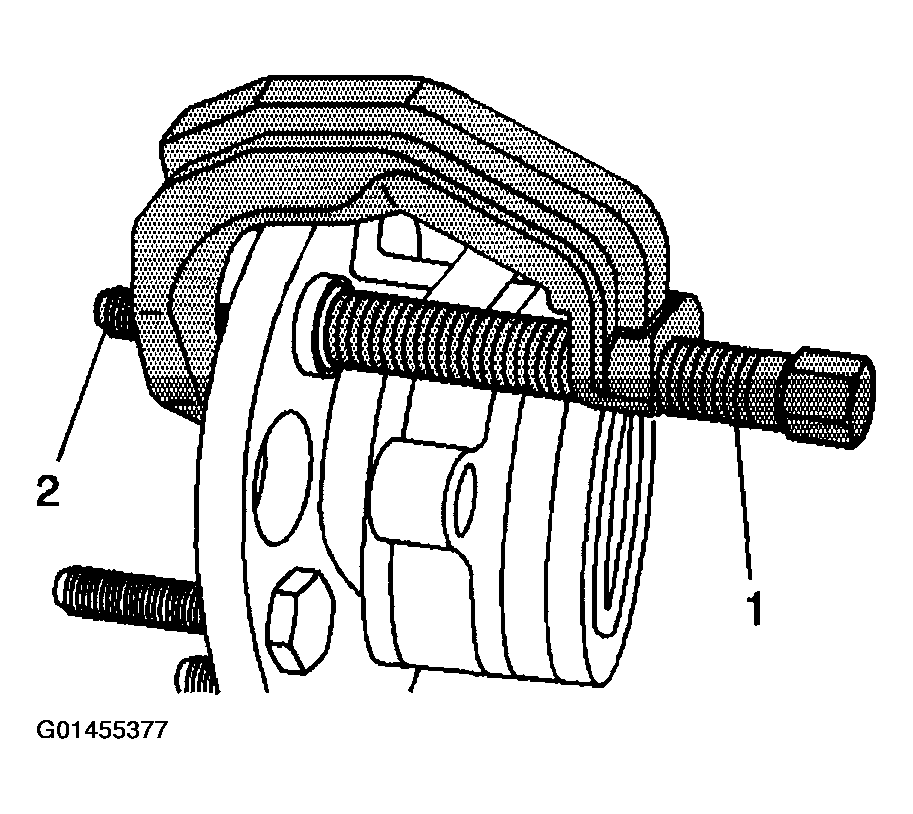

    Fig 1: Installing Wheel Stud To Wheel Hub Using J 43631
    G01455377Courtesy of GENERAL MOTORS CORP.
