Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When lifting the vehicle do not allow the jack to touch the rear steering gear. If the jack touches the rear steering gear you may damage the gear or the rack and pinion boots. If the boots are damaged replace the rack and pinion boot.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the rack and pinion boot from the steering gear. Refer to Rack and Pinion Boot Replacement .

    Important:  The inner tie rod support clamp has right hand threads. The inner tie rod support nut has left hand threads. To remove the support clamp turn the clamp counterclockwise.

  4. Using the J 44665-1 (1)  and J 44665-2  (2) remove the inner tie rod support clamp.

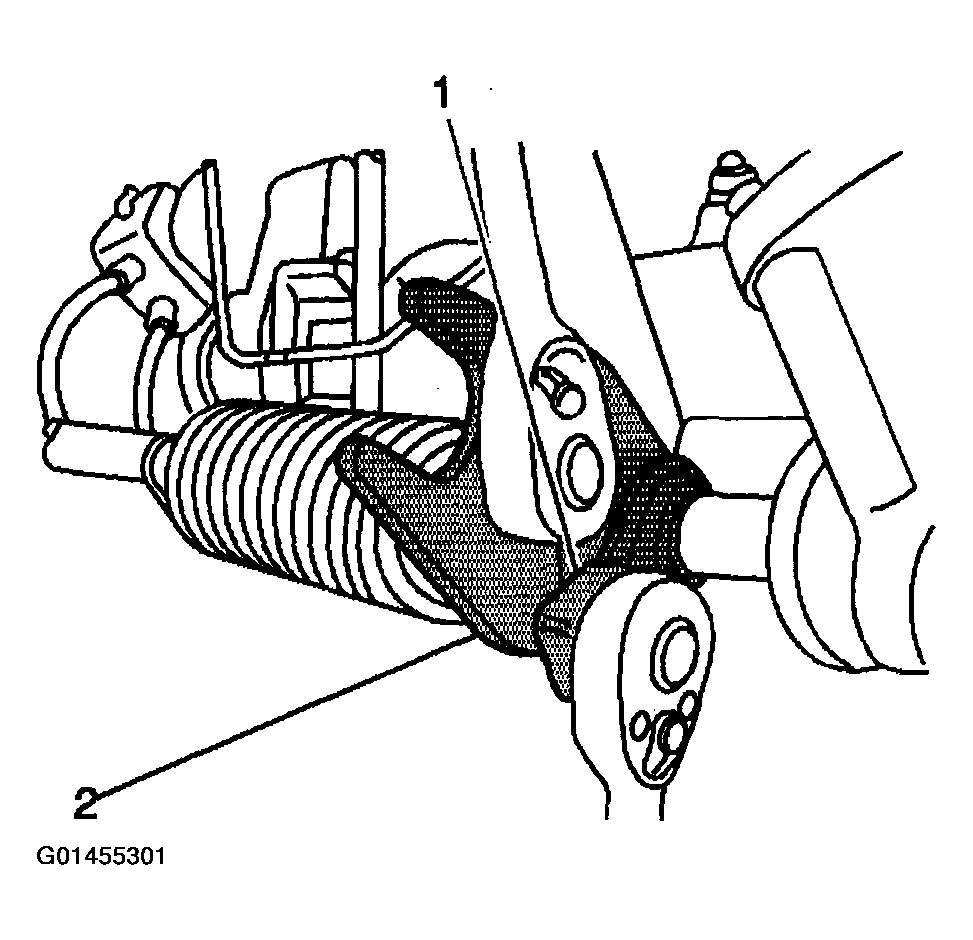

    Fig 1: Removing Inner Tie Rod Support Clam Using J 44665-1 & J 44665-2
    G01455301Courtesy of GENERAL MOTORS CORP.
  5. Remove the inner tie rod (1) from the steering gear using the J 44665-2  (2).

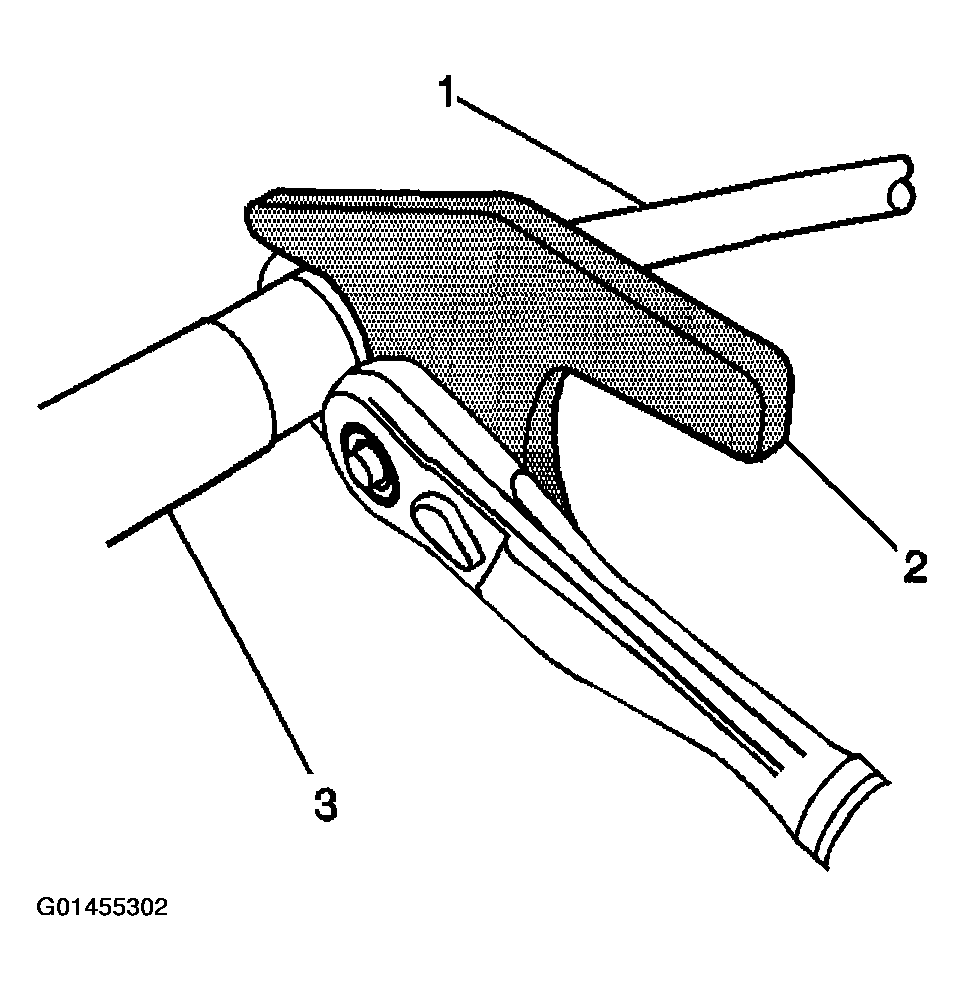

    Fig 2: Removing Inner Tie Rod From Steering Gear Using J 44665-2
    G01455302Courtesy of GENERAL MOTORS CORP.
