Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dash trim bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
  2. Grasp the rear wheel steering mode switch housing (2) and pull outward to remove the switch assembly.
  3. Disconnect the electrical connector (3) from the rear wheel steering mode switch.
  4. Remove the rear wheel steering mode switch assembly (1) from the vehicle.

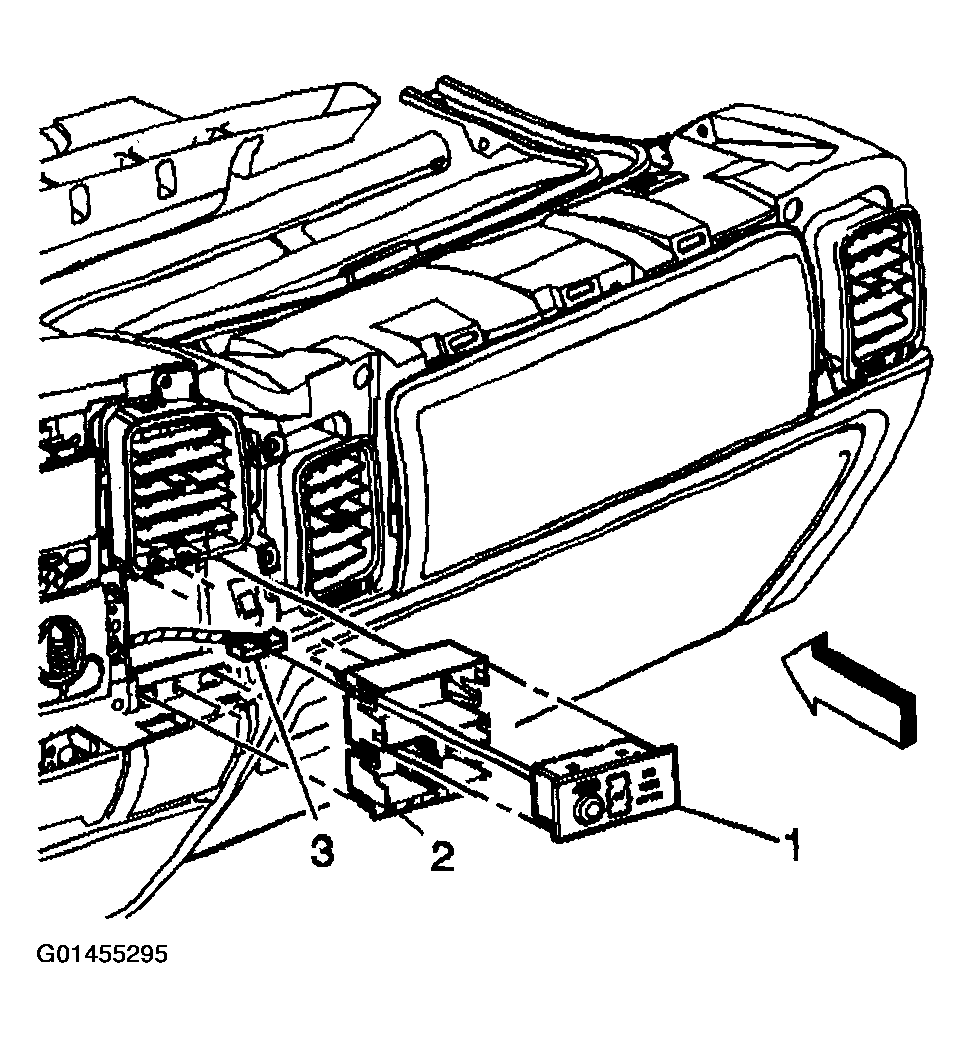

    Fig 1: Removing Rear Wheel Steering Mode Switch Assembly
    G01455295Courtesy of GENERAL MOTORS CORP.
