Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reconnect the rear wheel steering mode switch (3) electrical connectors.
  2. Install the rear wheel steering mode switch (1) into the dash.
  3. Reinstall the dash trim bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.

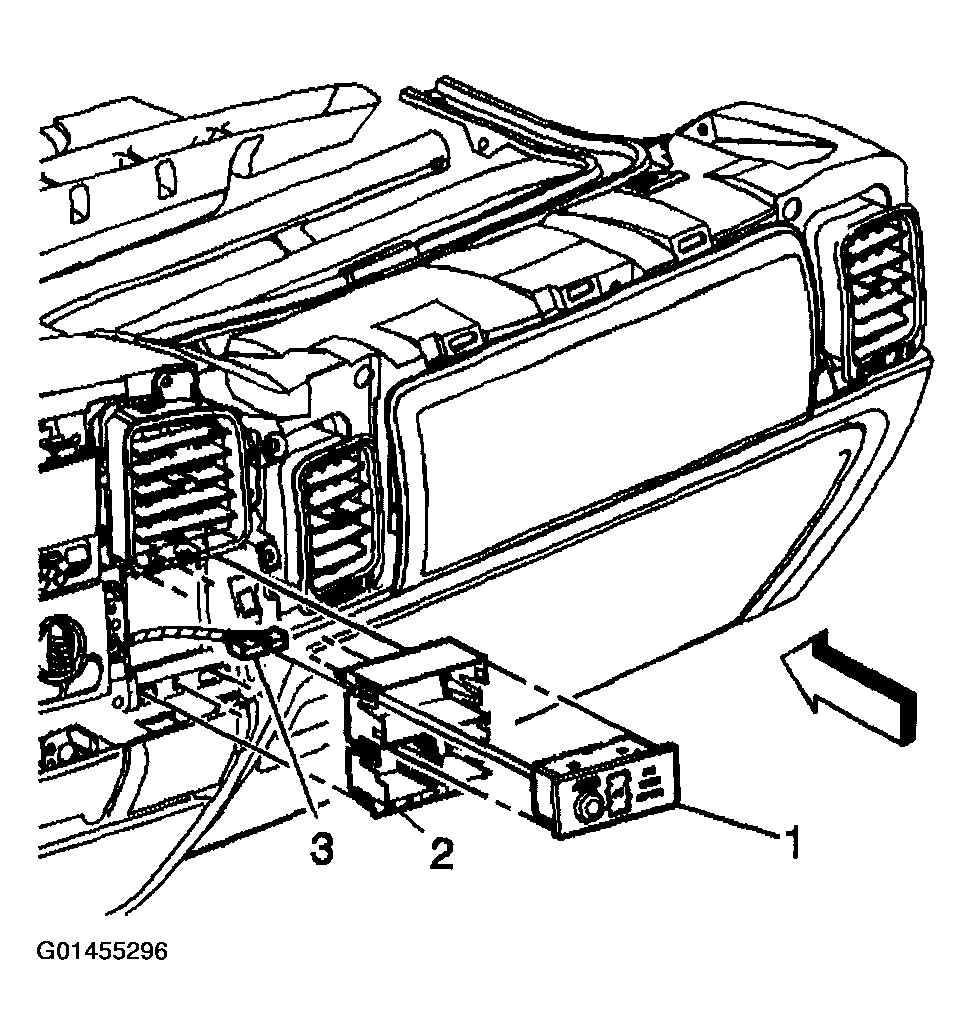

    Fig 1: Installing Rear Wheel Steering Mode Switch Assembly
    G01455296Courtesy of GENERAL MOTORS CORP.
