Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower ball joint (2) to the vehicle.

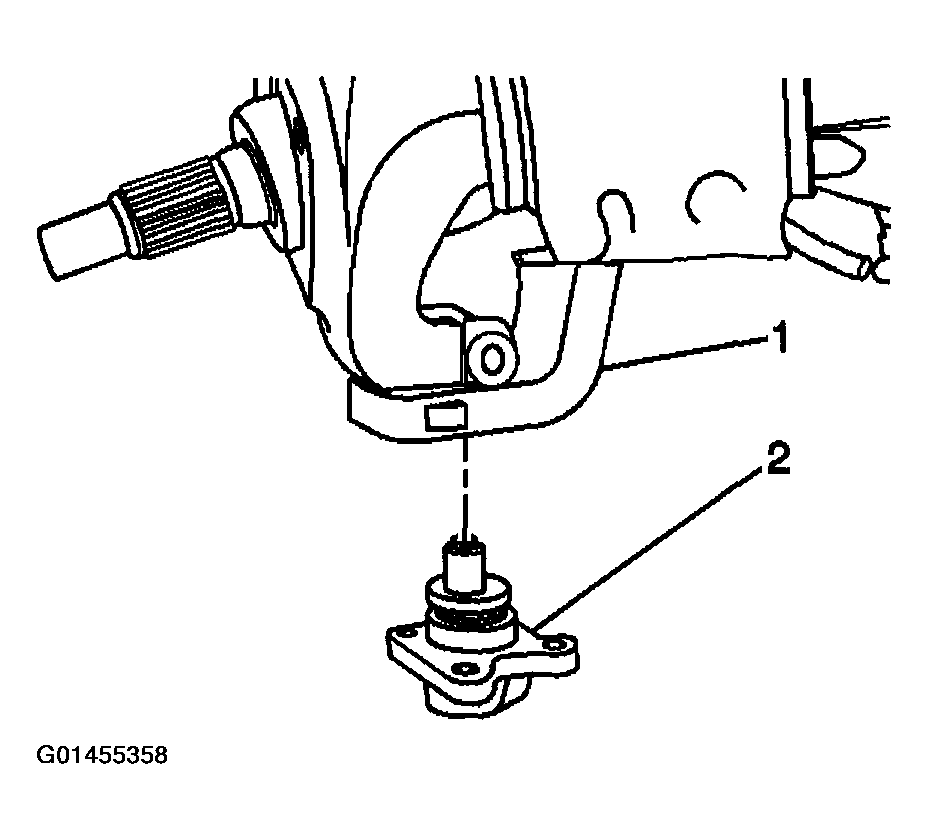

    Fig 1: Installing Lower Ball Joint
    G01455358Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts (2) retaining the lower ball joint (3) to the steering knuckle.

    Tighten

    Tighten the bolts to 110 N.m (81 lb ft).

  3. Install the lower ball joint pinch bolt (1).

    Tighten

    Tighten the bolt to 230 N.m (169 lb ft).

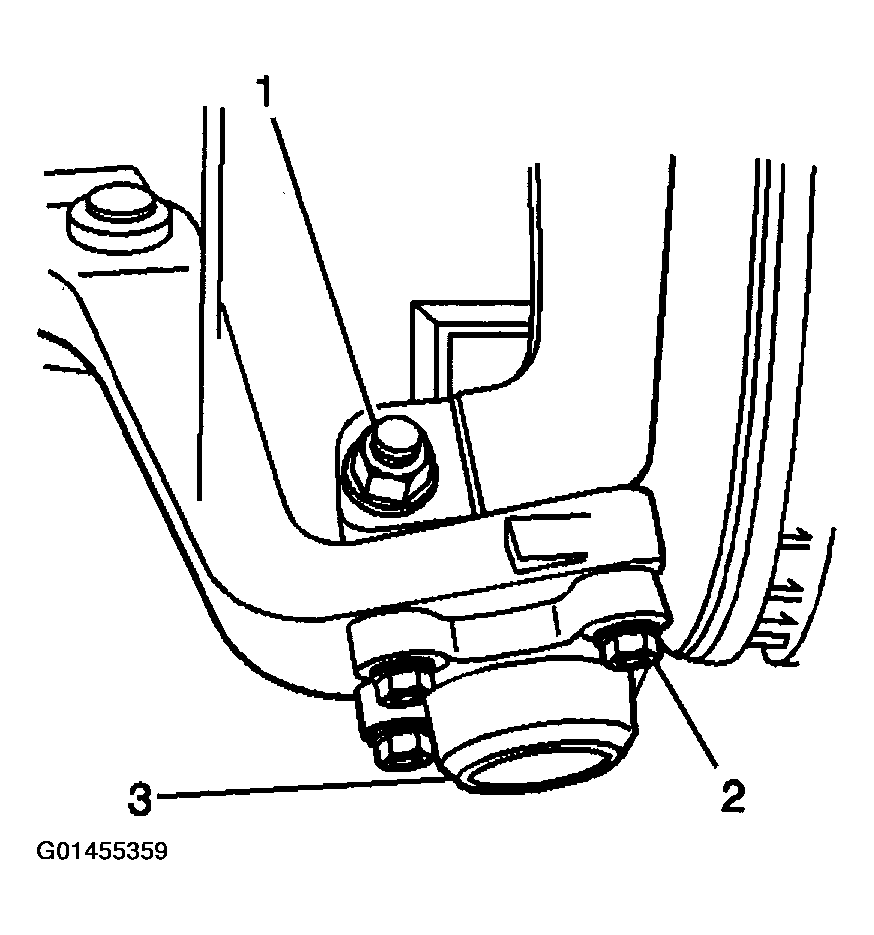

    Fig 2: Installing Bolt & Pinch Bolt Retaining The Lower Ball Joint
    G01455359Courtesy of GENERAL MOTORS CORP.
  4. Install the snap ring (2) to the lower ball joint.
    Fig 3: Installing Snap Ring From Ball Joint Stud
    G01455360Courtesy of GENERAL MOTORS CORP.
  5. Install the bolt (8) and nut (2) retaining the bracket to the axle.

    Tighten

    Tighten the retaining bolt and nut to 25 N.m (18 lb ft).

  6. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  7. Lower the vehicle.
  8. Perform a four wheel alignment. Refer to MEASURING WHEEL ALIGNMENT (WITH REAR WHEEL STEERING) or MEASURING WHEEL ALIGNMENT (WITHOUT REAR WHEEL STEERING) in Wheel Alignment.

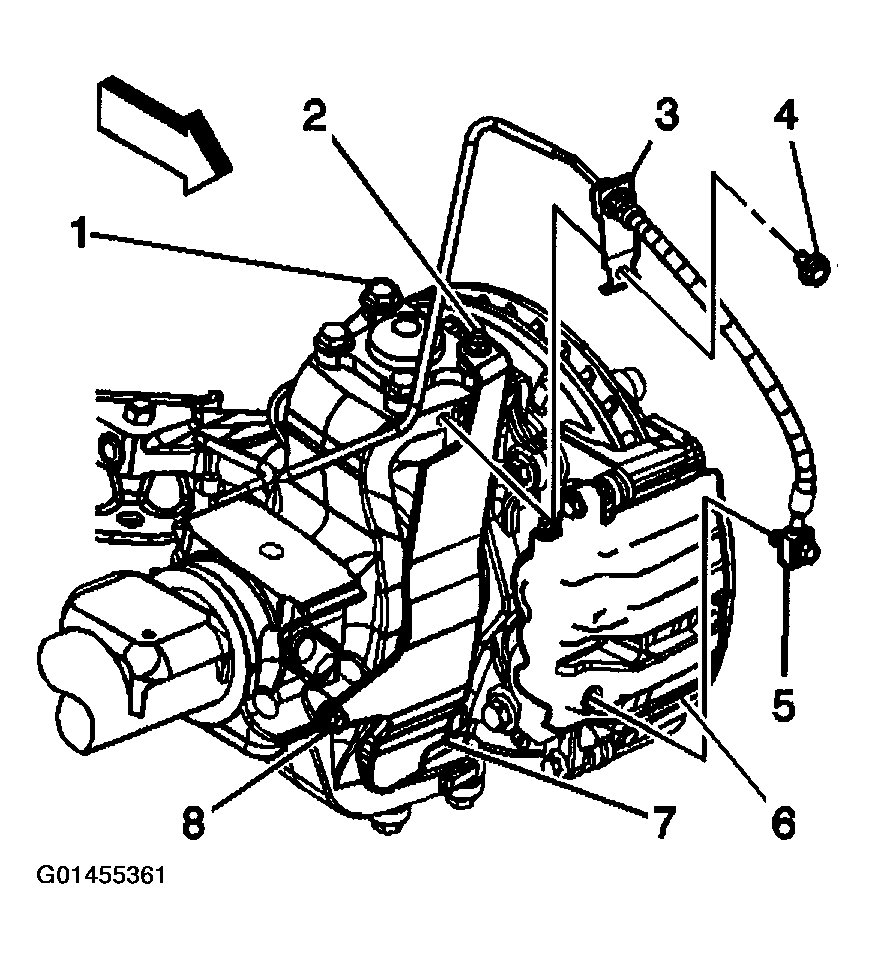

    Fig 4: Installing Bolt & Nut Retaining Bracket
    G01455361Courtesy of GENERAL MOTORS CORP.
