Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Any additional codes displayed with DTC C0550 should be diagnosed and repaired first.
The rear wheel steering control module tests for multiple internal malfunctions and will store a DTC C0550 if one or more internal malfunctions are detected. Therefore, depending on which malfunction was detected, and what internal circuitry was affected, this DTC may cause various symptoms.
Any condition resulting in the sensor supply voltage being pulled high or low could result in an erroneous DTC C0550.
A fault in the battery positive voltage circuit from the 125A MEGA fuse can result in an erroneous DTC C0550.

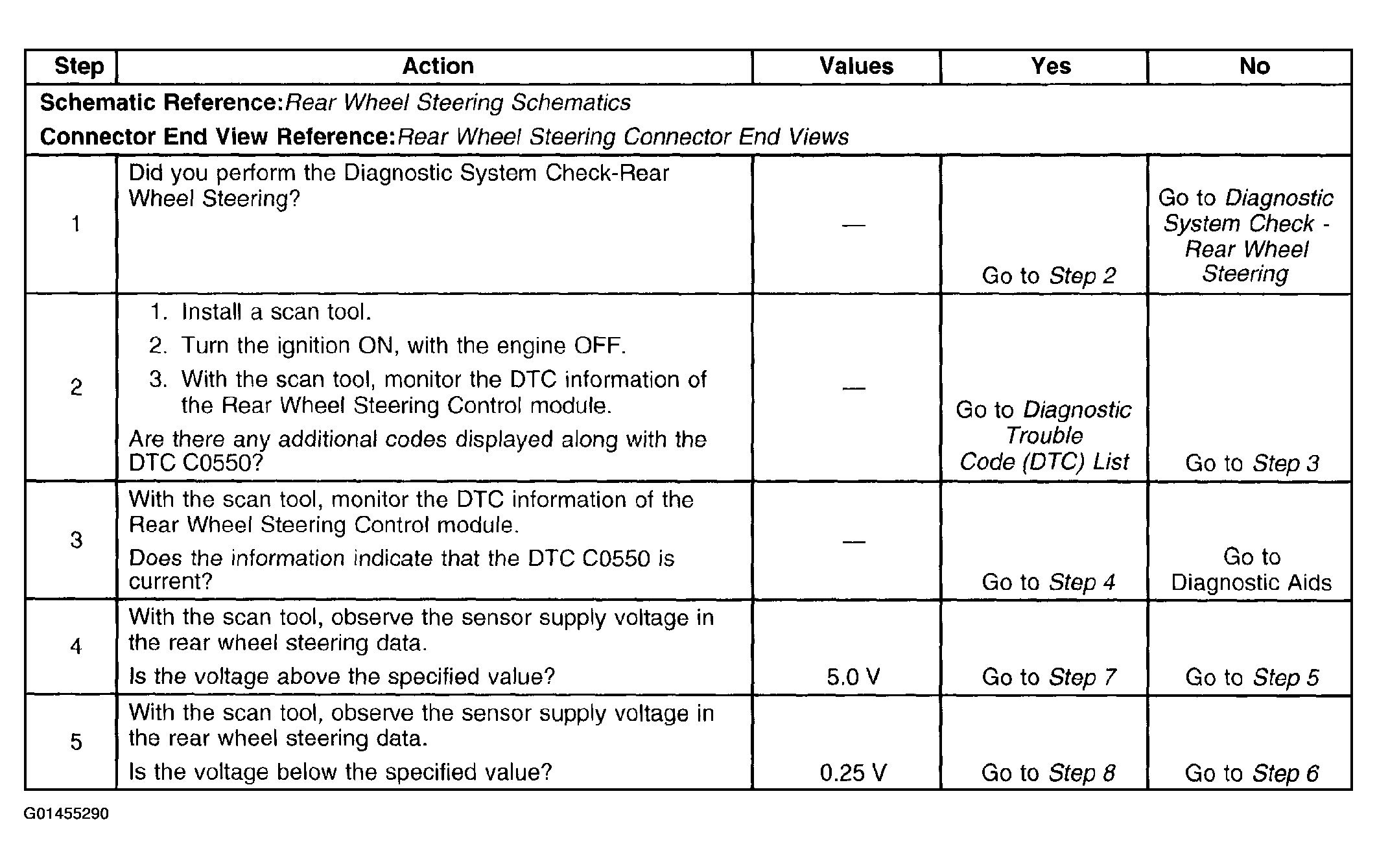

Fig 1: DTC C0550 (Step 1-5)
Courtesy of GENERAL MOTORS CORP.

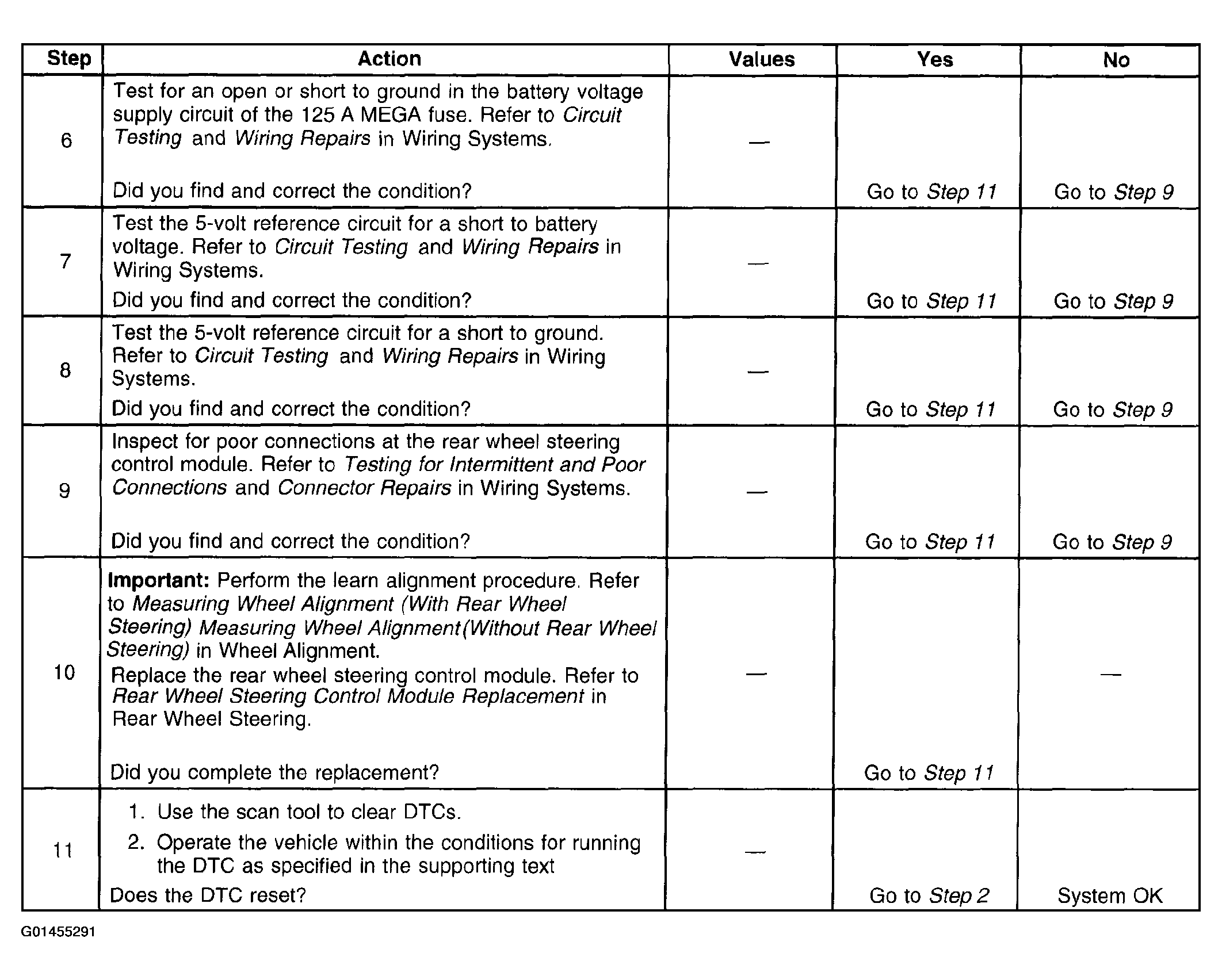

Fig 2: DTC C0550 (Step 6-11)
Courtesy of GENERAL MOTORS CORP.
